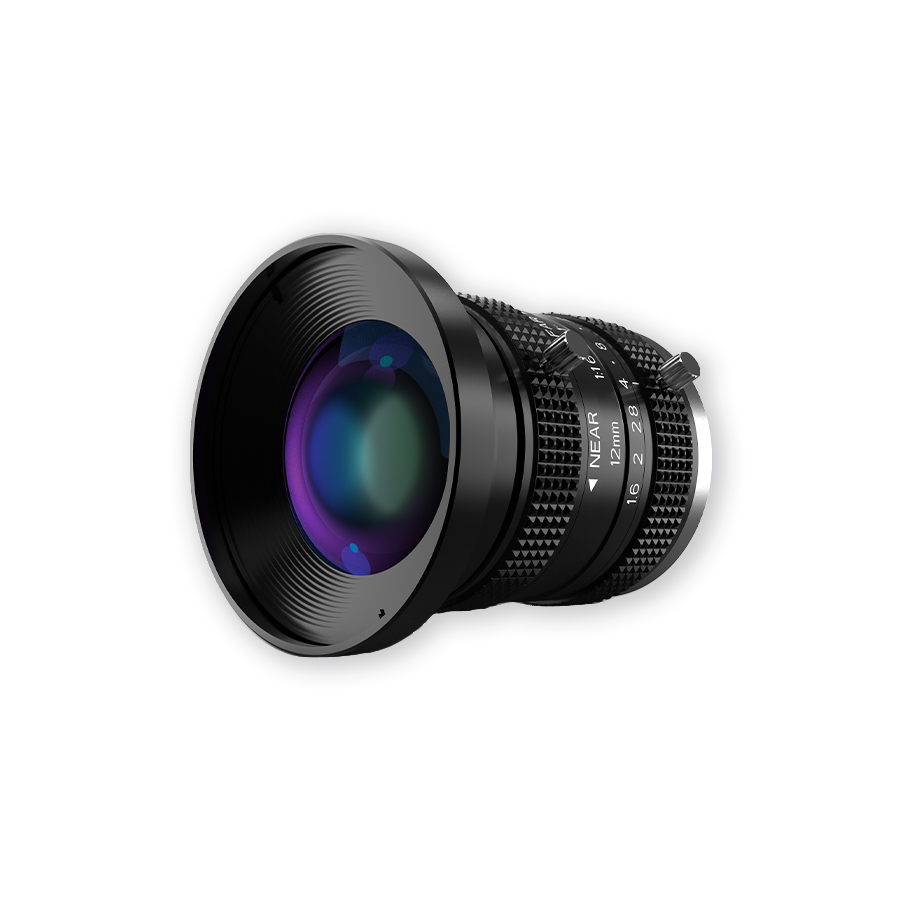

12mm 1" 5M Fixed Focal Length Lens

Price Option

Product No. 600027

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 12mm

F/# 1.6

Max. sensor size 1"

Mount C

Resolution 5MP

Working Distance 0.2m～∞

Filter Thread M52×0.75mm

FOV 68.84°×57.12°×44.08°

Distrotion -2.88%@y=8.0mm

Weight 183g

No.	Item		Specifications
1	Max. sensor size		1"(16mm)
2	Focal Length		12mm
3	Mount		C-Mount
4	F/#		F1.6-F22
5	Working Distance		0.2m～∞
6	FOV(Diagonal x H xV)	1"	68.84°×57.12°×44.08°
		1/2"	37.15°×29.99°×22.64°
		1/3"	28.16°×22.64°×17.04°
7	Object Size (at the minimum focus distance)	1"	303.142×248.356×175.31mm
		1/2"	146.092×116.946×87.656mm
		1/3"	109.57×87.656×65.742mm
8	BFL（in air）		13.53mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	1"	-2.88%@y=8.0mm
		1/2"	-1.06%@y=4.0mm
		1/3"	-0.63%@y=3.0mm
11	Filter thread		M52×0.75

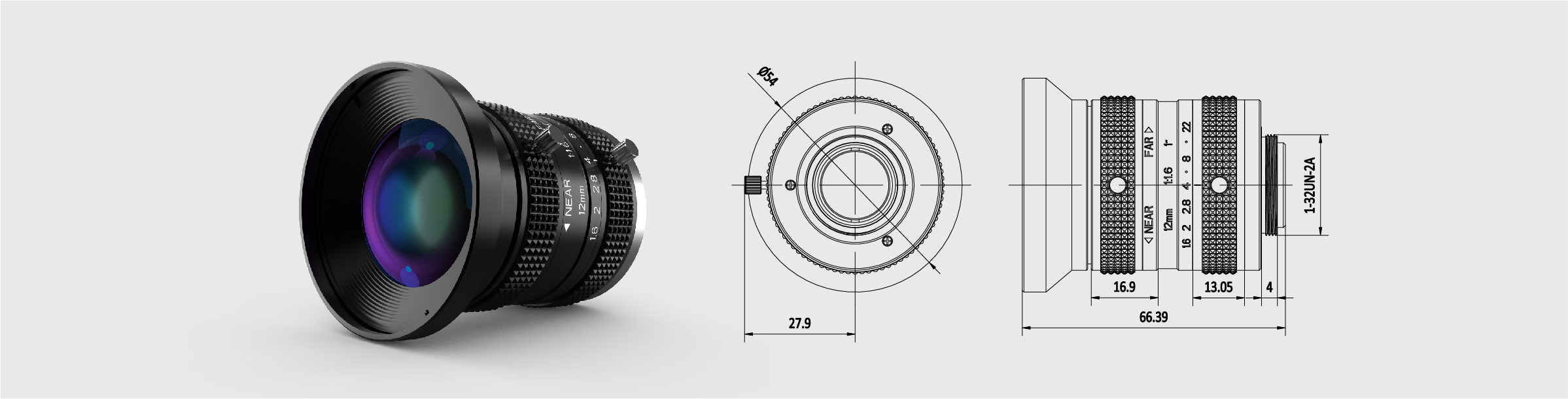

12	Lens Size(W x L)		54.9×66.39mm
13	Weight		183g
14	Work Temperature		-20℃～+60℃
15	Distance of entrance pupil		23.34mm
16	Diameter of entrance pupil		7.52mm
17	Distance of exit pupil		-33.40mm
18	Diameter of exit pupil		20.80mm
19	Total optical length		74.47mm
20	Magnification		-0.055

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
200mm	-0.05476	3.2510	3.3602
250mm	-0.04463	5.0591	5.2724
300mm	-0.03766	7.2557	7.6245
350mm	-0.03258	9.8361	10.4219
400mm	-0.02871	12.7958	13.6704
450mm	-0.02566	16.1302	17.3759
500mm	-0.02319	19.8348	21.5441
550mm	-0.02116	23.9053	26.1812
600mm	-0.01945	28.3373	31.2932
650mm	-0.01800	33.1266	36.8864

Curve Download

16mm 1" 5M Fixed Focal Length Lens

20mm 1" 5M Fixed Focal Length Lens

25mm 1" 5M Fixed Focal Length Lens

12mm 1" 5M Fixed Focal Length Lens No filter thread

1" 5M FA Lens designed with 1" sensor, maximum imaging size up to 16mm. This series lens have high cost performance, focal length covers 12mm,16mm,20mm,25mm,35mm.
