35mm 1" 5M Fixed Focal Length Lens

Price Option

Product No. 600031

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 35mm

F/# 1.4

Max. sensor size 1"

Mount C

Resolution 5MP

Working Distance 0.4m～∞

Filter Thread M39x0.5mm

FOV 25.68°×20.72°×15.62°

Distrotion 0.26%@y=8.0mm

Weight 155g

No.	Item		Specifications
1	Max. sensor size		1"(16mm)
2	Focal Length		35mm
3	Mount		C-Mount
4	F/#		F1.4-F22
5	Working Distance		0.4m～∞
6	FOV(Diagonal x H xV)	1"	25.68°×20.72°×15.62°
		1/2"	13.04°×10.44°×7.79°
		1/3"	9.80°×7.84°×5.88°
7	Object Size (at the minimum focus distance)	1"	176.46×141.64×106.34mm
		1/2"	88.63×70.86×53.24mm
		1/3"	66.46×53.18×39.88mm
8	BFL（in air）		12.82mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	1"	0.26%@y=8mm
		1/2"	-0.07%@y=4.0mm
		1/3"	-0.05%@y=3.0mm
11	Filter thread		M39×0.5mm

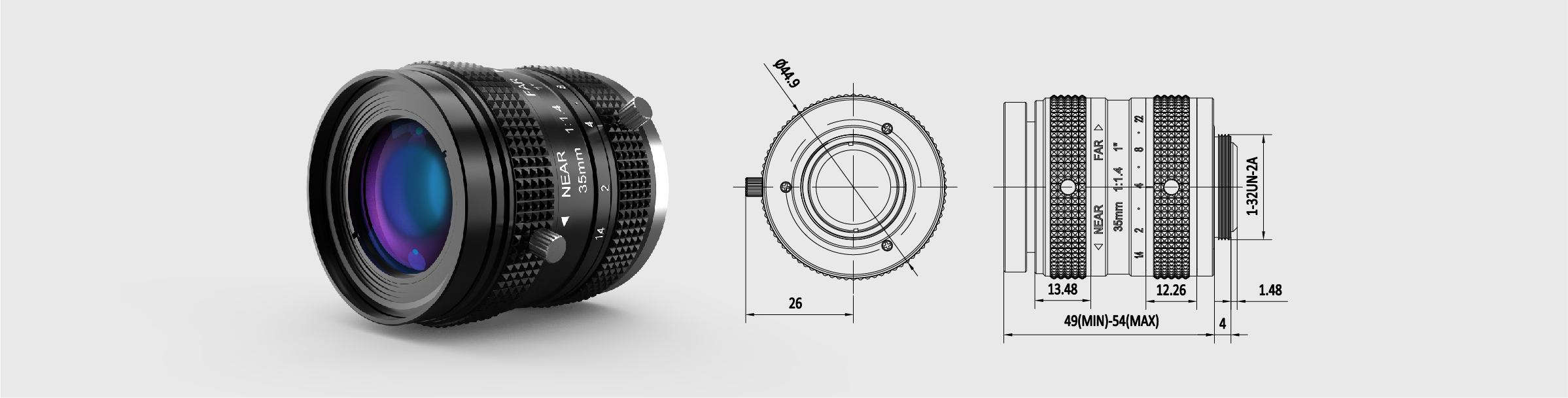

12	Lens Size(W x L)		48.45×59.48mm
13	Weight		155g
14	Work Temperature		-20℃～+60℃
15	Distance of entrance pupil		32.14mm
16	Diameter of entrance pupil		24.17mm
17	Distance of exit pupil		-40.48mm
18	Diameter of exit pupil		27.83mm
19	Total optical length		62.73mm
20	Magnification		-0.090

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
400mm	-0.09029	1.5479	1.5599
450mm	-0.07992	1.9581	1.9752
500mm	-0.07170	2.4162	2.4398
550mm	-0.06504	2.9222	2.9536
600mm	-0.05947	3.4759	3.5167
650mm	-0.05479	4.0774	4.1292
700mm	-0.05082	4.7266	4.7913
750mm	-0.04737	5.4233	5.5029
800mm	-0.04437	6.1676	6.2641
850mm	-0.04172	6.9592	7.0751

Curve Download

12mm 1" 5M Fixed Focal Length Lens

16mm 1" 5M Fixed Focal Length Lens

20mm 1" 5M Fixed Focal Length Lens

12mm 1" 5M Fixed Focal Length Lens No filter thread

1" 5M FA Lens designed with 1" sensor, maximum imaging size up to 16mm. This series lens have high cost performance, focal length covers 12mm,16mm,20mm,25mm,35mm.
