Motorized Nano Rotation Stages Stage Size=150mm Travel=350Deg





Share

WeChat

Scan and add Wechat

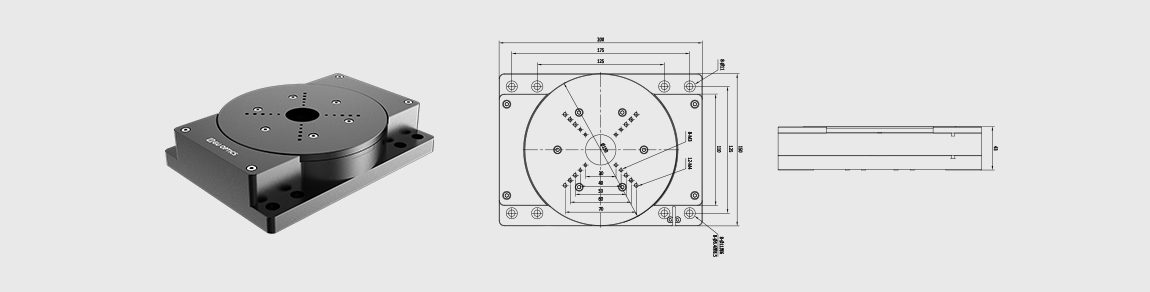

Motorized Nano Rotation Stages Stage Size=150mm Travel=350Deg

Price Option Please Consult

Product No. 526902

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

Stage Diameter. 150mm

Travel 350Deg

Motor Drive 2×M302V

Max Speed 90 Deg/sec

Max load 5kg

Min Step 0.0001 Deg

Repositioning Accuracy 0.0005 Deg

Position Sensor Magnescale

Body Maerial Aluminium Alloy, with Anodizing Treatment

Motorized Nano Goniometers Stages Height of Rotation Center=126mm Travel=±7.5mm

Motorized Nano Rotation Stages Stage Size=70mm Travel=360Deg

Motorized Nano Rotation Stages Stage Size=100mm Travel=350Deg

Motorized Nano Vertical Stages Travel=10mm Motor Drive:2×M304

Single/Double piezoelectric motor drive Use stainless steel crossed-roller bearing With power-off self-locking , brake function and no return backlash Minimum stepping rotation angle 0.06 second Compact design, other sizes can be customized
