Motorized Nano Rotation Stages Stage Size=70mm Travel=360Deg





Share

WeChat

Scan and add Wechat

Motorized Nano Rotation Stages Stage Size=70mm Travel=360Deg

Price Option

Product No. 526900

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

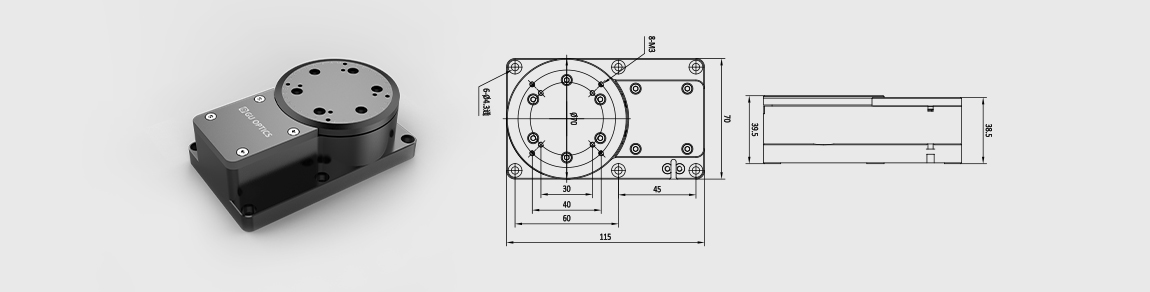

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Stage Diameter. 70mm

Travel 360Deg

Motor Drive M302V

Max Speed 180 Deg/sec

Max load 3kg

Min Step 0.006 Deg

Repositioning Accuracy 0.01 Deg

Position Sensor magnetic grating ruler

Body Maerial Aluminium Alloy, with Anodizing Treatment

Motorized Nano Goniometers Stages Height of Rotation Center=126mm Travel=±7.5mm

Motorized Nano Rotation Stages Stage Size=100mm Travel=350Deg

Motorized Nano Rotation Stages Stage Size=150mm Travel=350Deg

Motorized Nano Vertical Stages Travel=10mm Motor Drive:2×M304

Single/Double piezoelectric motor drive Use stainless steel crossed-roller bearing With power-off self-locking , brake function and no return backlash Minimum stepping rotation angle 0.06 second Compact design, other sizes can be customized
