Motorized Nano Goniometers Stages Height of Rotation Center=126mm Travel=±7.5mm





Share

WeChat

Scan and add Wechat

Motorized Nano Goniometers Stages Height of Rotation Center=126mm Travel=±7.5mm

Price Option Please Consult

Product No. 526850

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Height of Rotation Center 126mm

Travel ±7.5 Deg

Max Speed >20 Deg/sec

Max Load 2kg

Min Step <0.0001 Deg

Repositioning Accuracy 0.0005 Deg

Position Sensor Magnescale

Stage Size 70×70mm

Weight 0.61kg

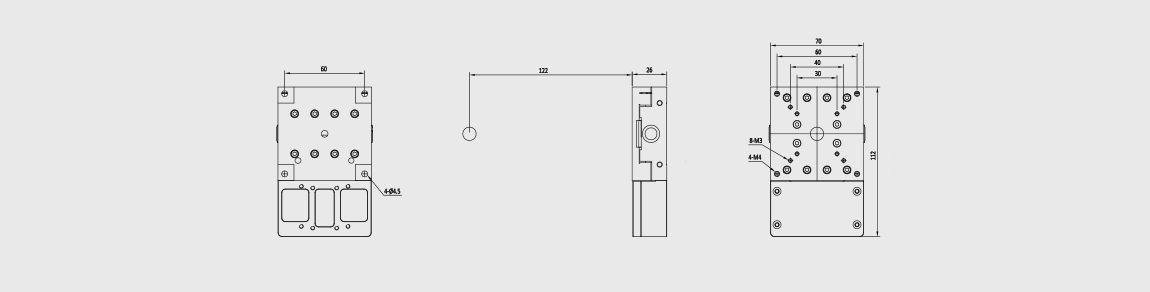

Geometry Dimension 70×112×26mm

Motorized Nano Rotation Stages Stage Size=70mm Travel=360Deg

Motorized Nano Rotation Stages Stage Size=100mm Travel=350Deg

Motorized Nano Rotation Stages Stage Size=150mm Travel=350Deg

Motorized Nano Vertical Stages Travel=10mm Motor Drive:2×M304

Piezoelectric motor drive With Power-off self-locking , brake function and no return backlash High precision,Minimum Step Angle <0.0001℃ Real-time display of angle and closed-loop positioning Ultra-thin compact design, Height only 26 mm
