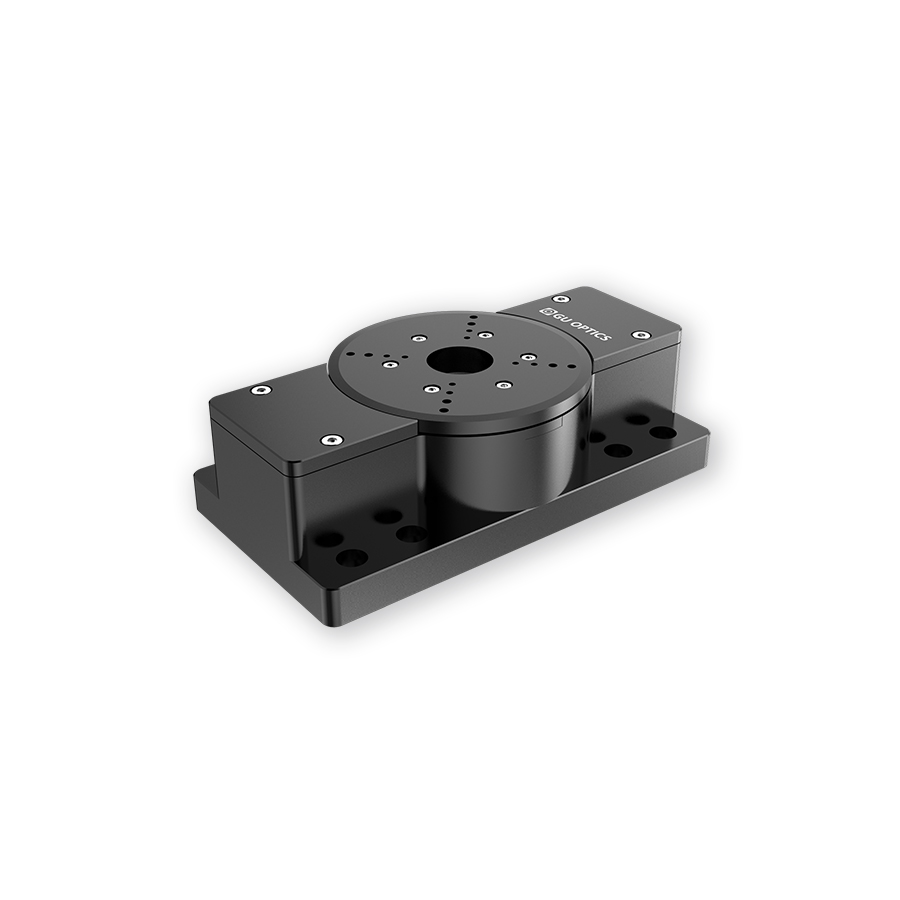

Motorized Nano Rotation Stages Stage Size=100mm Travel=350Deg





Share

WeChat

Scan and add Wechat

Motorized Nano Rotation Stages Stage Size=100mm Travel=350Deg

Price Option

Product No. 526901

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Stage Diameter. 100mm

Travel 350Deg

Motor Drive 2×M302V

Max Speed 120 Deg/sec

Max load 5kg

Min Step 0.001 Deg

Repositioning Accuracy 0.002 Deg

Position Sensor magnetic grating ruler

Body Maerial Aluminium Alloy, with Anodizing Treatment

Motorized Nano Goniometers Stages Height of Rotation Center=126mm Travel=±7.5mm

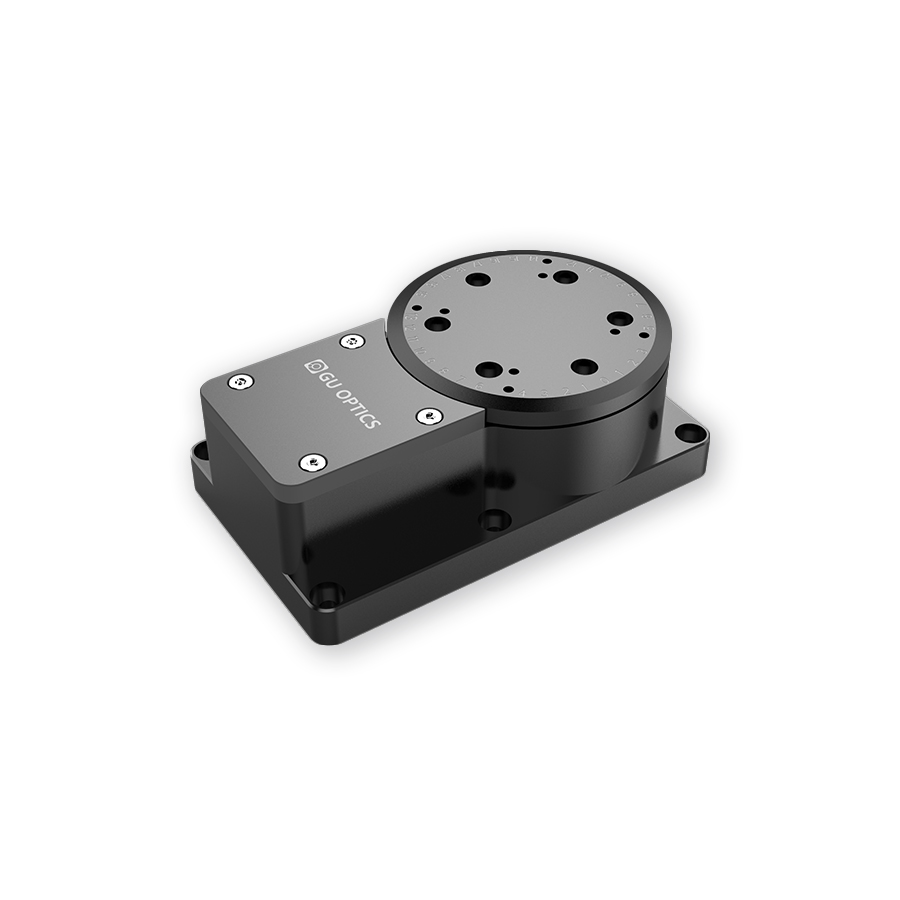

Motorized Nano Rotation Stages Stage Size=70mm Travel=360Deg

Motorized Nano Rotation Stages Stage Size=150mm Travel=350Deg

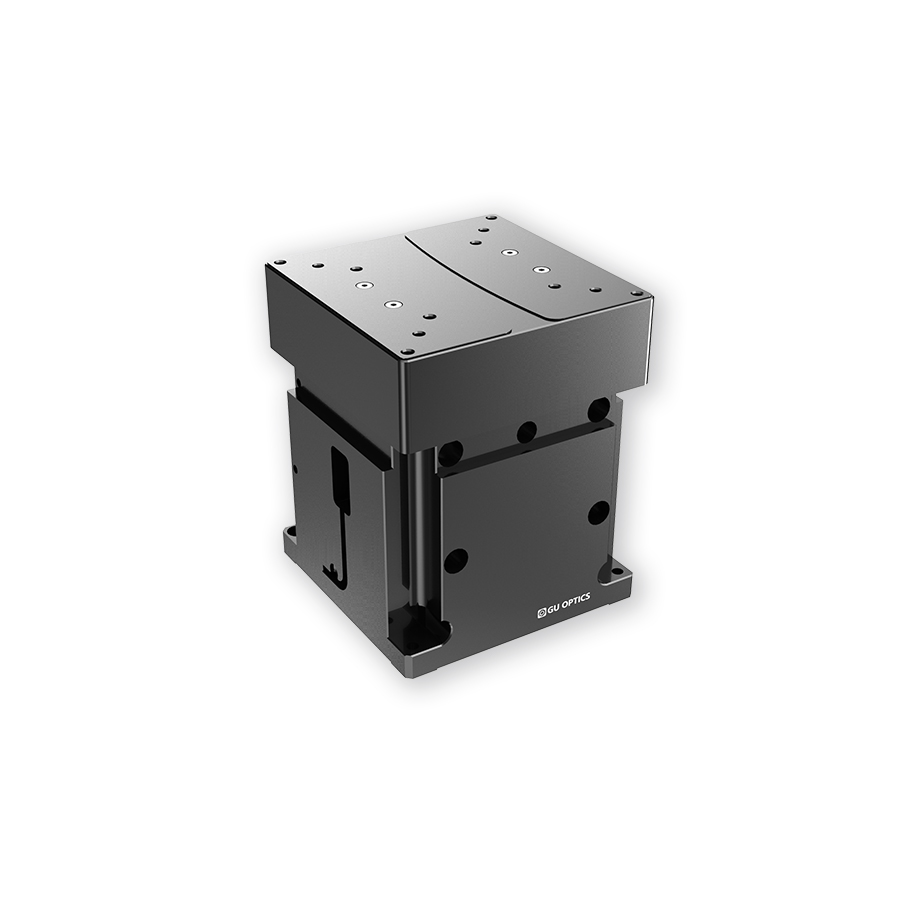

Motorized Nano Vertical Stages Travel=10mm Motor Drive:2×M304

Single/Double piezoelectric motor drive Use stainless steel crossed-roller bearing With power-off self-locking , brake function and no return backlash Minimum stepping rotation angle 0.06 second Compact design, other sizes can be customized
