10nm Piezoelectric Nano Translation Stages Stage Size=70×105mm Travel=50mm





Share

WeChat

Scan and add Wechat

10nm Piezoelectric Nano Translation Stages Stage Size=70×105mm Travel=50mm

Price Option

Product No. 526802

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

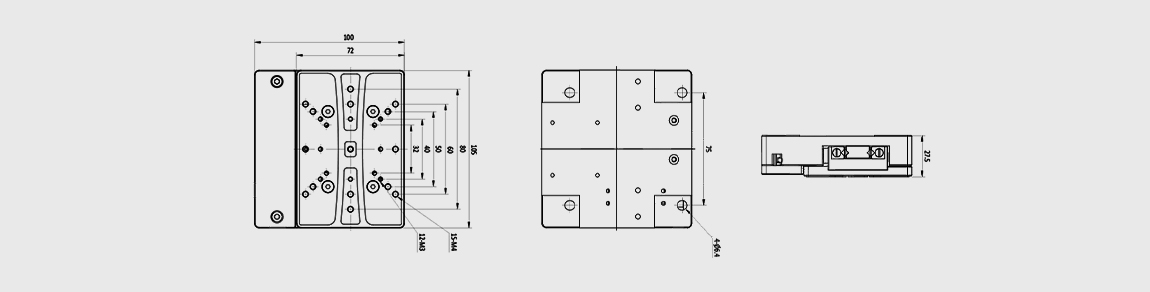

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Stage Size 70×105mm

Travel 50

Motor Drive M304

Axial Thrust 16N

Max load 5kg

Max Speed 20mm/s

Minimum step 10nm

Repositioning Accuracy 0.3μm

Position Sensor Grating Rule

Straightness Accuracy <2μm

Parallelism of Motion <10μm

Material Aluminium Alloy, with Anodizing Treatment

50nm Piezoelectric Nano Translation Stages Stage Size=70×70mm Travel=25mm

50nm Piezoelectric Nano Translation Stages Stage Size=90×90mm Travel=25mm

50nm Piezoelectric Nano Translation Stages Stage Size=90×90mm Travel=40mm

10nm Piezoelectric Nano Translation Stages Stage Size=70×155mm Travel=80mm

Piezoelectric ultrasonic motor drive, axial thrust 16N Use stainless steel crossed-roller bearing, high precision, repeatability and linearity With power-off self-locking , brake function and no return backlash Minimum step 10nm Adopt grating ruler position sensor Ultra-thin compact design, convenient for mechanical integration, main body material is aluminium alloy, anodizing treatment
