Piezoelectric Nano Translation Stages

 10nm Piezoelectric Nano Translation Stages

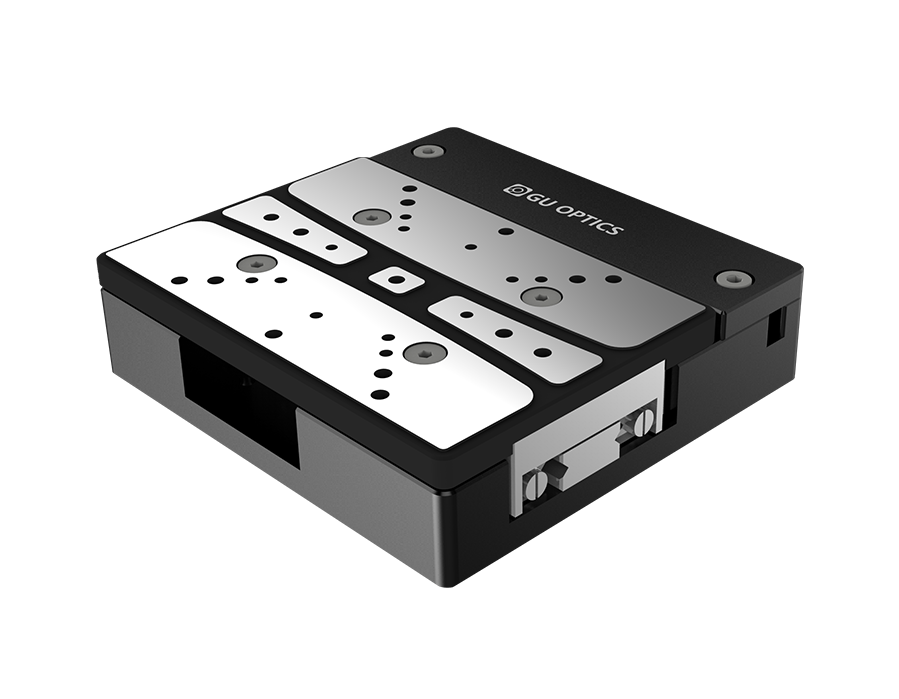

10nm Piezoelectric Nano Translation Stages

Product characteristics
1. Piezoelectric ultrasonic motor drive, axial thrust 16N
2. Use stainless steel crossed-roller bearing, high precision, repeatability and linearity
3. With power-off self-locking , brake function and no return backlash
4. Minimum step 10nm
5. Adopt grating ruler position sensor
6. Ultra-thin compact design, convenient for mechanical integration, main body material is aluminium alloy, anodizing treatment

Products Related Download

Stage Size

Select..  

Travel

Select..  

Motor Drive

Select..  

 M304

Axial Thrust

Select..  

 16N

Clear

Pro No.

Parameter

Stage Size

Travel

Motor Drive

Axial Thrust

Delivery time

Compare

Price

Purchase

526802

Parameter list

70×105mm

M304

16N

Consult



$6416.67



526803

Parameter list

70×155mm

M304

16N

Consult



Consult


