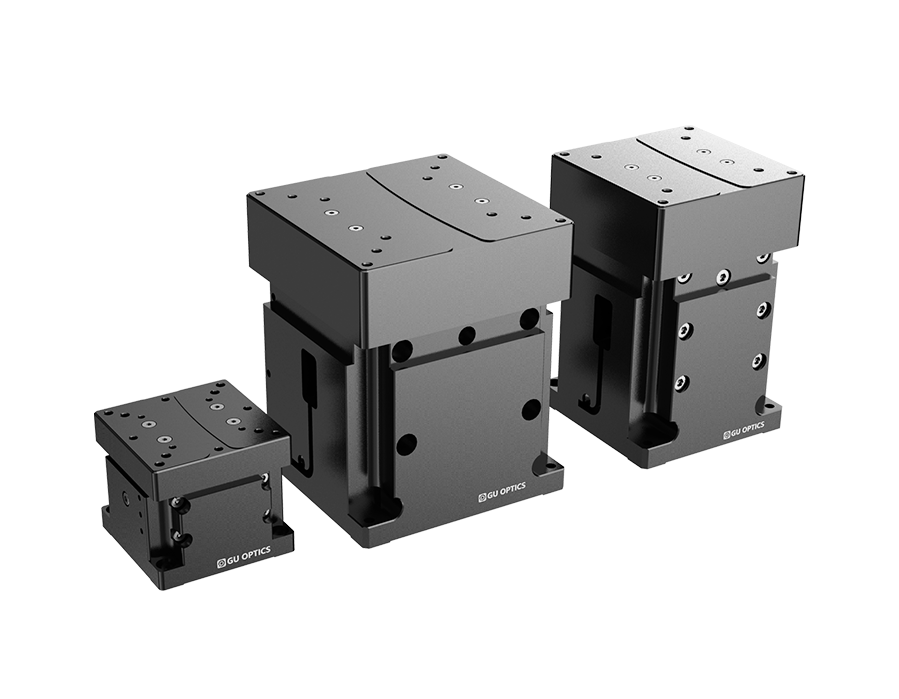

Motorized Nano Vertical Stages

Motorized Nano Vertical Stages

 Motorized Nano Vertical Stages

Motorized Nano Vertical Stages

Product characteristics
1. Wedge shape design, single/double piezoelectric motor drive.
2. With power-off self-locking , brake function and no return backlash.
3. Minimum stepping 20nm.
4. Can choose magnetic grating ruler or grating ruler as position feedback sensor.
5. Compact design, can be combined with other stages to form a multi-axis module.

Products Related Download

Travel

Select..  

Motor Drive

Select..  

 Piezoelectric-Motor

Max Load

Select..  

Max Speed

Select..  

Clear

Pro No.

Parameter

Travel

Motor Drive

Max Load

Max Speed

Delivery time

Compare

Price

Purchase

526950

Parameter list

±5mm

Piezoelectric-Motor

4kg

200mm/sec

Consult



$7000.00



526951

Parameter list

6mm

Piezoelectric-Motor

0.5kg

20mm/sec

Consult



$5333.33



526957

Parameter list

±12.5mm

Piezoelectric-Motor

1kg

20mm/sec

Consult



$6016.67


