Motorized Nano Microscope Platforms

Motorized Nano Microscope Translation Stages

 Motorized Nano Microscope Translation Stages

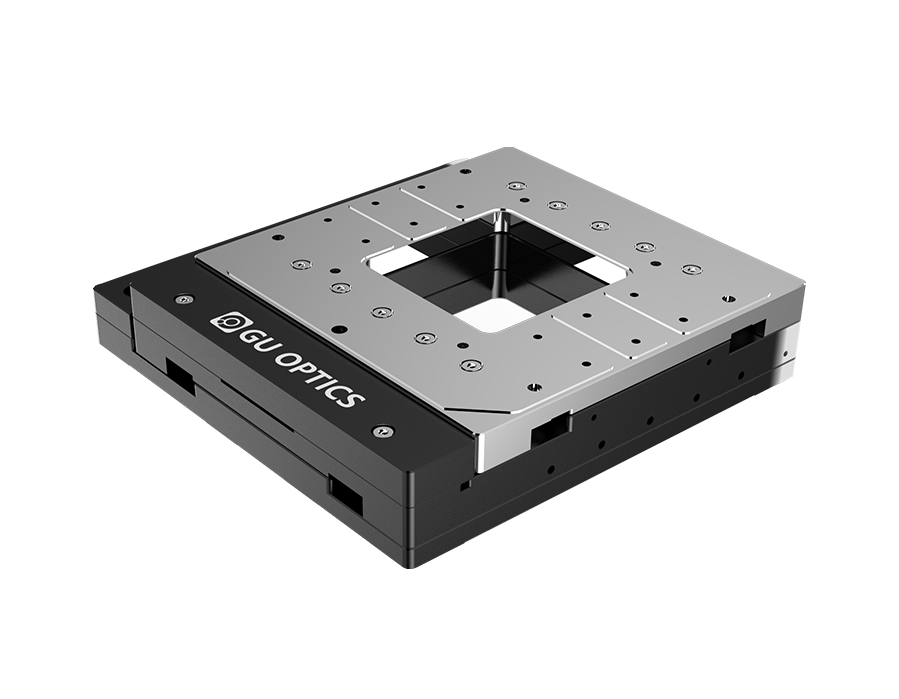

Motorized Nano Microscope Translation Stages

Product characteristics
1. Piezoelectric motor drive.
2. With power-off self-locking, brake function and no return backlash.
3. Minimum stepping 50nm.
4. Can choose magnetic grating ruler or grating ruler as position feedback sensor.
5. Ultra-thin compact design, Height only 26 mm.
6. Suitable for used as a loading platform for various microscopes and test equipment.

Products Related Download

Travel

Select..  

Motor Drive

Select..  

 M304

Max Speed

Select..  

 20mm/s

Axial Thrust

Select..  

 16N

Clear

Pro No.

Parameter

Travel

Motor Drive

Max Speed

Axial Thrust

Delivery time

Compare

Price

Purchase

527000

Parameter list

75×75mm

M304

20mm/s

16N

Consult



$13366.67



527001

Parameter list

105×105mm

M304

20mm/s

16N

Consult



Consult



527002

Parameter list

125×82mm

M304

20mm/s

16N

Consult



$13500.00



X-Y Motorized Nano Displacement Stages

X-Y-Z Motorized Nano Displacement Stages

X-Y-Φ Motorized Nano Displacement Stages

Motorized Nano Displacement Stage Controller
