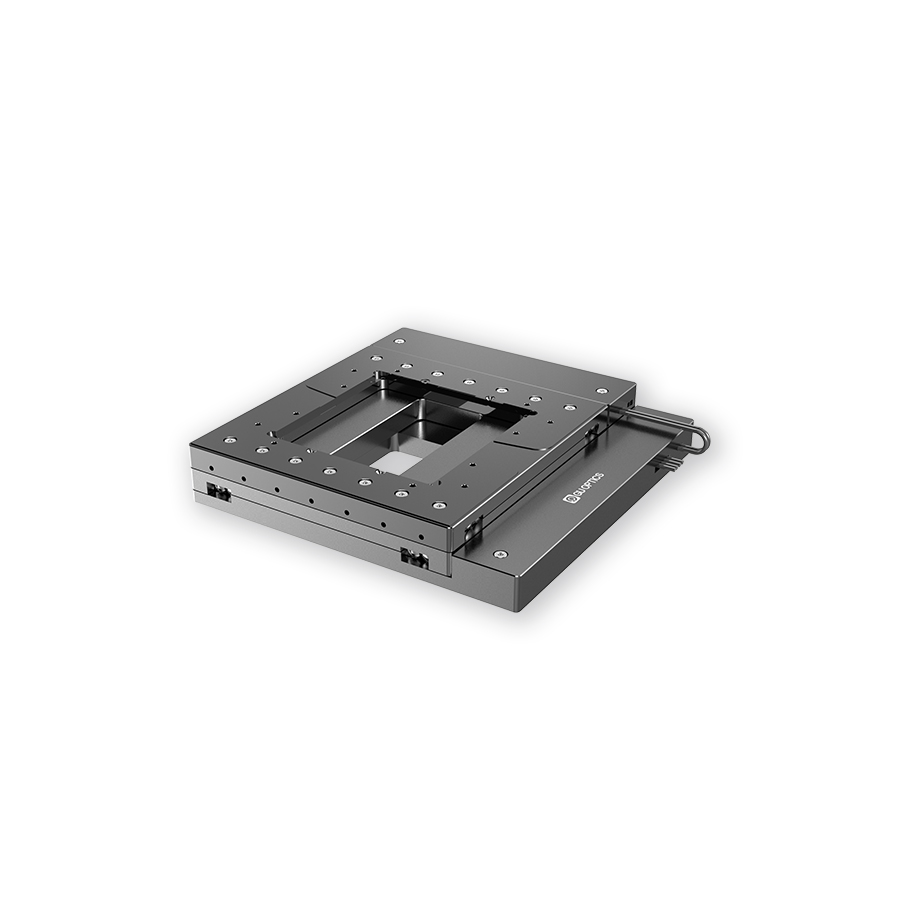

Motorized Nano Microscope Translation Stage Travel=105×105mm





Share

WeChat

Scan and add Wechat

Motorized Nano Microscope Translation Stage Travel=105×105mm

Price Option Please Consult

Product No. 527001

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

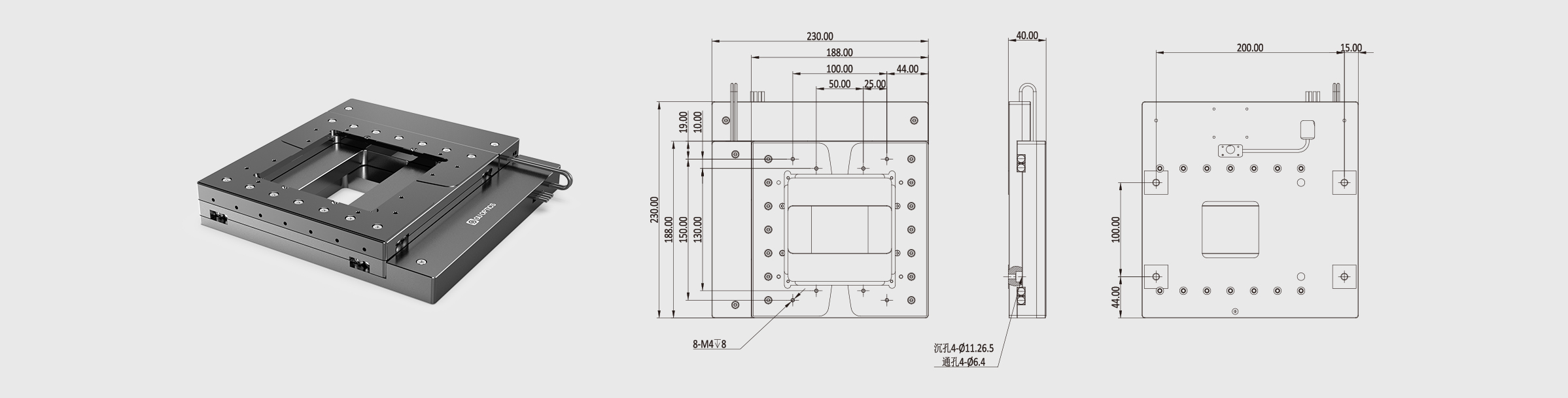

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Travel 105×105mm

Motor Drive M304

Max Speed 20mm/s

Axial Thrust 16N

Max Load 2kg

Min Step 50nm

Repositioning Accuracy 0.3μm

Position Sensor grating ruler

Body Maerial Aluminium Alloy, with Anodizing Treatment

Geometry Dimension 250×250×42mm

Weight（kg) 6.1

Motorized Nano Vertical Stages Travel=10mm Motor Drive:2×M304

Motorized Nano Vertical Stages Travel=5mm Motor Drive:M304

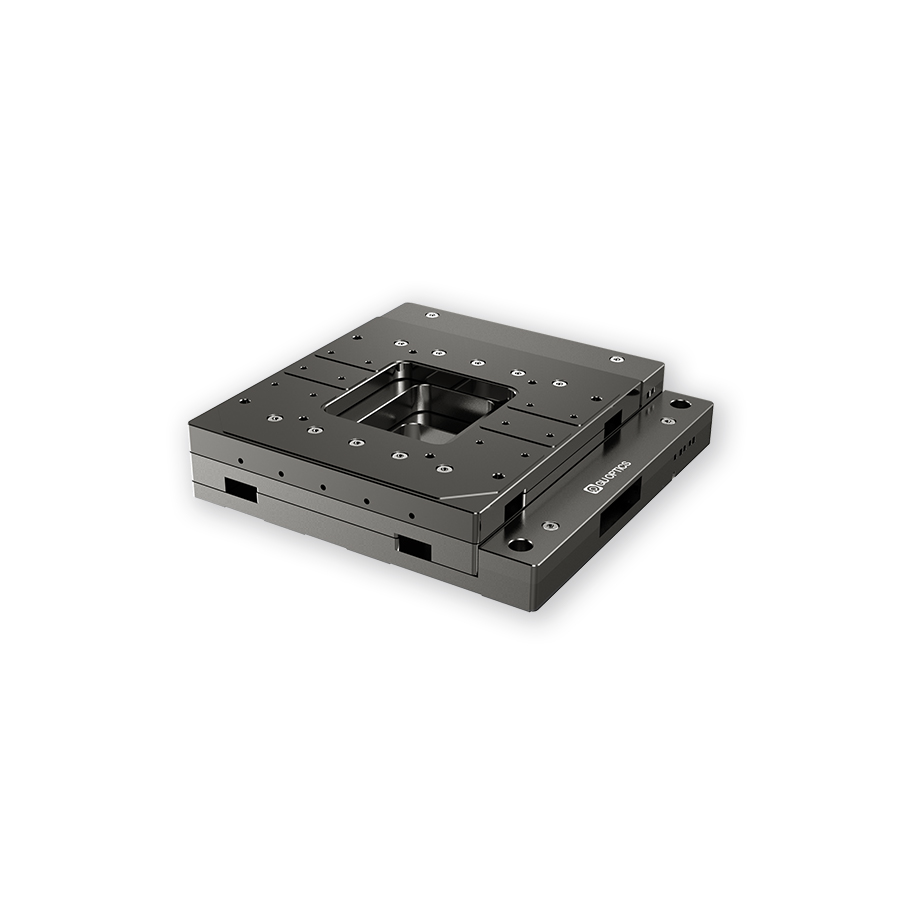

Motorized Nano Microscope Translation Stage Travel=75×75mm

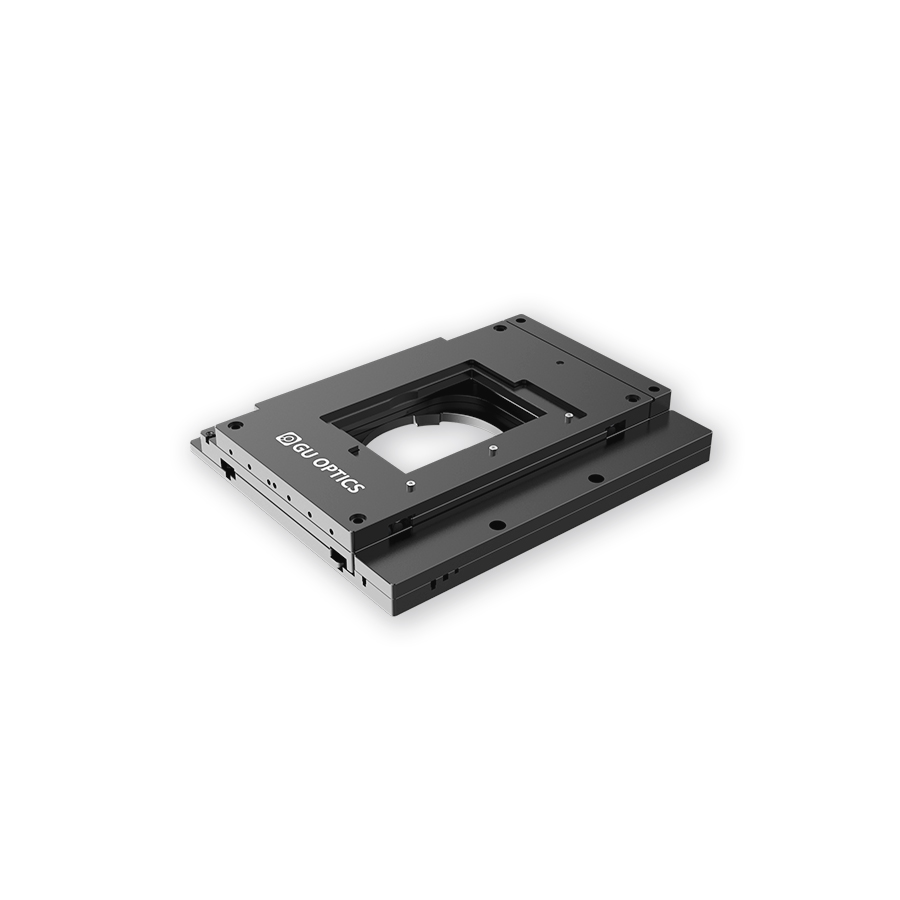

Motorized Nano Microscope Translation Stage Travel=125×82mm

Piezoelectric motor drive With power-off self-locking, brake function and no return backlash Minimum stepping 50nm Can choose magnetic grating ruler or grating ruler as position feedback sensor Ultra-thin compact design, Height only 26 mm Suitable for used as a loading platform for various microscopes and test equipment
