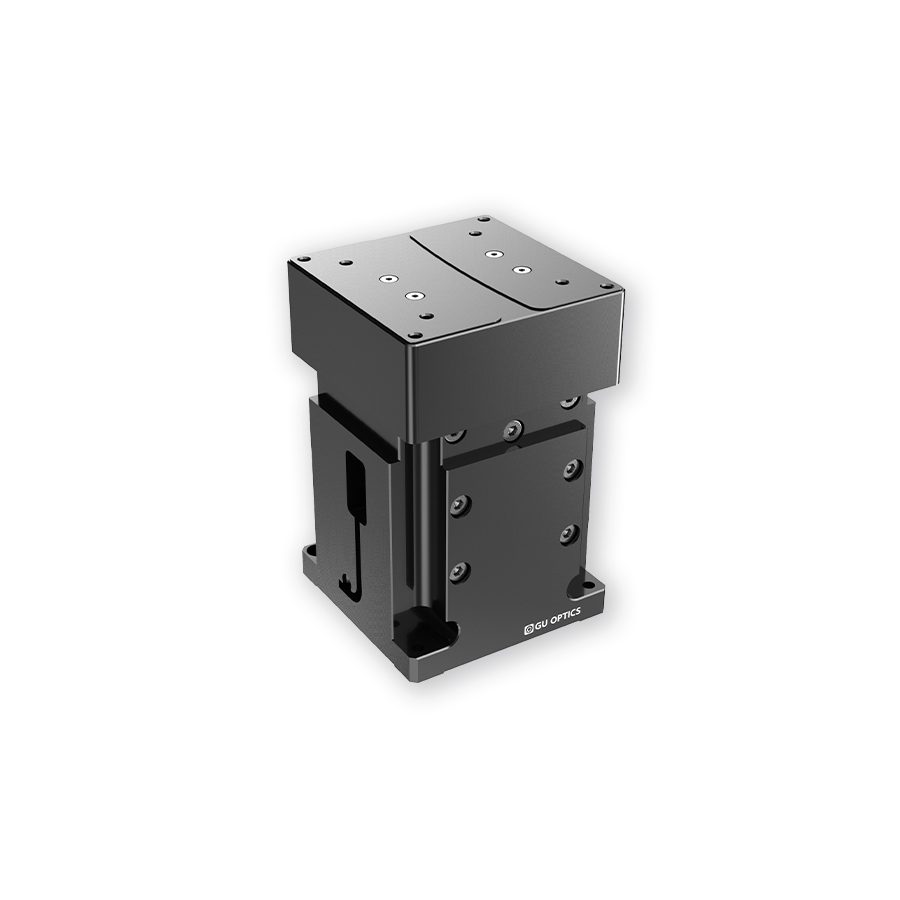

Motorized Nano Vertical Stages Travel=±12.5mm





Share

WeChat

Scan and add Wechat

New Motorized Nano Vertical Stages Travel=±12.5mm

Price Option

Product No. 526957

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Travel ±12.5mm

Motor Drive Piezoelectric-Motor

Max Load 1kg

Max Speed 20mm/sec

Min Step 50nm

Repositioning Accuracy +/-200nm

Position Sensor Imported Grating

Body Maerial Aluminium Alloy

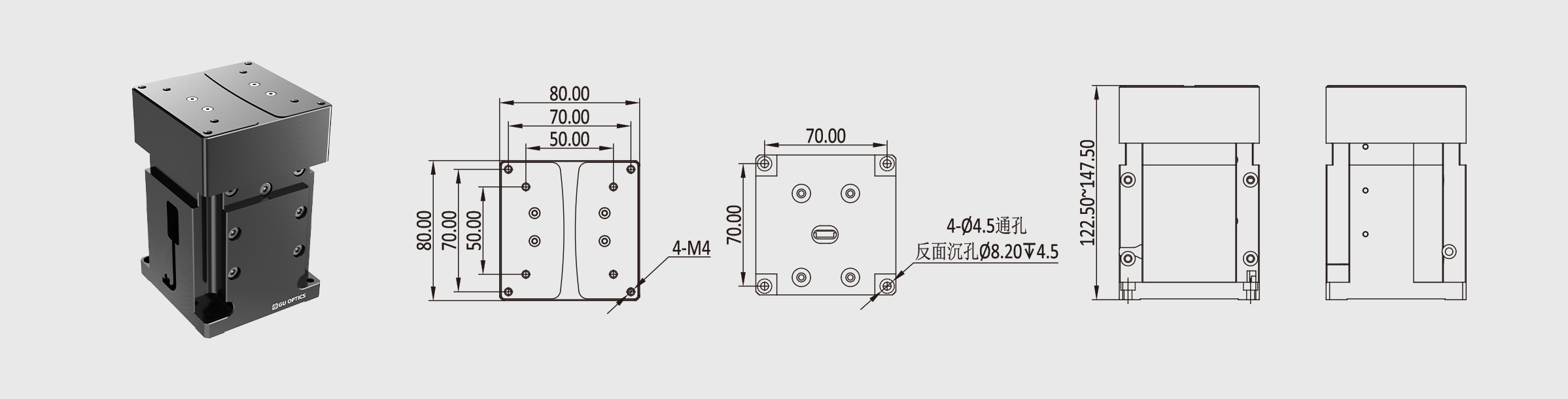

Geometry Dimension 80×80×122.5mm

Weight

Motorized Nano Vertical Stages Travel=10mm Motor Drive:2×M304

Motorized Nano Vertical Stages Travel=5mm Motor Drive:M304

Motorized Nano Displacement Stage Controller

Motorized Nano Displacement Stage Controller

Wedge shape design, single/double piezoelectric motor drive With power-off self-locking , brake function and no return backlash Minimum stepping 20nm Can choose magnetic grating ruler or grating ruler as position feedback sensor Compact design, can be combined with other stages to form a multi-axis module.
