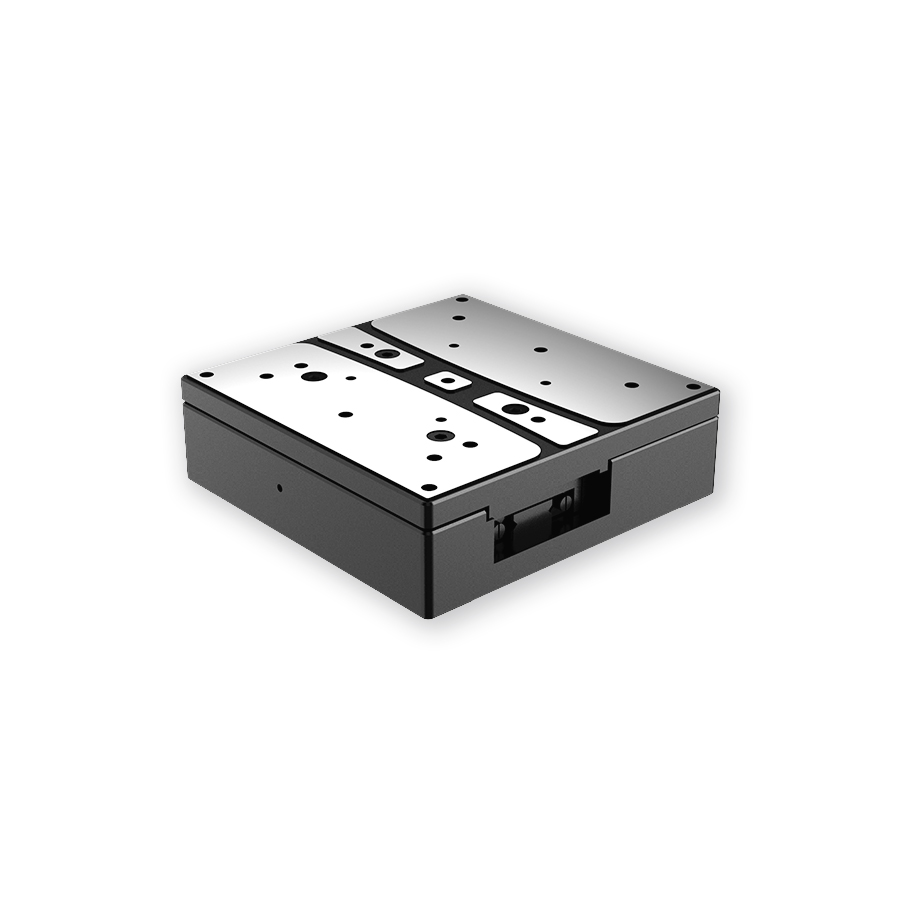

50nm Piezoelectric Nano Translation Stages Stage Size=90×90mm Travel=40mm





Share

WeChat

Scan and add Wechat

50nm Piezoelectric Nano Translation Stages Stage Size=90×90mm Travel=40mm

Price Option Please Consult

Product No. 526653

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

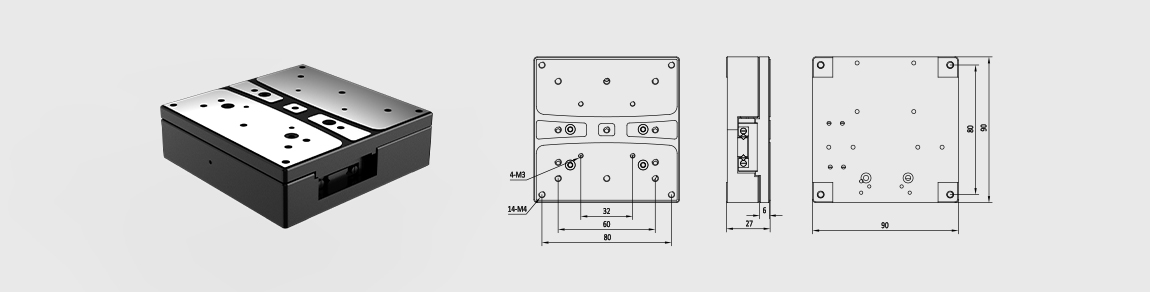

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Stage Size 90×90mm

Travel 40mm

Motor Drive JM304

Axial Thrust 16N

Max load 3kg

Max Speed 20mm/s

Minimum step 50nm

Repositioning Accuracy 0.3μm

Position Sensor Grating Rule

Straightness Accuracy <2μm

Parallelism of Motion <10μm

Material Aluminium Alloy, with Anodizing Treatment

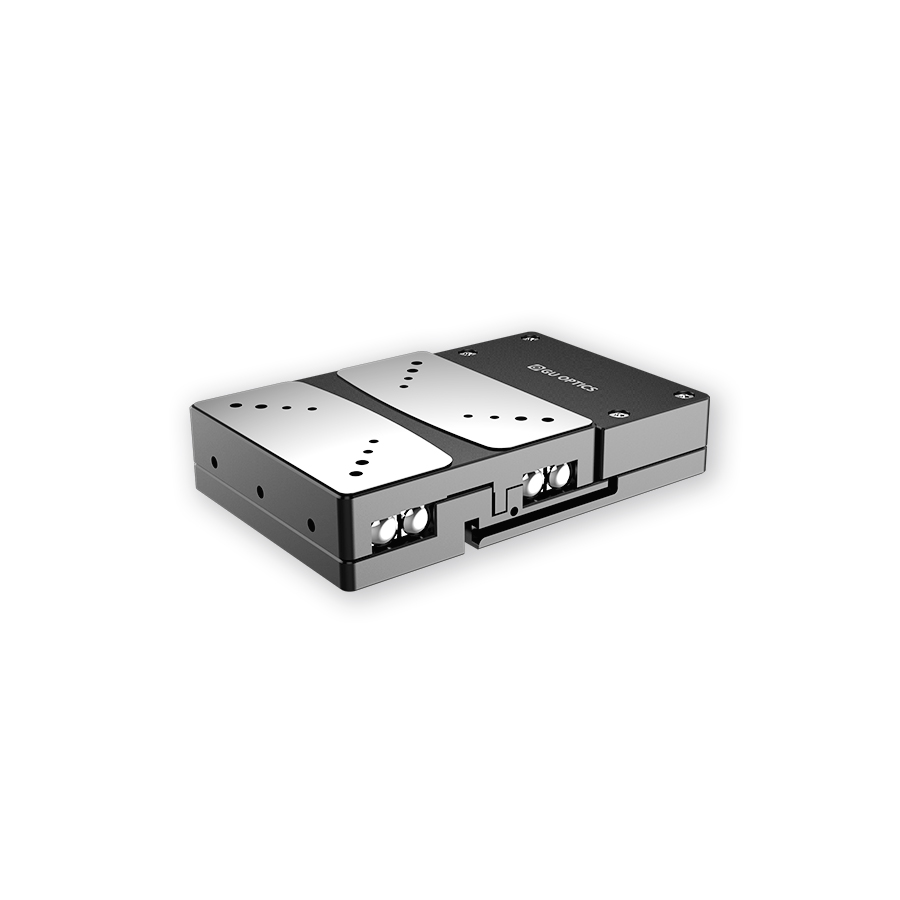

50nm Piezoelectric Nano Translation Stages Stage Size=80×80mm Travel=30mm

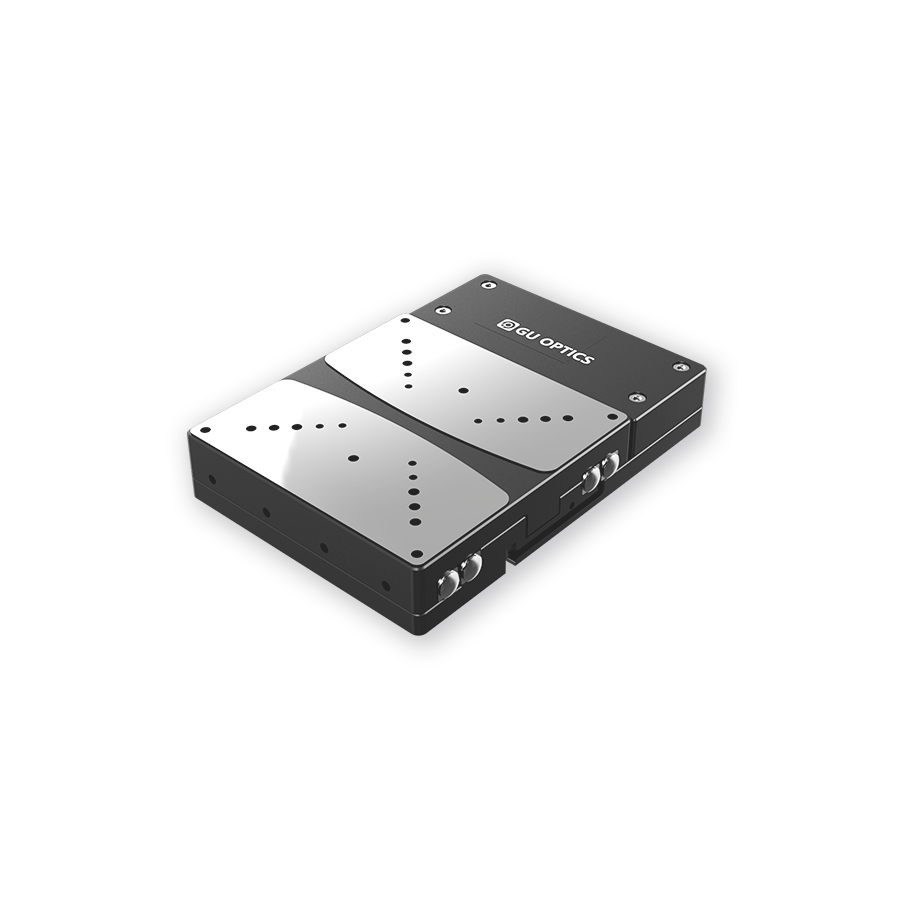

50nm Piezoelectric Nano Translation Stages Stage Size=100×100mm Travel=40mm

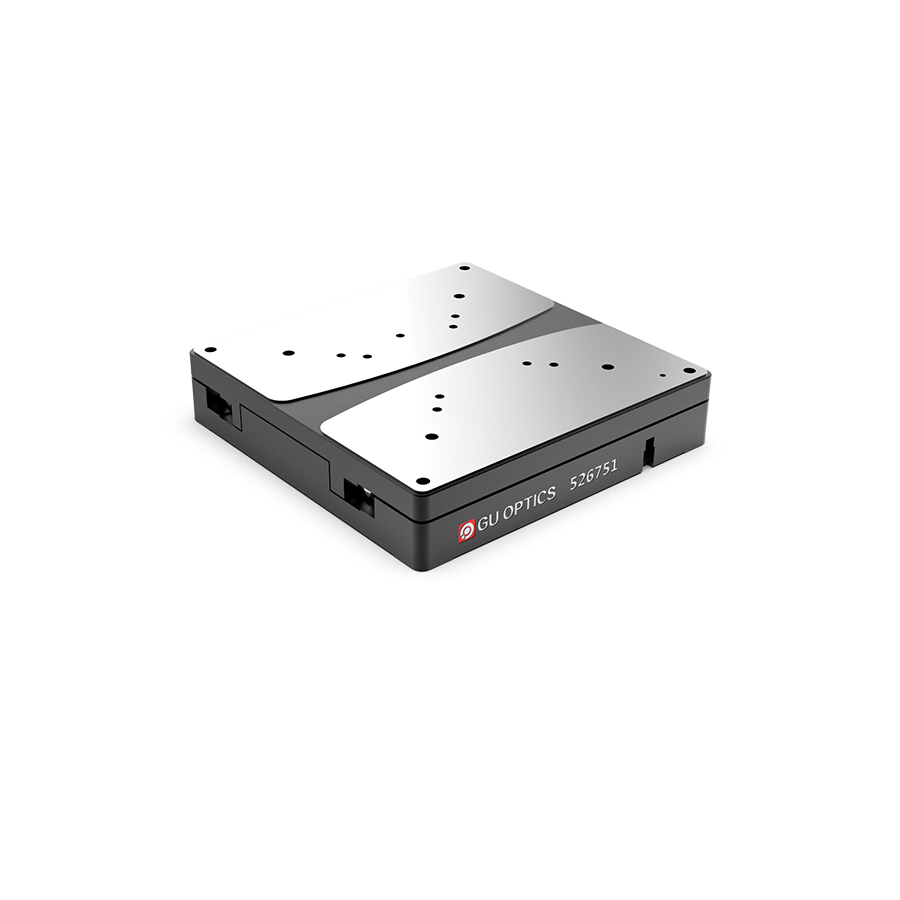

50nm Piezoelectric Nano Translation Stages Motor Drive：M304 Axial Thrust=16N

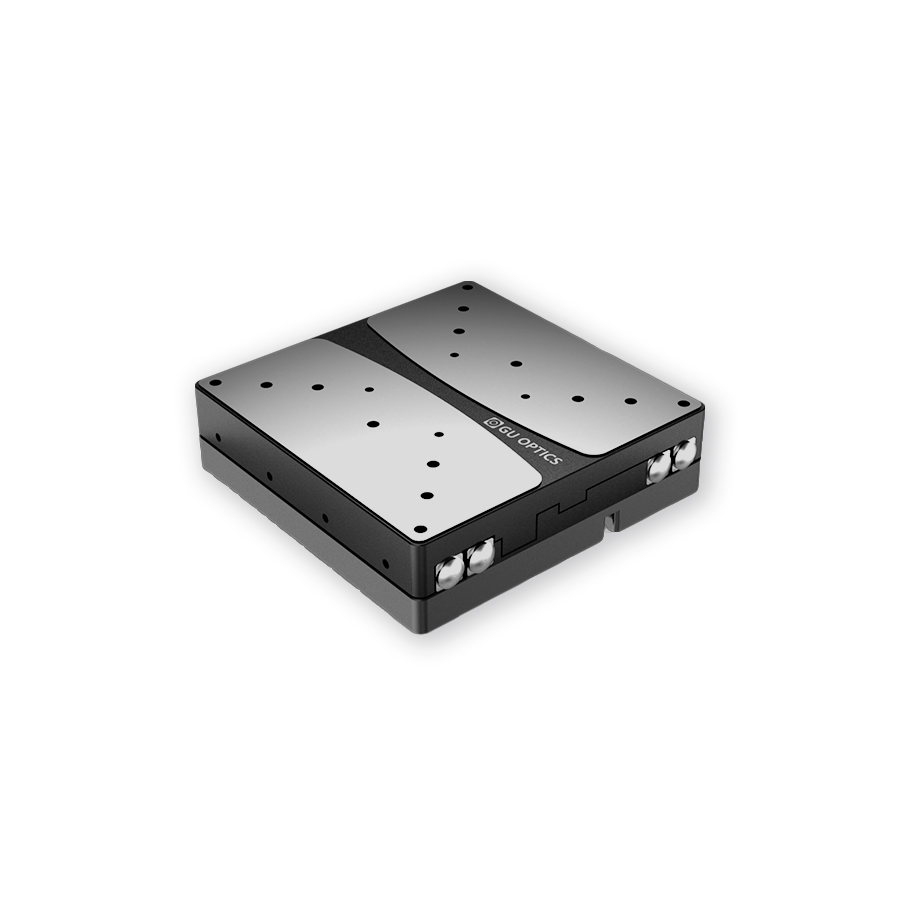

50nm Piezoelectric Nano Translation Stages Motor Drive：M302 Axial Thrust=8N

Piezoelectric ultrasonic motor drive, axial thrust 16N Using stainless steel crossed-roller bearing, high precision, repeatability and linearity With power-off self-locking , brake function and no return backlash Minimum step 50nm Adopt grating ruler position sensor Ultra-thin compact design, convenient for mechanical integration, main body material is aluminium alloy, with anodizing treatment
