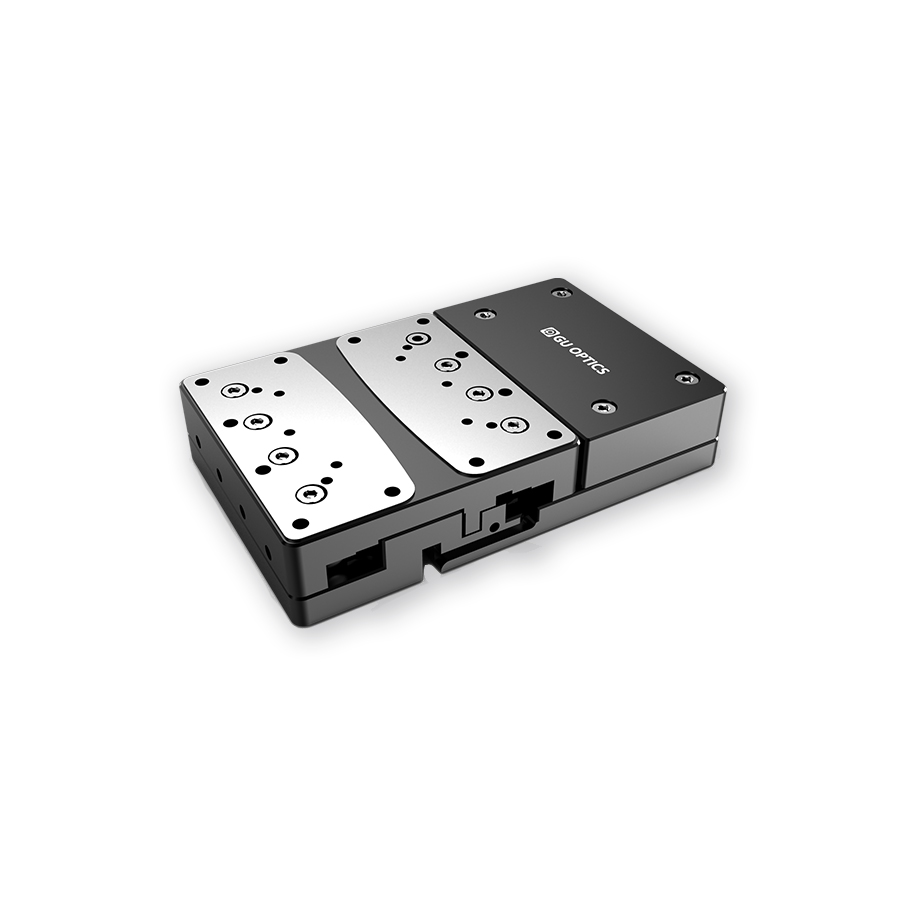

50nm Piezoelectric Nano Translation Stages Stage Size=70×70mm Travel=25mm





Share

WeChat

Scan and add Wechat

50nm Piezoelectric Nano Translation Stages Stage Size=70×70mm Travel=25mm

Price Option

Product No. 526651

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

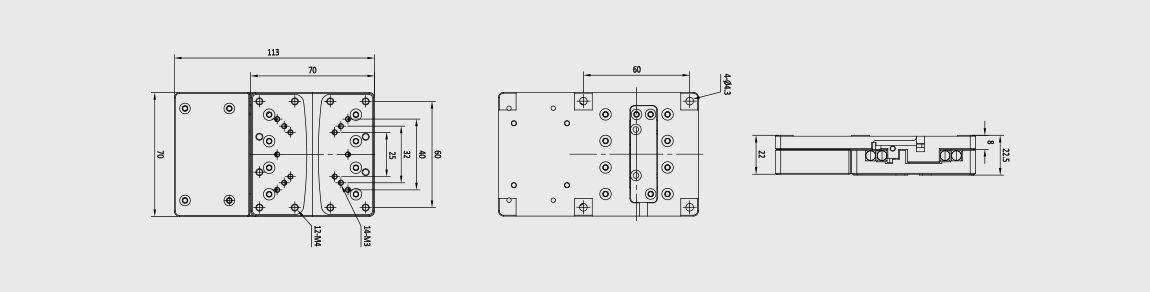

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Stage Size 70×70mm

Travel 25mm

Motor Drive M302/304

Axial Thrust 8/16N

Max load 1kg

Max Speed 20mm/s

Minimum step 50nm

Repositioning Accuracy ±0.3μm

Position Sensor Grating Rule

Straightness Accuracy <2μm

Parallelism of Motion <10μm

Material Aluminium Alloy, with Anodizing Treatment

50nm Piezoelectric Nano Translation Stages Stage Size=90×90mm Travel=25mm

50nm Piezoelectric Nano Translation Stages Stage Size=90×90mm Travel=40mm

50nm Piezoelectric Nano Translation Stages Stage Size=80×80mm Travel=30mm

50nm Piezoelectric Nano Translation Stages Stage Size=100×100mm Travel=40mm

Piezoelectric ultrasonic motor drive, axial thrust 16N Using stainless steel crossed-roller bearing, high precision, repeatability and linearity With power-off self-locking , brake function and no return backlash Minimum step 50nm Adopt grating ruler position sensor Ultra-thin compact design, convenient for mechanical integration, main body material is aluminium alloy, with anodizing treatment
