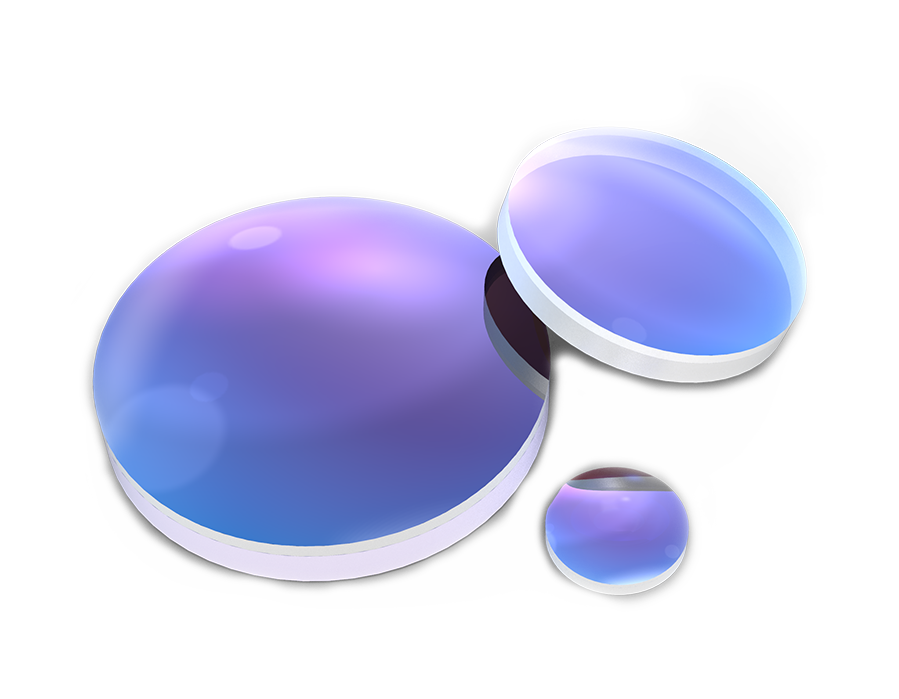

Positive Achromatic Lenses

Achromatic lenses are commonly used for colour correction to minimize or eliminate the colour aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for various applications such as detection or spectroscopy. Achromatic lenses can create smaller spot sizes compare with singlet lenses. Grand Unified Optics offers achromatic lenses with various AR coatings suitable for your application.

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Irregularity (P-V) λ/4 @632.8nm

Focal Length Tolerance（EFL） ±2%

Centering Tolerance 3~5 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

 4.00mm
 5.00mm
 6.30mm
 7.50mm
 8.00mm
 10.00mm
 12.50mm
 12.70mm
 15.00mm
 16.00mm
 18.89mm
 19.00mm
 20.00mm
 24.86mm
 25.00mm
 29.87mm
 29.92mm
 30.00mm
 31.50mm
 35.00mm
 40.00mm
 45.00mm
 49.84mm
 49.91mm
 50.00mm
 60.00mm
 60mm
 63.00mm
 74.81mm
 74.9mm
 75.00mm
 79.79mm
 80.00mm
 99.55mm
 100.00mm
 125.00mm
 145.00mm
 149.21mm
 150.00mm
 160.00mm
 179.45mm
 180.00mm
 198.93mm
 200.00mm
 250.00mm
 298.04mm
 300.00mm
 315.00mm
 397.47mm
 400.00mm
 496.83mm
 500.00mm
 596.2mm
 630.00mm
 750.00mm
 1000.00mm

Coating

Select..  

 2.90mm
 3.30mm
 3.31mm
 3.60mm
 3.63mm
 3.80mm
 3.90mm
 4.00mm
 4
 4.02mm
 4.10mm
 4.22mm
 4.29mm
 4.40mm
 4.44mm
 4.50mm
 4.55mm
 4.60mm
 4.64mm
 4.70mm
 4.80mm
 4.90mm
 5.00mm
 5
 5.01mm
 5.10mm
 5.26mm
 5.30mm
 5.32mm
 5.50mm
 5.5mm
 5.58mm
 5.60mm
 5.66mm
 5.69mm
 5.70mm
 5.74mm
 5.80mm
 5.92mm
 6.00mm
 6
 6.11mm
 6.20mm
 6.30mm
 6.37mm
 6.50mm
 6.60mm
 6.70mm
 6.80mm
 6.98mm
 7.00mm
 7.05mm
 7.10mm
 7.29mm
 7.34mm
 7.50mm
 7.64mm
 7.70mm
 7.71mm
 7.90mm
 8.00mm
 8
 8.30mm
 8.50mm
 8.56mm
 8.60mm
 9.00mm
 9
 9.20mm
 9.21mm
 9.24mm
 9.30mm
 9.40mm
 9.50mm
 9.56mm
 10.00mm
 10.10mm
 10.30mm
 10.50mm
 10.60mm
 10.70mm
 10.80mm
 11.40mm
 11.50mm
 11.80mm
 11.84mm
 12.00mm
 12
 12.37mm
 12.50mm
 12.5
 13.00mm
 13
 13mm
 13.20mm
 13.30mm
 13.50mm
 13.5
 14.00mm
 14.80mm
 15.00mm
 15
 15.47mm
 15.89mm
 16.50mm
 17.00mm
 17.39mm
 18.00mm
 18.60mm
 19.50mm
 20.00mm
 20.50mm
 21.50mm
 23.00mm

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

145000

Parameter list

3.00mm

4.00mm

AR@400~700nm

2.90mm

In stock



$52.50



145001

Parameter list

4.00mm

5.00mm

AR@400~700nm

3.60mm

In stock



$49.17



145002

Parameter list

4.00mm

6.30mm

AR@400~700nm

3.60mm

In stock



$49.17



145003

Parameter list

5.00mm

7.50mm

AR@400~700nm

4.50mm

In stock



$47.50



145004

Parameter list

5.00mm

10.00mm

AR@400~700nm

4.40mm

In stock



$42.50



145005

Parameter list

5.00mm

15.00mm

AR@400~700nm

4.80mm

In stock



$42.50



145006

Parameter list

6.00mm

10.00mm

AR@400~700nm

4.00mm

In stock



$42.50



145007

Parameter list

6.30mm

8.00mm

AR@400~700nm

5.70mm

In stock



$39.17



145008

Parameter list

6.30mm

10.00mm

AR@400~700nm

5.69mm

In stock



$39.17



145009

Parameter list

6.30mm

12.50mm

AR@400~700nm

4.44mm

In stock



$39.17



145010

Parameter list

6.30mm

16.00mm

AR@400~700nm

4.00mm

In stock



$39.17



145011

Parameter list

6.30mm

25.00mm

AR@400~700nm

3.63mm

In stock



$39.17



145012

Parameter list

6.30mm

40.00mm

AR@400~700nm

3.31mm

In stock



$39.17



145013

Parameter list

6.35mm

12.70mm

AR@400~700nm

4.00mm

In stock



$39.17



145014

Parameter list

6.35mm

15.00mm

AR@400~700nm

4.00mm

In stock



$39.17



145015

Parameter list

8.00mm

10.00mm

AR@400~700nm

6.50mm

In stock



$39.17



145016

Parameter list

8.00mm

16.00mm

AR@400~700nm

5.10mm

In stock



$39.17



145017

Parameter list

8.00mm

20.00mm

AR@400~700nm

4.00mm

In stock



$39.17



145018

Parameter list

10.00mm

16.00mm

AR@400~700nm

6.30mm

In stock



$39.17



145019

Parameter list

10.00mm

20.00mm

AR@400~700nm

6.37mm

In stock



$39.17



More products >>
