 Mounted Positive Achromatic Lens

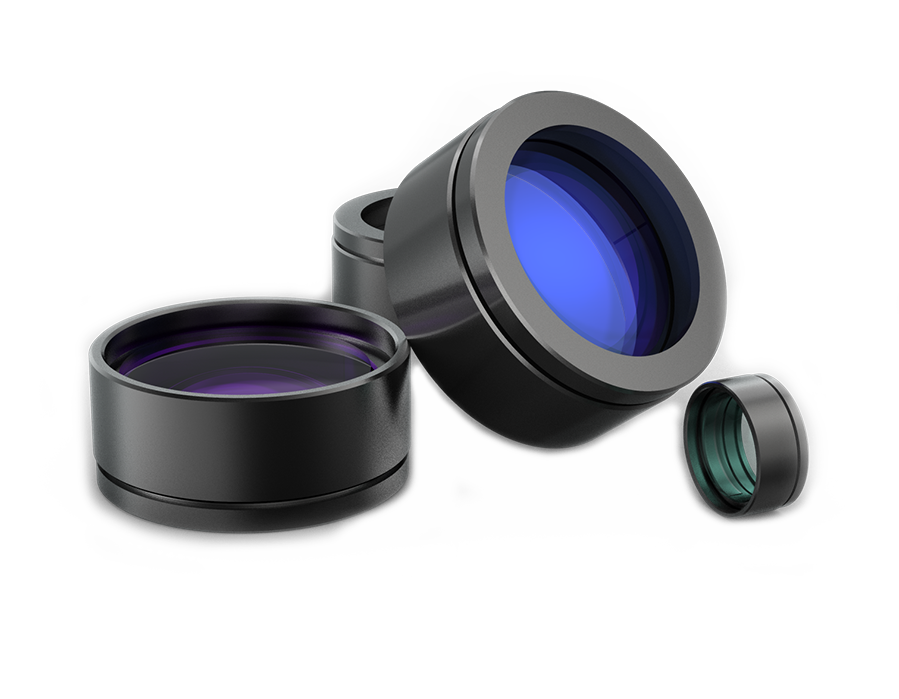

Mounted Positive Achromatic Lens

Achromatic lenses are commonly used for colour correction to minimize or eliminate the colour aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for various applications such as detection or spectroscopy. Achromatic lenses can create smaller spot sizes compare with singlet lenses. Grand Unified Optics offers achromatic lenses with various AR coatings suitable for your application.

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Irregularity (P-V) λ/4 @632.8nm

Focal Length Tolerance（EFL） ±2%

Centering Tolerance 3~5 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

 Ravg<0.5%@400-700nm

Thread

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Thread

Delivery time

Compare

Price

Purchase

145213

Parameter list

56mm

75mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145214

Parameter list

56mm

100mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145215

Parameter list

56mm

150mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145216

Parameter list

56mm

200mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145217

Parameter list

56mm

250mm

Ravg<0.5%@400-700nm

M52x0.75

In stock



Consult



145218

Parameter list

56mm

300mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145219

Parameter list

56mm

400mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145220

Parameter list

56mm

500mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145221

Parameter list

56mm

750mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145222

Parameter list

56mm

1000mm

Ravg<0.5%@400-700nm

M52x0.75

Consult



Consult



145223

Parameter list

50.8mm

63mm

Ravg<0.5%@400-700nm

M48x0.75

Consult



Consult



145224

Parameter list

50.8mm

100mm

Ravg<0.5%@400-700nm

M48x0.75

Consult



Consult



145225

Parameter list

50.8mm

160mm

Ravg<0.5%@400-700nm

M48x0.75

Consult



Consult



145226

Parameter list

50.8mm

250mm

Ravg<0.5%@400-700nm

M48x0.75

Consult



Consult



145227

Parameter list

50.8mm

400mm

Ravg<0.5%@400-700nm

M48x0.75

Consult



Consult



145228

Parameter list

50.8mm

500mm

Ravg<0.5%@400-700nm

M48x0.75

Consult



Consult



145229

Parameter list

50.8mm

750mm

Ravg<0.5%@400-700nm

M48x0.75

Consult



Consult



145230

Parameter list

50.8mm

63mm

Ravg<0.5%@400-700nm

M42x0.75

Consult



Consult



145231

Parameter list

50.8mm

100mm

Ravg<0.5%@400-700nm

M42x0.75

Consult



Consult



145232

Parameter list

50.8mm

160mm

Ravg<0.5%@400-700nm

M42x0.75

Consult



Consult



More products >>
