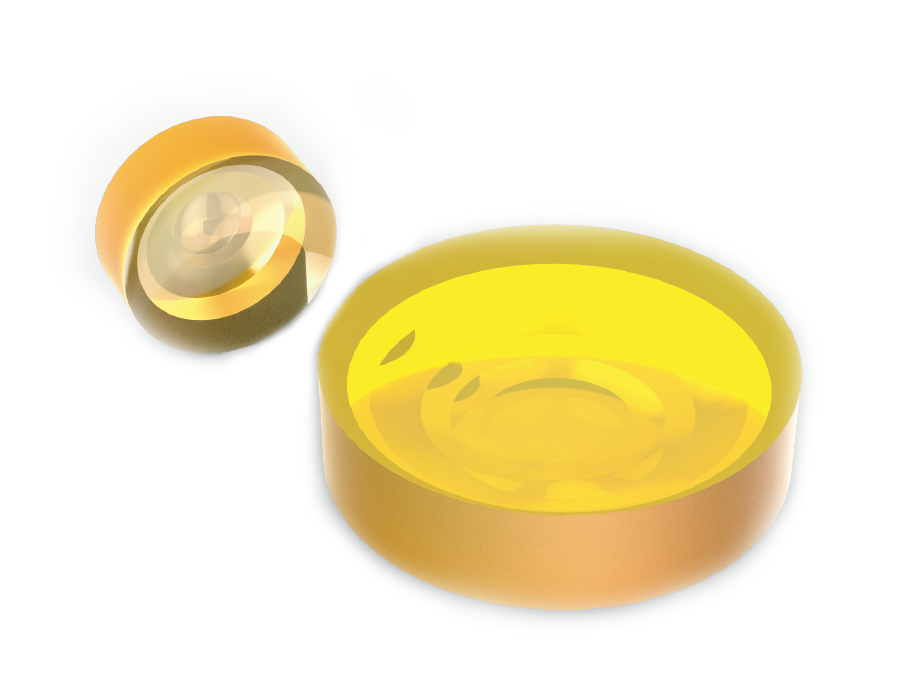

Zinc Selenide (ZnSe) Plano-Concave (PCV) Lenses
Zinc Selenide (ZnSe) Plano-Concave (PCV) Lenses
Plano-Concave Lenses diverge light. One side is flat, the other side is concave. its focal length is negative. Plano-Concave Lenses are ideal for beam expansion applications, light projection, or focal length of expansion. Grand Unified Optics offers uncoated and a wide variety of anti-reflection coated plano concave Lenses suitable for your application.
Zinc Selenide (ZnSe) Plano-Concave (PCV) Lenses
Material CVD Laser Grade（ZnSe）
Design Wavelength 10.6 μm
Diameter Tolerance +0.0/-0.1mm
Center Thickness Tolerance ±0.2mm
Focal Length Tolerance（EFL） ±1%
Centering Tolerance ＜3 arcmin
Surface Quality 40-20
Bevel 0.2mmX45°
Coating As product list

Dia

EFL

Coating

CT

Clear
Pro No.
Parameter
Dia
EFL
Coating
CT
Delivery time
Compare
Price
Purchase
120320
Parameter list
25.40mm
-25.40mm
Uncoated
2.00mm
In stock
$225.00
120321
Parameter list
25.40mm
-50.00mm
Uncoated
2.00mm
Consult
$225.00
120322
Parameter list
25.40mm
-75.00mm
Uncoated
2.00mm
In stock
$225.00
120323
Parameter list
25.40mm
-100.00mm
Uncoated
2.00mm
In stock
$225.00
120324
Parameter list
25.40mm
-200.00mm
Uncoated
2.00mm
Consult
$225.00
120325
Parameter list
25.40mm
-25.40mm
Double-Sided-AR-coating-@8~12μm
2.00mm
In stock
$258.33
120326
Parameter list
25.40mm
-50.00mm
Double-Sided-AR-coating-@8~12μm
2.00mm
In stock
$258.33
120327
Parameter list
25.40mm
-75.00mm
Double-Sided-AR-coating-@8~12μm
2.00mm
In stock
$258.33
120328
Parameter list
25.40mm
-100.00mm
Double-Sided-AR-coating-@8~12μm
2.00mm
In stock
$258.33
120329
Parameter list
25.40mm
-200.00mm
Double-Sided-AR-coating-@8~12μm
2.00mm
In stock
$258.33
Curve download
