Calcium Fluoride（CaF2）Plano-Concave Lenses

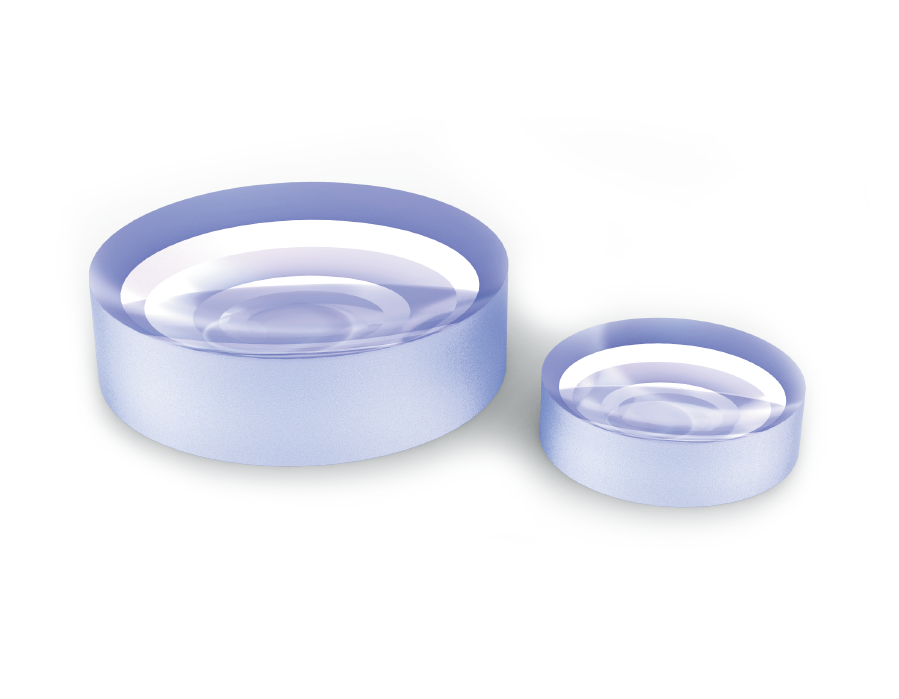

Calcium Fluoride（CaF2）Plano-Concave Lenses
Plano-Concave Lenses diverge light. One side is flat, the other side is concave. its focal length is negative. Plano-Concave Lenses are ideal for beam expansion applications, light projection, or focal length of expansion. Grand Unified Optics offers uncoated and a wide variety of anti-reflection coated plano concave Lenses suitable for your application.
Calcium Fluoride（CaF2）Plano-Concave Lenses
Material CaF2 single crystal
Design Wavelength 587.6nm
Diameter Tolerance +0.0/-0.1mm
Center Thickness Tolerance ±0.1mm
Focal Length Tolerance（EFL） ±1%
Centering Tolerance ＜3 arcmin
Surface Quality 40-20
Bevel 0.2mmX45°
Coating As product list

Dia

EFL

Coating

CT

Clear
Pro No.
Parameter
Dia
EFL
Coating
CT
Delivery time
Compare
Price
Purchase
120306
Parameter list
12.70mm
-18.00mm
Uncoated
2.00mm
In stock
$97.50
120307
Parameter list
12.70mm
-25.00mm
Uncoated
2.50mm
In stock
$91.67
120308
Parameter list
25.40mm
-40.00mm
Uncoated
2.00mm
In stock
$125.00
120309
Parameter list
25.40mm
-75.00mm
Uncoated
2.50mm
In stock
$125.00
120310
Parameter list
25.40mm
-100.00mm
Uncoated
3.00mm
In stock
$125.00
120311
Parameter list
25.40mm
-200.00mm
Uncoated
3.50mm
In stock
$125.00
120312
Parameter list
25.40mm
-500.00mm
Uncoated
4.00mm
In stock
$125.00
120313
Parameter list
12.70mm
-18.00mm
Double-Sided-AR-coating-@3~5μm
2.00mm
In stock
$105.83
120314
Parameter list
12.70mm
-25.00mm
Double-Sided-AR-coating-@3~5μm
2.50mm
In stock
$100.00
120315
Parameter list
25.40mm
-40.00mm
Double-Sided-AR-coating-@3~5μm
2.00mm
In stock
$137.50
120316
Parameter list
25.40mm
-75.00mm
Double-Sided-AR-coating-@3~5μm
2.50mm
In stock
$137.50
120317
Parameter list
25.40mm
-100.00mm
Double-Sided-AR-coating-@3~5μm
3.00mm
In stock
$137.50
120318
Parameter list
25.40mm
-200.00mm
Double-Sided-AR-coating-@3~5μm
3.50mm
In stock
$137.50
120319
Parameter list
25.40mm
-500.00mm
Double-Sided-AR-coating-@3~5μm
4.00mm
In stock
$137.50
