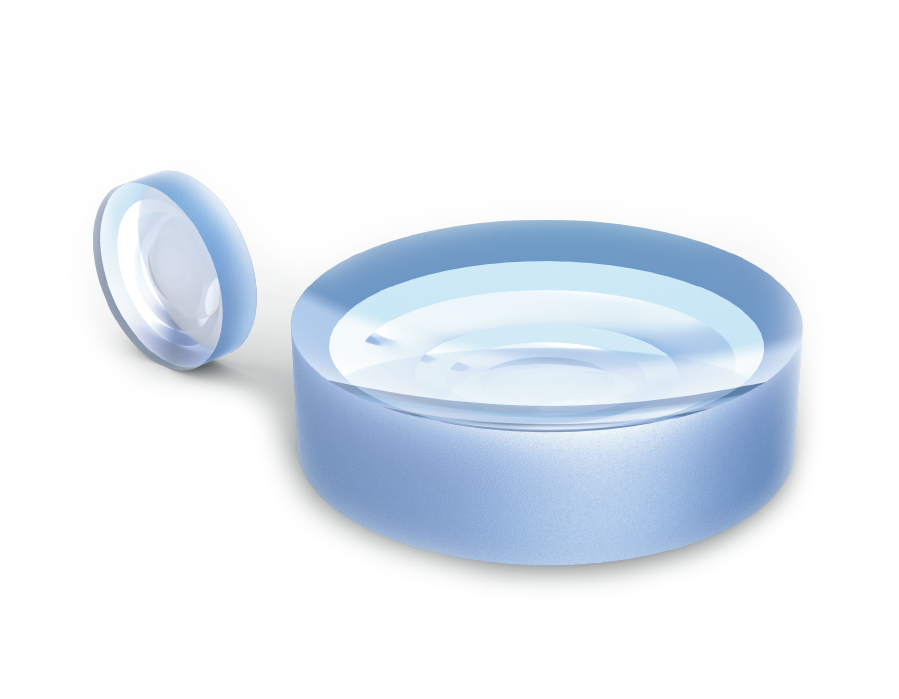

H-K9L Plano-Concave (PCV)Lenses
Plano-Concave Lenses diverge light. One side is flat, the other side is concave. its focal length is negative. Plano-Concave Lenses are ideal for beam expansion applications, light projection, or focal length of expansion. Grand Unified Optics offers uncoated and a wide variety of anti-reflection coated plano concave Lenses suitable for your application.
H-K9L Plano-Concave (PCV)Lenses
Material H-K9L optical glass
Design Wavelength 587.6nm
Diameter Tolerance +0.0/-0.1mm
Center Thickness Tolerance ±0.2mm
Irregularity (P-V) λ/4 @632.8nm
Focal Length Tolerance(EFL) ±2%
Centering Tolerance 3 arcmin
Surface Quality 40-20
Bevel 0.2mmX45°
Coating As product list
Pro No.
Parameter
Dia
EFL
Coating
CT
Delivery time
Compare
Price
Purchase
4.00mm
-5.00mm
Uncoated
1.50mm
In stock
$22.50
4.00mm
-6.30mm
Uncoated
1.50mm
In stock
$20.00
4.00mm
-10.00mm
Uncoated
1.50mm
In stock
$20.00
6.30mm
-8.00mm
Uncoated
1.50mm
In stock
$13.33
6.30mm
-10.00mm
Uncoated
1.50mm
In stock
$13.33
6.30mm
-12.50mm
Uncoated
1.50mm
In stock
$13.33
6.30mm
-16.00mm
Uncoated
1.50mm
In stock
$13.33
6.30mm
-20.00mm
Uncoated
1.50mm
In stock
$13.33
6.30mm
-25.00mm
Uncoated
1.50mm
In stock
$13.33
6.30mm
-40.00mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-12.50mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-16.00mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-20.00mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-25.00mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-31.50mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-40.00mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-50.00mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-63.00mm
Uncoated
1.50mm
In stock
$13.33
10.00mm
-100.00mm
Uncoated
1.50mm
In stock
$13.33
16.00mm
-20.00mm
Uncoated
1.50mm
In stock
$15.83
