 One Piece Optical Post Holder

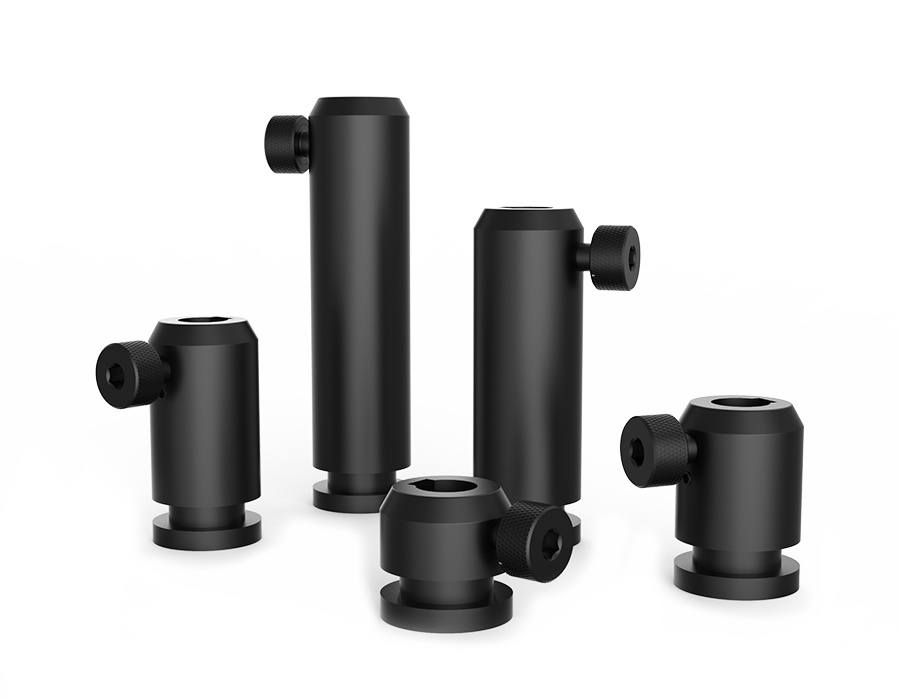

One Piece Optical Post Holder

Product characteristics
1. With a M6 threaded holes on the bottom , which can be easily fixed on various bases, optical tables and breadboards. All the post holder are equipped with a screw knob to fix the mounting post.
2. All support holders are equipped with a positioning spring steel ball and screw knob to fix the post firmly and steadily.
3. From the top to the bottom of the square groove design, when the screw knob is fixed, this forms three coplanar points for stability.
4. Various lengths of post holder can be matched with different heights of post, allowing the required height in various applications.
5. Can be used with small fork type rod seat pressing bar 523601.
6. Internal diameter 12.7mm.
7. 5 different heights are available,height from 25.4mm~101.6mm.

Products Related Download

Select..  

Dia

Select..  

 Φ12.7mm

Weight

Select..  

Clear

Pro No.

Parameter

Dia

Weight

Delivery time

Compare

Price

Purchase

523900

Parameter list

25.4mm

Φ12.7mm

0.03kg

In stock



$12.50



523901

Parameter list

38.1mm

Φ12.7mm

0.04kg

In stock



$13.00



523902

Parameter list

50.8mm

Φ12.7mm

0.06kg

In stock



$14.00



523903

Parameter list

76.2mm

Φ12.7mm

0.07kg

In stock



$14.83



523904

Parameter list

101.6mm

Φ12.7mm

0.08kg

In stock



$16.00


