Home  Products 

Support Rods/Rod Holders and Assemblies

 Mounting Posts

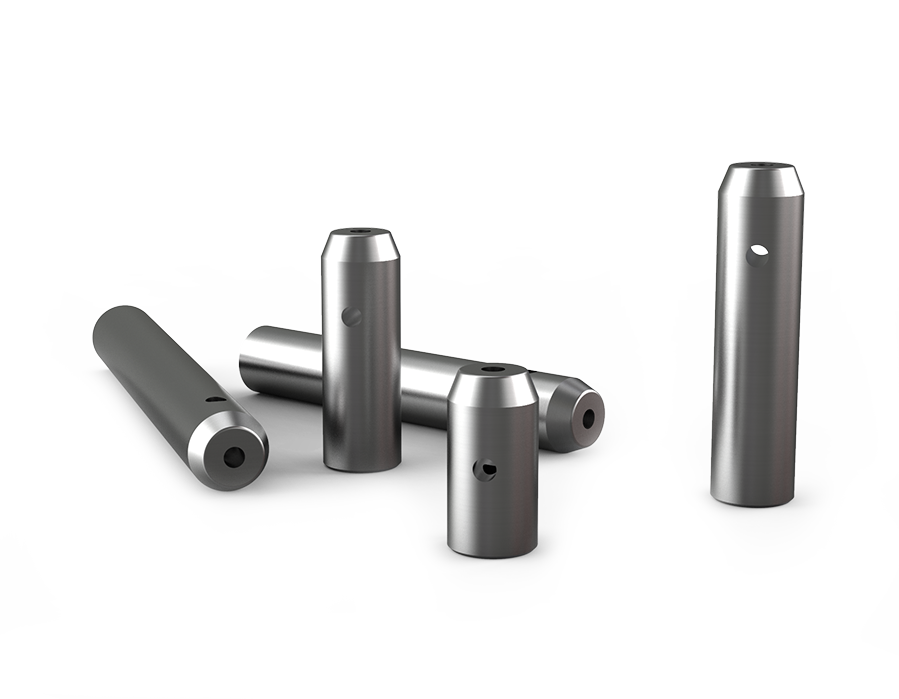

Mounting Posts

Product characteristics
1. Polished stainless steel material, Diameter 12.7mm.
2. One side with M4 thread hole, the other side with M6 thread hole.
3. Side with 3.3mm hole, allowing the use of hex keys to easily lock optical components.
4. Can be directly fixed on a surface or base with threaded holes.
5. Various length mounting posts and matched aluminium post holders can adjusted to various heights.
6. Co-use With height fixing ring, the height of the posts is not affected when rotating.
7. 7 heights are available,height from 25.4mm~152.4mm.
8. Special heights can be customized.

Products Related Download

Select..  

Dia

Select..  

 Φ12.7mm

Weight

Select..  

Clear

Pro No.

Parameter

Dia

Weight

Delivery time

Compare

Price

Purchase

524200

Parameter list

25.4mm

Φ12.7mm

0.02kg

In stock



$3.83



524201

Parameter list

38.1mm

Φ12.7mm

0.03kg

In stock



$4.17



524202

Parameter list

50.8mm

Φ12.7mm

0.05kg

In stock



$4.67



524203

Parameter list

76.2mm

Φ12.7mm

0.07kg

In stock



$5.33



524204

Parameter list

101.6mm

Φ12.7mm

0.09kg

In stock



$6.17



524205

Parameter list

127mm

Φ12.7mm

0.12kg

In stock



$7.67



524206

Parameter list

152.4mm

Φ12.7mm

0.15kg

In stock



$8.50



Fixed Height Pedestal

One Piece Optical Post Holder

U- Type Magnetic Base Post Holder

3 Holes Magnetic Base Post Holder
