 Fixed Height Pedestal

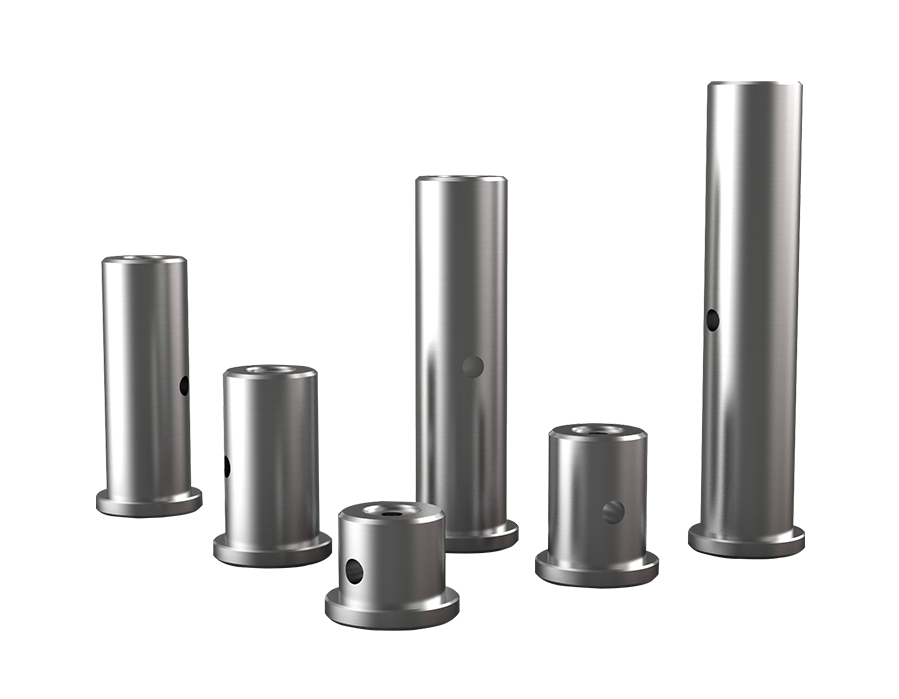

Fixed Height Pedestal

Product characteristics
1. These fixed height pedestal with larger diameter and increased hardness.
2. More stability than traditional mounting posts .
3. With a different thread hole at both ends of the fixed height pedestal for more flexibility in fixing.
4. M6 threaded holes on top and bottom.
5. Stainless steel material, increasing rigidity and stability.
6. Side with through hole, allowing the use of hex keys to easily lock optical components.
7. Used in combination with fork type rod seat pressing bar 523600.
8. Five different heights are available,height from 25.4mm~127mm.
9. Different heights can be customized.

Products Related Download

Select..  

 M6

Select..  

 M6

Select..  

Weight

Select..  

Clear

Pro No.

Parameter

Weight

Delivery time

Compare

Price

Purchase

523850

Parameter list

25.4mm

0.05kg

In stock



$11.17



523851

Parameter list

38.1mm

0.1kg

In stock



$14.67



523852

Parameter list

50.8mm

0.15kg

In stock



$18.00



523853

Parameter list

76.2mm

0.2kg

In stock



$22.00



523854

Parameter list

101.6mm

0.25kg

In stock



$25.17



523855

Parameter list

127mm

0.3kg

In stock



$29.67


