5-Axis Stage

 5-Axis Stage

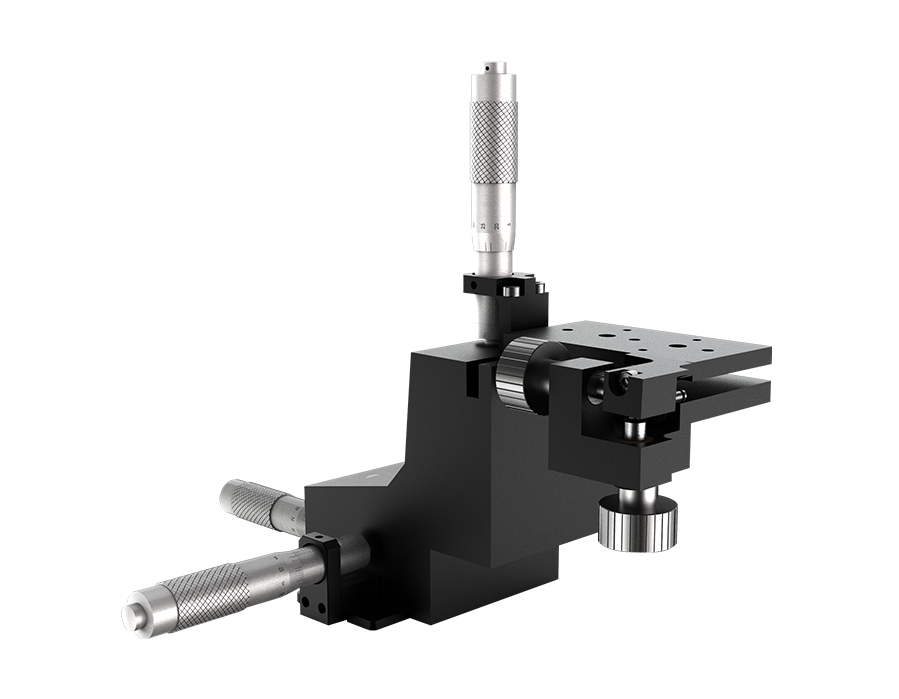

5-Axis Stage

Product characteristics
1. Material : Aluminum alloy
2. Featured with Automatic Spring Restore Structure, Crossed-Roller Bearings, Large Load Capacity and long lifetime.
3. Top and Base are distributed with standard Tapped Mounting Holes

Products Related Download

Platform Size

Select..  

 60mm×37.5mm

Travel1

Select..  

 XYZ：±6.5mm

Pitch Travel2

Select..  

 XYplane±3°；XZplane：±3°

Min Micrometer Graduations

Select..  

 10μm

Clear

Pro No.

Parameter

Platform Size

Travel1

Pitch Travel2

Min Micrometer Graduations

Delivery time

Compare

Price

Purchase

519200

Parameter list

60mm×37.5mm

XYZ：±6.5mm

XYplane±3°；XZplane：±3°

10μm

Consult



$750.00



519201

Parameter list

60mm×37.5mm

XYZ：±6.5mm

XYplane±3°；XZplane：±3°

10μm

Consult



$750.00


