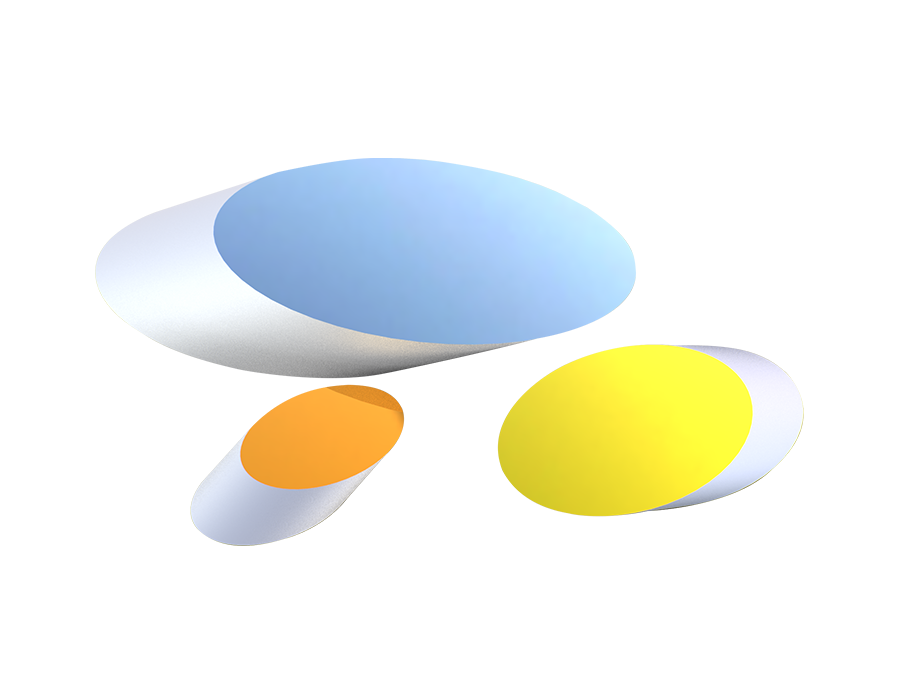

Fused Silica Elliptical Mirror
Elliptical mirrors can be used in astronomical and research applications.  Elliptical mirrors can be used to bend and fold light precisely with minimum distortion. Image Optics provides uncoated and multi-reflective coated Elliptical Mirrors.
Fused Silica Elliptical Mirror
Material Fused Silica
Surface Accuracy λ/10 @ 633 nm
Parallelism <1 arcmin
Surface Quality 10-5
Back Surface Polished
Minor Axis Diameter Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.5mm
Bevel Protective Bevel 0.2~0.5mmX45°
Coating As product list
Pro No.
Parameter
Minor Axis
Major Axis
Thickness
Coating
Delivery time
Compare
Price
Purchase
12.5mm
17.68mm
6.0mm
Uncoated
In stock
$29.17
25.0mm
35.36mm
6.0mm
Uncoated
In stock
$42.50
50.0mm
70.72mm
12.5mm
Uncoated
In stock
$91.67
12.5mm
17.68mm
6.0mm
Dielectric-HR-D02@400~800nm
In stock
$58.33
25.0mm
35.36mm
6.0mm
Dielectric-HR-D02@400~800nm
In stock
$96.67
50.0mm
70.72mm
12.5mm
Dielectric-HR-D02@400~800nm
In stock
$163.33
12.5mm
17.68mm
6.0mm
Dielectric-HR-D03@750~1250nm
In stock
$58.33
25.0mm
35.36mm
6.0mm
Dielectric-HR-D03@750~1250nm
In stock
$96.67
50.0mm
70.72mm
12.5mm
Dielectric-HR-D03@750~1250nm
In stock
$163.33
