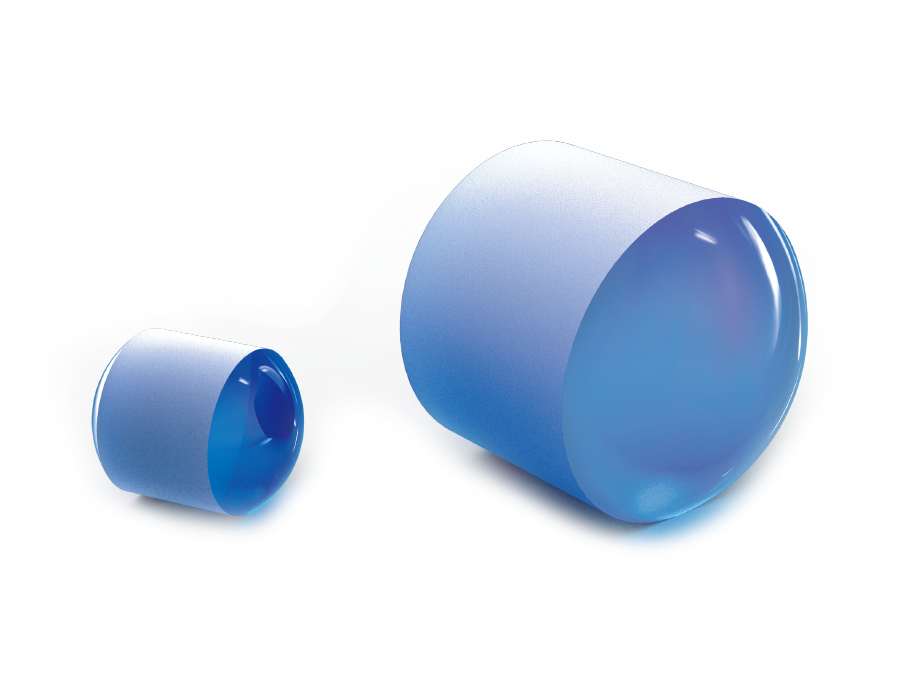

H-K9L Drum Lenses
Drum lenses are spherical at both ends, which can provide a position surface along the optical axis. Ball lenses are formed by grinding an outer circle on a ball lens in order to mount conveniently. These are ideal for optical transmission in fiber communication applications
H-K9L Drum Lenses
Material H-K9L Optical Glass
Design Wavelength 587.6nm
Diameter Tolerance +0.0/- 0.05mm
Center Thickness Tolerance（L） ±0.005mm
Irregularity (P-V) λ/4 @632.8nm
Surface Quality 20-10
Coating As product list

Dia

EFL

Coating

CT

Clear
Pro No.
Parameter
Dia
EFL
Coating
CT
Delivery time
Compare
Price
Purchase
165000
Parameter list
2.00mm
1.83mm
Uncoated
2.50mm
In stock
$25.00
165001
Parameter list
2.00mm
2.20mm
Uncoated
3.00mm
In stock
$25.00
165002
Parameter list
3.00mm
2.93mm
Uncoated
4.00mm
In stock
$29.17
165003
Parameter list
4.00mm
3.67mm
Uncoated
5.00mm
In stock
$32.50
165004
Parameter list
5.00mm
5.87mm
Uncoated
8.00mm
In stock
$35.83
165005
Parameter list
2.00mm
1.83mm
AR@400~700nm
2.50mm
In stock
$30.83
165006
Parameter list
2.00mm
2.20mm
AR@400~700nm
3.00mm
In stock
$30.83
165007
Parameter list
3.00mm
2.93mm
AR@400~700nm
4.00mm
In stock
$35.83
165008
Parameter list
4.00mm
3.67mm
AR@400~700nm
5.00mm
In stock
$39.17
165009
Parameter list
5.00mm
5.87mm
AR@400~700nm
8.00mm
In stock
$45.83
165010
Parameter list
2.00mm
1.83mm
AR@650~1050nm
2.50mm
In stock
$30.83
165011
Parameter list
2.00mm
2.20mm
AR@650~1050nm
3.00mm
In stock
$30.83
165012
Parameter list
3.00mm
2.93mm
AR@650~1050nm
4.00mm
In stock
$35.83
165013
Parameter list
4.00mm
3.67mm
AR@650~1050nm
5.00mm
In stock
$39.17
165014
Parameter list
5.00mm
5.87mm
AR@650~1050nm
8.00mm
In stock
$45.83
165015
Parameter list
2.00mm
1.83mm
AR@1000~1650nm
2.50mm
In stock
$30.83
165016
Parameter list
2.00mm
2.20mm
AR@1000~1650nm
3.00mm
In stock
$30.83
165017
Parameter list
3.00mm
2.93mm
AR@1000~1650nm
4.00mm
In stock
$35.83
165018
Parameter list
4.00mm
3.67mm
AR@1000~1650nm
5.00mm
In stock
$39.17
165019
Parameter list
5.00mm
5.87mm
AR@1000~1650nm
8.00mm
In stock
$45.83
