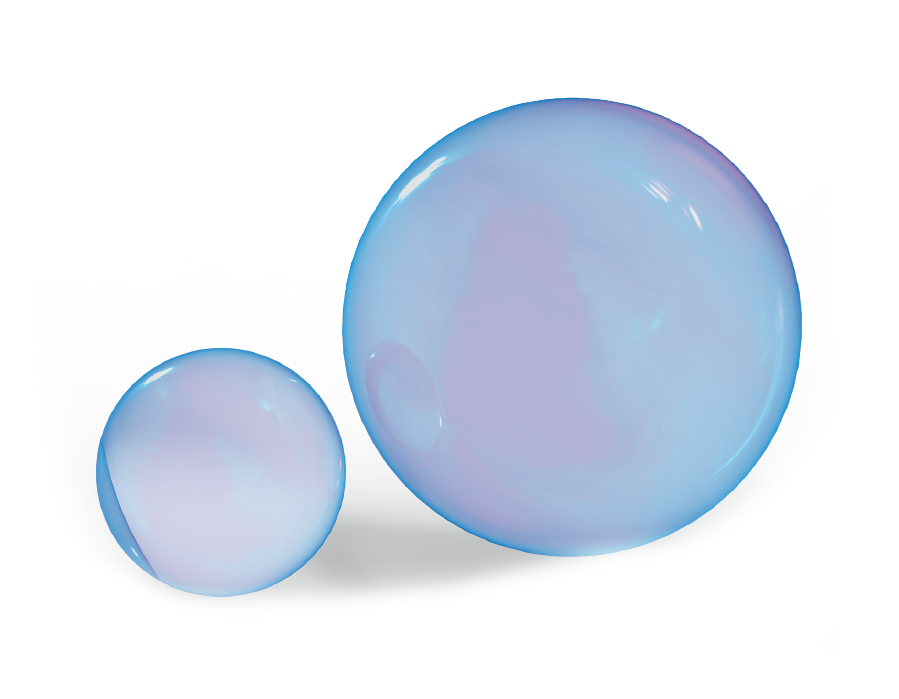

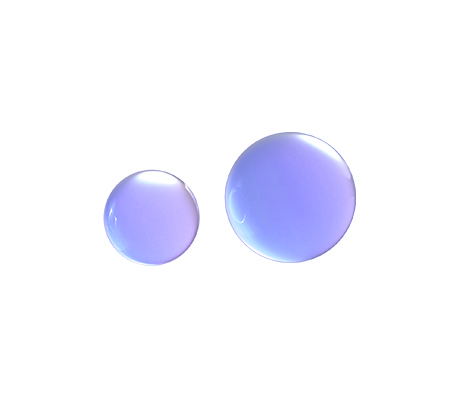

UV Fused Silica Ball Lenses

Ball lenses are commonly used to improve signal quality and coupling efficiencey between an optical fiber emitter and optical fiber detector, which is used in endoscopy, bar code scanning, pre-processing material of Aspheric Lens etc. The short back focal length can be used to reduce the necessary distance from the ball lens to the optical fiber

Material UV Fused Silica

Design Wavelength @ 587.6nm

Diameter Tolerance +/- 0.005mm

Roundness ±0.003mm

Irregularity (P-V) λ/4 @632.8nm

Surface Quality 40-20

Coating Uncoated

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

 Uncoated

BFL

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

BFL

Delivery time

Compare

Price

Purchase

160010

Parameter list

1.00mm

0.79mm

Uncoated

0.29mm

In stock



$29.17



160011

Parameter list

2.00mm

1.59mm

Uncoated

0.59mm

In stock



$22.50



160012

Parameter list

3.00mm

2.39mm

Uncoated

0.89mm

In stock



$22.50



160013

Parameter list

4.00mm

3.18mm

Uncoated

1.18mm

In stock



$25.00



160014

Parameter list

5.00mm

3.98mm

Uncoated

1.48mm

In stock



$25.00



160015

Parameter list

6.00mm

4.77mm

Uncoated

1.77mm

In stock



$30.83



160016

Parameter list

7.00mm

5.57mm

Uncoated

2.07mm

In stock



$30.83



160017

Parameter list

8.00mm

6.36mm

Uncoated

2.36mm

In stock



$30.83



160018

Parameter list

9.00mm

7.16mm

Uncoated

2.66mm

In stock



$35.83



160019

Parameter list

10.00mm

7.95mm

Uncoated

2.95mm

In stock



$39.17



Curve download

Plano-Concave (PCV)Lenses

Positive Achromatic Cylinder Lenses

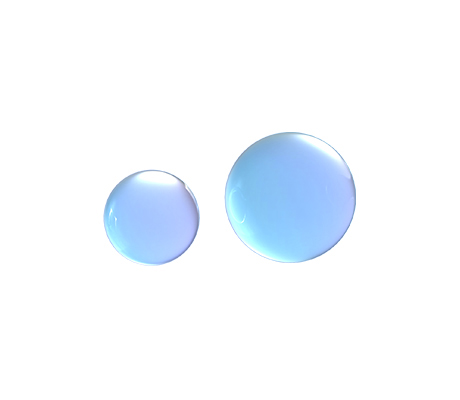

H-K9L Ball Lenses
