 Calcium Fluoride （CaF2）Double-Concave (DCV) Lenses

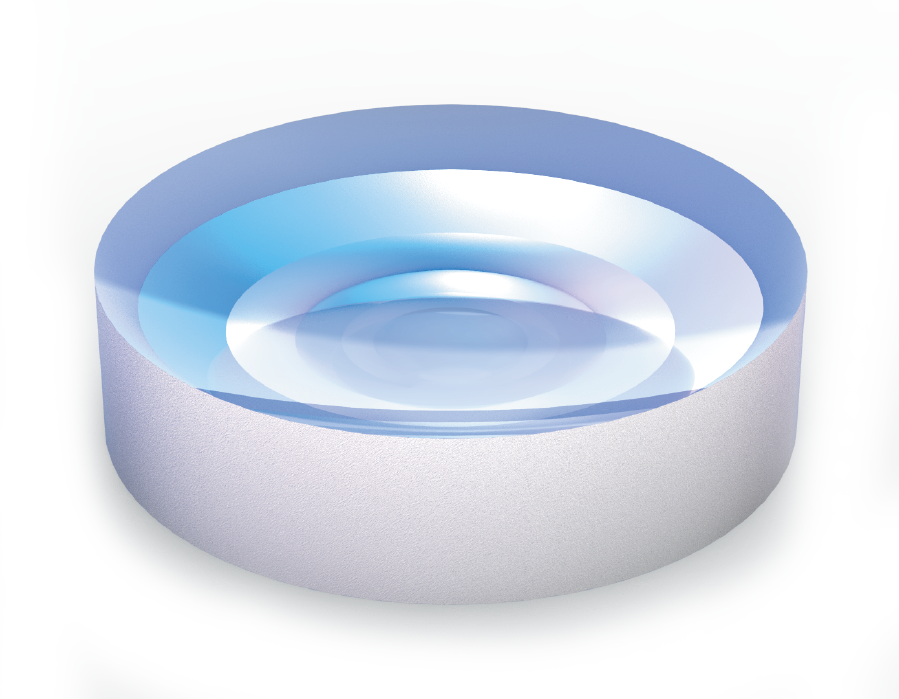

Calcium Fluoride （CaF2）Double-Concave (DCV) Lenses

Double-Concave Lenses can diverge the light, its focal length is nedtive, which is made of two concave surfaces with same radius.These lenses are ideal for the application of beam expansion, light projection or the expansion of the focal length. Grand Unified Optics offers uncoated or AR coatings Double-Concave Lenses for your appliation.

Material CaF2 single crystal

Design Wavelength 587.6nm

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.1mm

Focal Length Tolerance（EFL） ±1%

Centering Tolerance ＜3 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

130070

Parameter list

12.70mm

-15.00mm

Uncoated

2.50mm

In stock



$108.33



130071

Parameter list

12.70mm

-25.00mm

Uncoated

3.00mm

In stock



$108.33



130072

Parameter list

25.40mm

-30.00mm

Uncoated

2.50mm

In stock



$125.00



130073

Parameter list

25.40mm

-50.00mm

Uncoated

3.00mm

In stock



$125.00



130074

Parameter list

12.70mm

-15.00mm

Double-Sided-AR-coating-@3~5μm

2.50mm

In stock



$116.67



130075

Parameter list

12.70mm

-25.00mm

Double-Sided-AR-coating-@3~5μm

3.00mm

In stock



$116.67



130076

Parameter list

25.40mm

-30.00mm

Double-Sided-AR-coating-@3~5μm

2.50mm

In stock



$137.50



130077

Parameter list

25.40mm

-50.00mm

Double-Sided-AR-coating-@3~5μm

3.00mm

In stock



$137.50



Curve download
