Adjustable Mounts for Cylindrical Lens

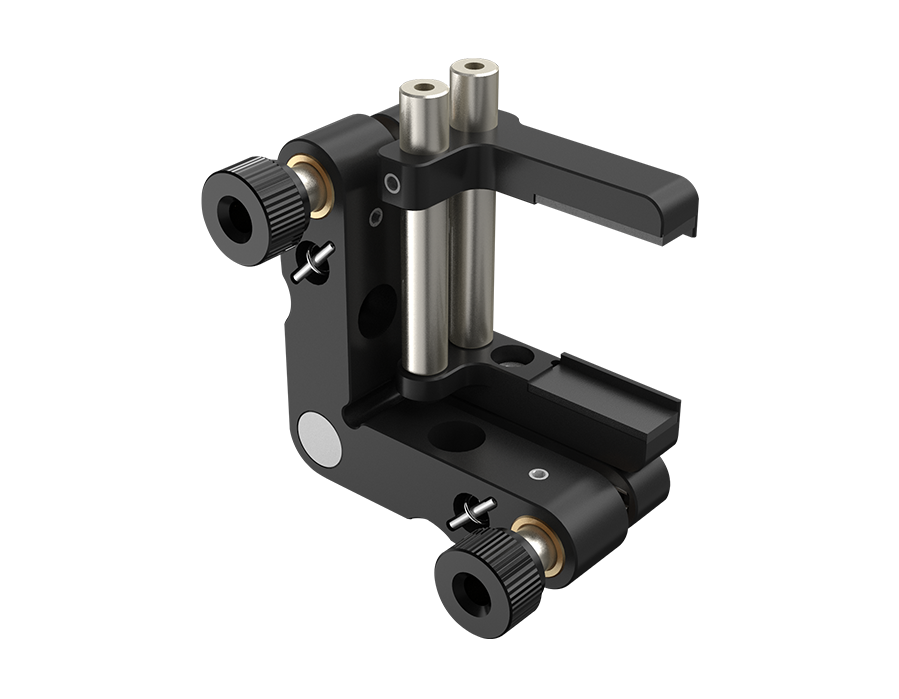

Cylindrical lens mounts are commonly used to mount cylindrical lenses or other rectangular optics. Each mount consists of two fixed arms with rubber pads. The upper retaining arm slides along the post and is fitted with a set screw to attach to the post. The fixed arm below is fixed, and the bottom is equipped with M4 threaded holes, which can be connected to Φ12.7 mm stainless steel optical posts. If you need to install higher optical components, you can add a Φ6 mm coaxial system mounting post to the original coaxial post to increase the length of the post. The adjustment frame has two adjustment knobs, which can adjust the pitch and yaw angles of the cylindrical lens within an angle of ±4°.

Product characteristics
1. Driven by two adjusters, Tip/Tilt Adjustment Range of ±4°
2. Rubber Pads Increase Contact Area with Optic
3. Right- and Left-Handed Configurations Available
4. Two M4 Counterbores at bottom Enable Post Mounting
5. Mounting Optics up to 33.0 mm Tall
Adjustable Mounts for Cylindrical Lens

Max Optic Height

Configuration

Weight

Pro No.
Parameter
Max Optic Height
Configuration
Weight
Delivery time
Compare
Price
Purchase
33mm
Righ-Handed
0.1kg
In stock
$96.00
33mm
Left-Handed
0.1kg
In stock
$96.00
