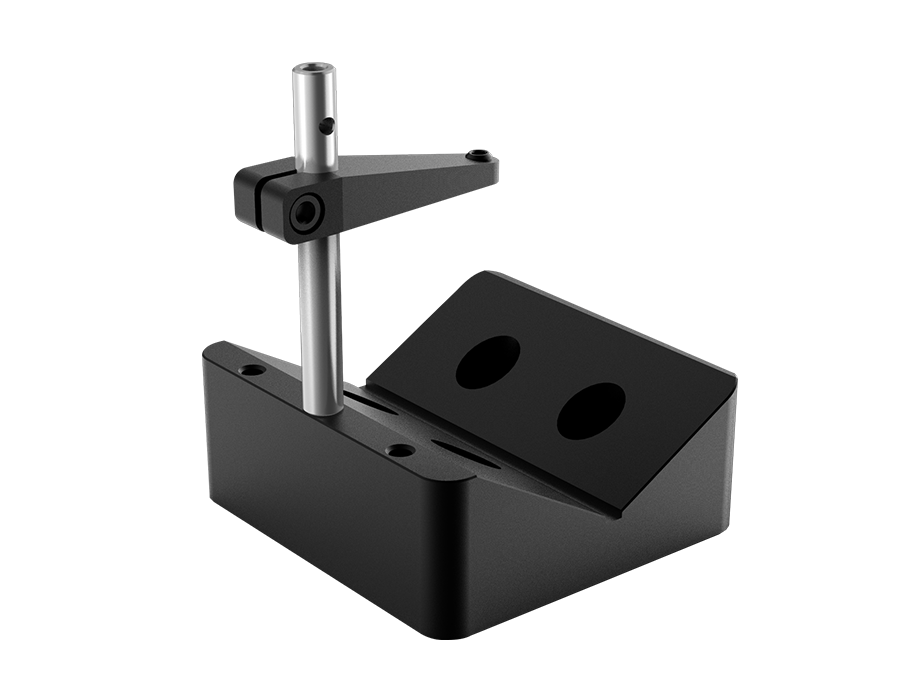

Post Mountable V-Clamps
Post Mountable V-Clamps are often used to hold cylindrical optical or mechanical components. Post Mountable V-Clamp 523000, by adjusting the height of the small pressing arm, can hold cylinders with a diameter of 7mm~52 mm;Post Mountable V-Clamp 523001, by adjusting the height of the pressing arm, can hold a diameter of 0.5mm~20 mm Cylinder,Post Mountable V-Clamp 523002, by adjusting the height of the small pressing arm, it can hold the cylinder with a diameter of 0.8-9.5mm, with M6 waist groove, M4 or M6 threaded holes, can be installed on a breadboard or on standard optomechanical parts such as bases.
Product characteristics
1. Clamps Cylindrical Objects Ranging from Φ0.5mm to Φ50.8 mm
2. Post Mountable via M4 Tapped Holes
3. One Clamping Arm Included with Each Mount
Product characteristics
1. Clamps Cylindrical Objects Ranging from Φ0.5mm to Φ50.8 mm
2. Post Mountable via M4 Tapped Holes
3. One Clamping Arm Included with Each Mount
Pro No.
Parameter
Clamping Size of Optics
Weight
Delivery time
Compare
Price
Purchase
