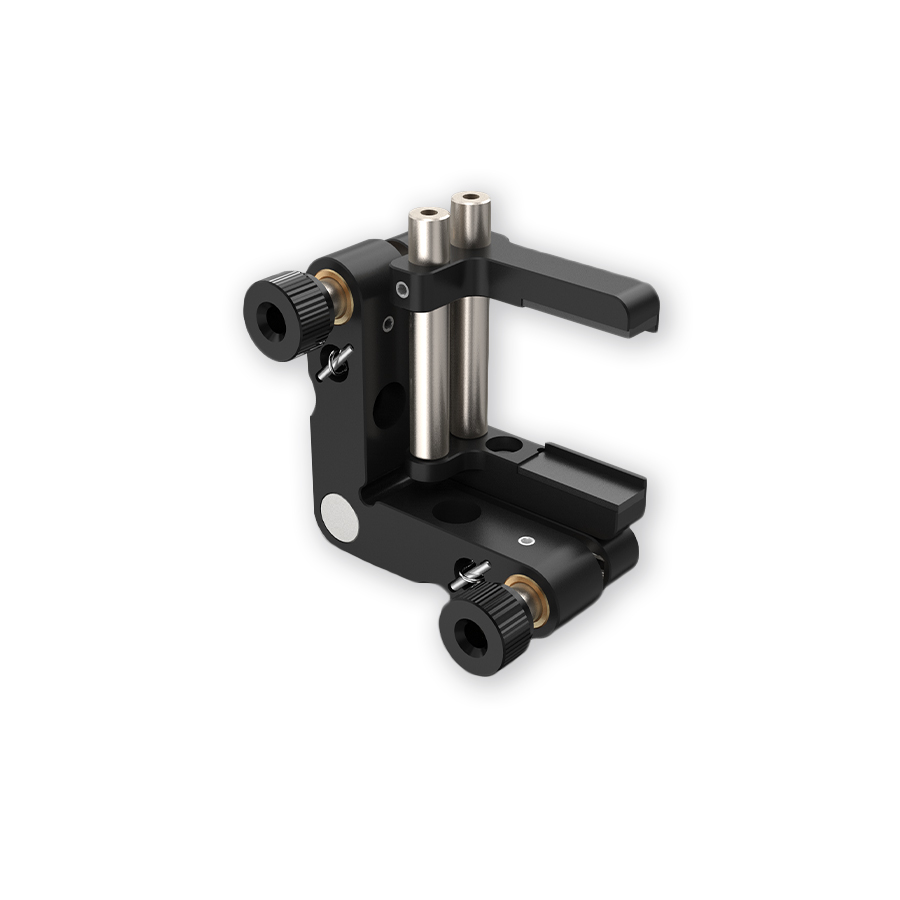

Righ-Handed Adjustable Mounts for Cylindrical Lens Max Optic Height 33mm





Share

WeChat

Scan and add Wechat

Righ-Handed Adjustable Mounts for Cylindrical Lens Max Optic Height 33mm

Price Option

Product No. 523300

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Max Optic Height 33mm

Configuration Righ-Handed

Weight 0.1kg

Adjustable Mounts for Cylindrical Lens Max Optic Height 40mm

Adjustable Mounts for Cylindrical Lens Max Optic Height 66mm

Left-Handed Adjustable Mounts for Cylindrical Lens Max Optic Height 33mm

Kinematic Mounts for Rectangular Optics Max Optic Height 12.7mm

Adjustable-Height Mounts are ideal for mounting cylindrical lenses of various sizes。Driven by two adjusters, Tip/Tilt Adjustment Range of ±4°。Rubber Pads Increase Contact Area with Optic。Right- and Left-Handed Configurations Available。Two M4 Counterbores at bottom Enable Post Mounting。Mounting Optics up to 33.0 mm Tall。
