Irises / Apertures / Slits

 Variable Slits

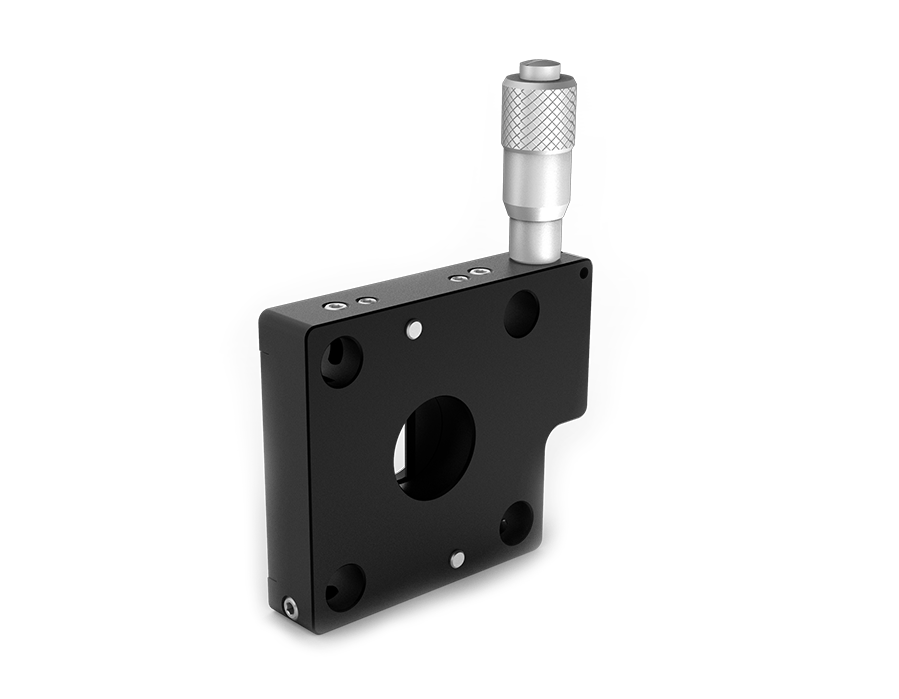

Variable Slits

The unique design of theVariable Slit provides a 1:1 relationship between precision micrometer actuation and slit width variation, accurate to 0.01mm. The actual width of the slit ranges from fully closed to 6 mm, and is adjusted by 0.5 mm per revolution until the two blades touch when fully closed. However, due to the structural defects of the blade and the parallelism of the blade, the slit opening remains concentric with the threaded through hole as the slit width changes. This slim mount is suitable for use in compact optics.

Product characteristics
1. Fine Micrometer Adjustment of Slit Width
2. Slit Width: 0mm to 6 mm
3. The slit opening remains centered on the SM-threaded aperture as the slit width is varied

Products Related Download

Slit Width Range

Select..  

 0-6mm

Weight

Select..  

 0.05kg

Clear

Pro No.

Parameter

Slit Width Range

Weight

Delivery time

Compare

Price

Purchase

528050

Parameter list

0-6mm

0.05kg

In stock



$280.00


