Achromatic Waveplate

 VIS Achromatic Waveplate

VIS Achromatic Waveplate

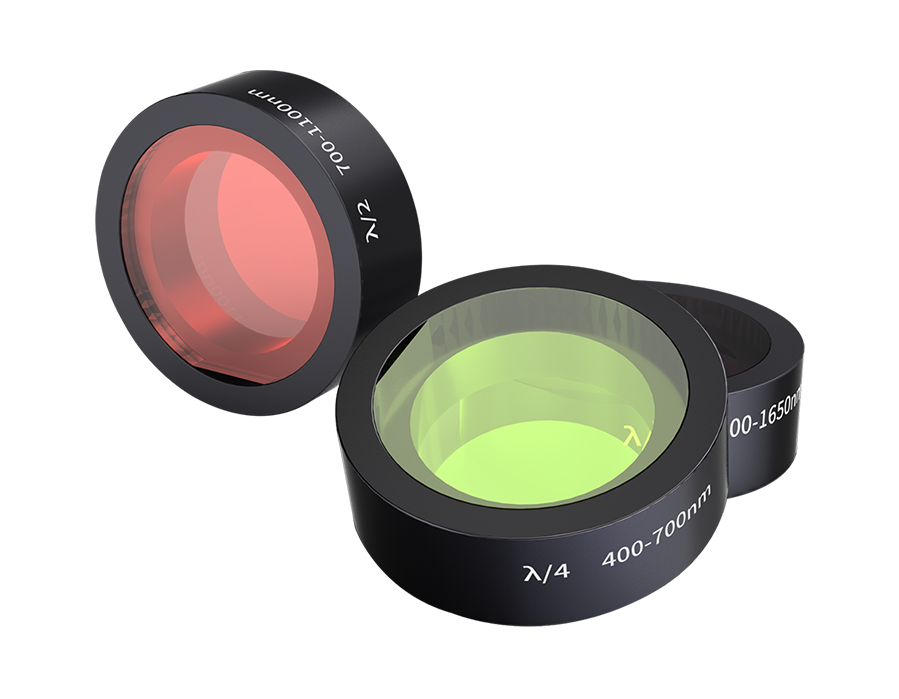

Grand Unified Optics( Beijing)Co., Ltd pushed out Diameter 25.4mm λ/2 and λ/4 achromatic waveplate ,it is composed of quartz crystal and magnesium fluoride (MgF2),which makes it is not sensitive to the wavelength ，the nearly flat spectral response can be obtained in the working wavelength range. There are 400-700nm、700-1100nm、1100-1650nm wavelength range for your choice according to your application , at the same time, we can also customize the achromatic waveplate for you based on your requirement

Material Quartz Crystal＆MgF2

Angle of Incidence 0°

Clear Aperture CA (mm) 10mm

Surface Quality 40/20

Parallelism ＜10 arcsec Diameter Tolerance

Wavefront Aberration λ/8@632.8nm

AR Coating R＜0.5%@Designed Wavelength

Products Related Download

Dia

Select..  

 Φ25.4mm

Design Wavelength

Select..  

 400nm-700nm

Retardance

Select..  

Material

Select..  

 Quartz-Crystal&MgF2

Clear

Pro No.

Parameter

Dia

Design Wavelength

Retardance

Material

Delivery time

Compare

Price

Purchase

338000

Parameter list

Φ25.4mm

400nm-700nm

λ/2

Quartz-Crystal&MgF2

Consult



$687.50



338001

Parameter list

Φ25.4mm

400nm-700nm

λ/4

Quartz-Crystal&MgF2

Consult



$687.50


