Tip and Tilt Prism Platform Mounts

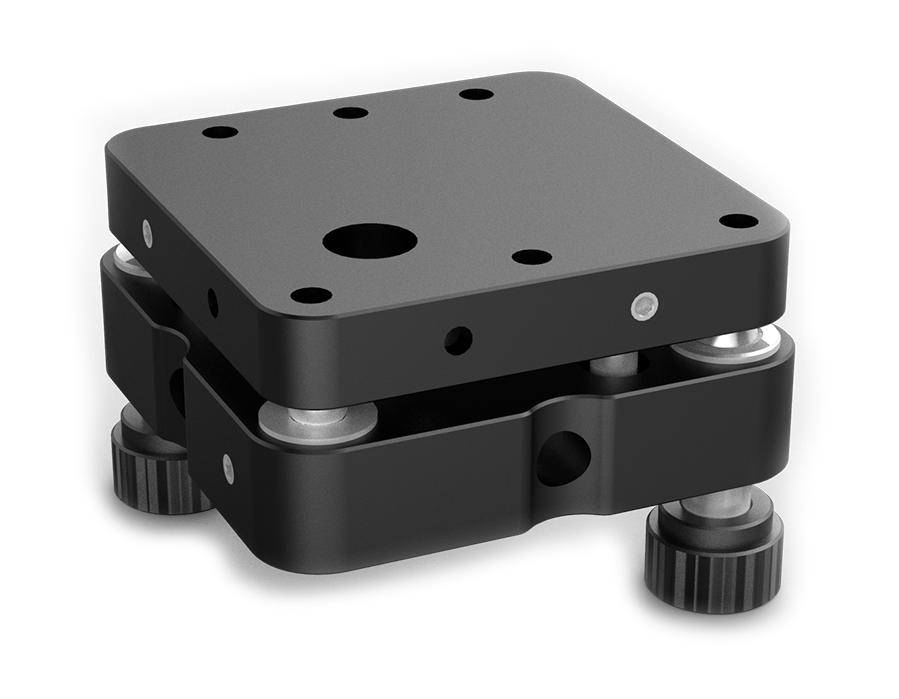

TheTip and Tilt Prism Platform Mounts are suitable for installing prisms, cubes and other optical components. With a mounting plate, the adjustable pressure arm can install optical components with a maximum height of 50.8mm, and two M6 X 0.25 adjustment screws achieve ±4° pitch and tilt adjustment, 0.4°/turn adjustment accuracy. There are 5 M4 threaded through holes on the mounting plate for mounting the pressing arm. The end of the pressing arm is provided with a nylon head fixing screw to press the optical element on the mounting plate. The positioning/tilting platform-type prism base and the cylindrical lens adjustment frame can realize the adjustment of pitch (Pitch), yaw (Yaw), and roll (Roll) of the clamped optical components.

Product characteristics
1. Two Adjusters for ±3° Fine Tip and Tilt Control
2. Platform Can Be Oriented Horizontally or Vertically
3. For use with 527900 and 527901
Tip and Tilt Prism Platform Mounts

Platform Size

Weight

Pro No.
Parameter
Platform Size
Weight
Delivery time
Compare
Price
Purchase
47x47mm
0.11kg
In stock
$64.00
74.2x74.2mm
0.2kg
In stock
$106.00

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:

This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
