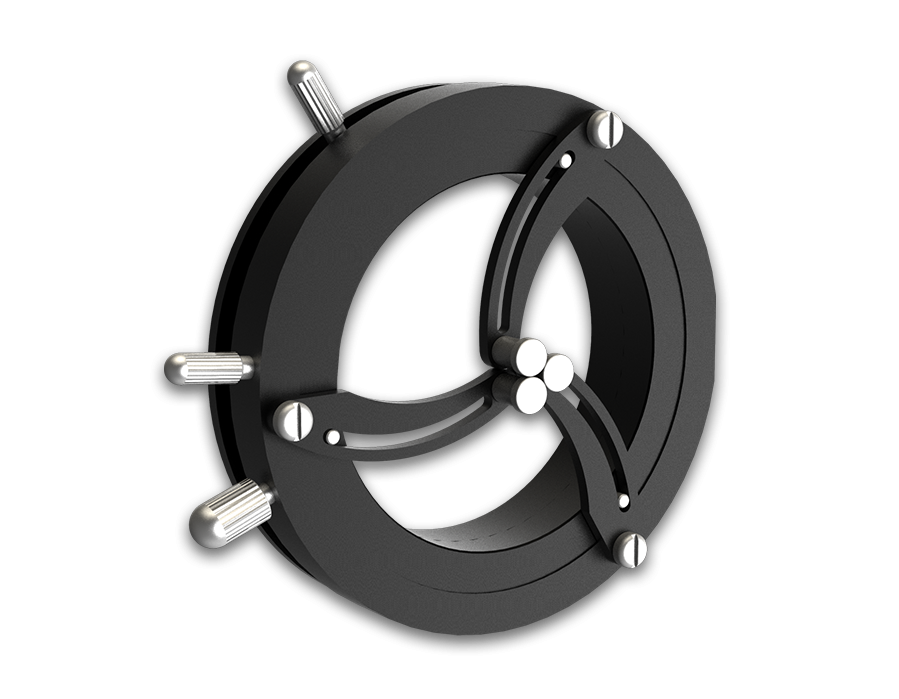

Self-Centering Lens Mounts

The self-centering lens mount is mainly used for centering optical components. Any lens can reach the inner diameter of the lens holder itself, which can be conveniently, accurately, quickly and repeatedly placed and fixed. The center position has nothing to do with the diameter of the lens. When the lens is positioned in the V-groove, the spring on the lens holder can automatically and easily restore the fixed lens.

Product characteristics
1. Two specifications are available, maximum holding optic up to Φ76.2mm
2. V-groove design, the spring-loaded fingers firmly grip the optic
3. Optical Centerline Remains Constant Regardless of Optical Diameter
4. Concentricity≤±0.1mm

Products Related Download

Clamping Optic Size

Select..  

Weight

Select..  

Clear

Pro No.

Parameter

Clamping Optic Size

Weight

Delivery time

Compare

Price

Purchase

521150

Parameter list

Φ4~45mm

0.1kg

In stock



$123.00



521151

Parameter list

Φ8~76mm

0.17kg

Consult



$207.00


