Optical Mirror Mounts

 Clamping Ring Fixed Optical Mounts

Clamping Ring Fixed Optical Mounts

Product characteristics

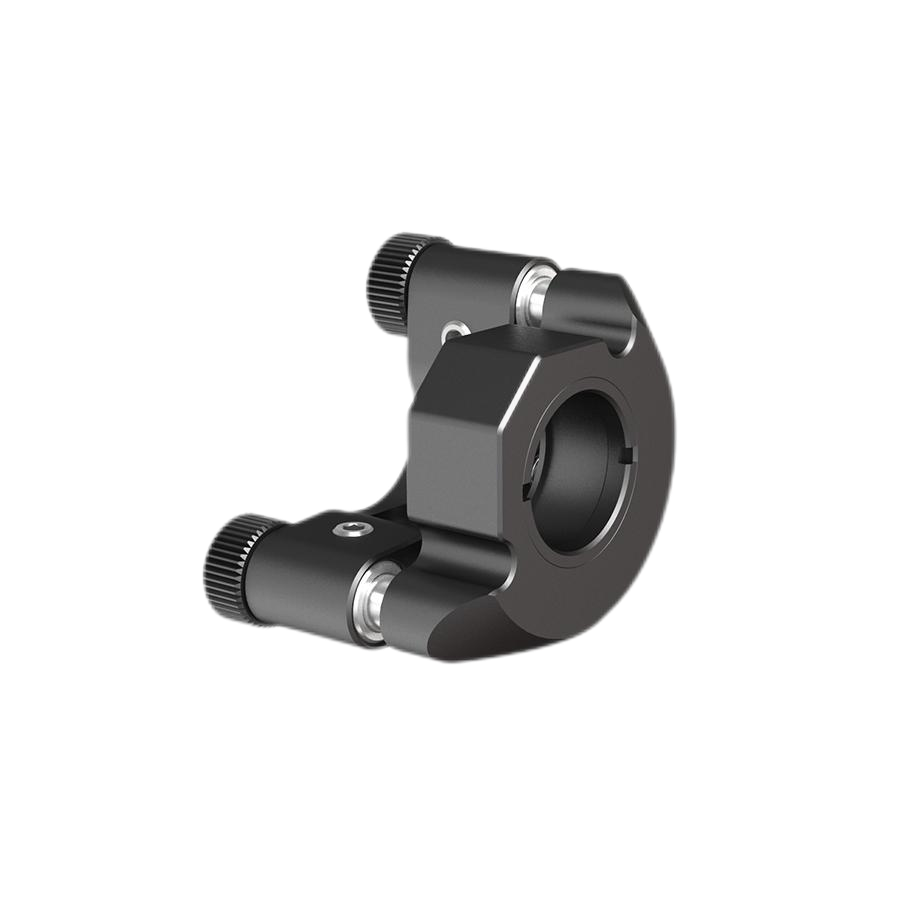

1. Allowing threaded rings for different size optical components to be fixed in a firm position;
2. Especially suited for thin optical components. An M4 countersunk hole on both sides of base allows for easy fixing;
3. Rotation of the stainless steel high precision screw to move forward;
4. Oil is applied between the gaps allowing negligable screw gap;
5. Stainless steel screw and bronze ring bushing combined together for smoother operation and long-term stability;
6. Using stainless steel rods as sliding guides for a smooth action;
7. Avaliable for Maximum thickness of optical components: 4mm;
8. Tip/Tilt Range:±3.5°

Products Related Download

Optics Diameter

Select..  

Adjustable Axis

Select..  

 2

Clear

Pro No.

Parameter

Optics Diameter

Adjustable Axis

Delivery time

Compare

Price

Purchase

520000

Parameter list

Φ12.7mm

In stock



$52.50



520004

Parameter list

Φ25.4mm

In stock



$60.00



Standard Optical Mounts

XY Translation Mounts

Self-Centering Lens Mounts

Fixed Lens Mounts

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:
This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
