Focal Length35mm 1
Price Option
Product No. 680004
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 35mm
- F/# 1.4
- Max. sensor size 1”
- Mount C
- Working Distance 0.3m～∞
- Working Wavelength 700-1700nm
- FOV 26.54°×21.23°×15.92°
- Distrotion -1.94%@y=8mm
- Weight 189g
| No. | 项目 | 规格 | |
| 1 | 最大传感器尺寸 | 1"(16.4mm) | |
| 2 | 焦距 | 35mm | |
| 3 | 接口 | C-Mount | |
| 4 | 光圈范围 | F1.4-F22 | |
| 5 | 对焦范围 | 0.3m~∞ | |
| 6 | 视场角 (对角×水平×垂直) |
1" | 26.54°×21.23°×15.92° |
| 2/3'' | 18.03°×14.43°10.82° | ||
| 1/2'' | 13.19°×10.55°×7.91° | ||
| 7 | 对象大小 | 1" | 135.934×108.747×81.56mm |
| (在最近对焦距离处) | 2/3'' | 91.748×73.399×55.05mm | |
| 1/2'' | 66.93×53.55×40.16mm | ||
| 8 | 后焦距（in air） | 21.49mm | |
| 9 | 操作方式 | 对焦 | 手动 |
| 光圈 | 手动 | ||
| 10 | 畸变率 | 1" | -1.94%@y=8mm |
| 2/3'' | -0.84%@y=4.4mm | ||
| 1/2'' | -0.49%@y=4.0mm | ||
| 11 | 滤镜尺寸 | M46×0.75 | |
| 12 | 工作波长 | 700-1700nm | |

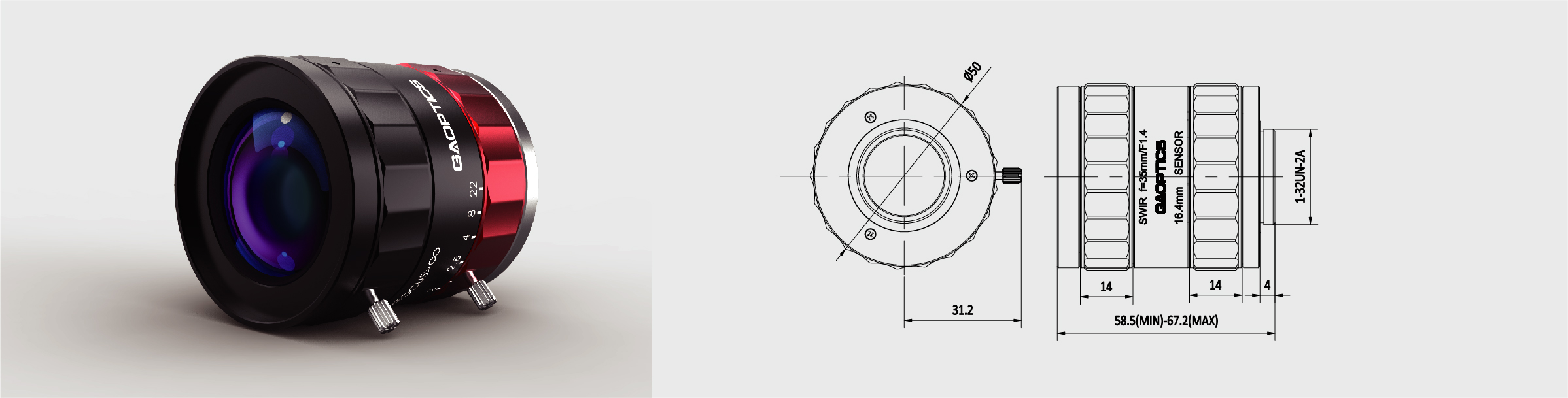

| 13 | 镜头尺寸（宽×长） | 56.2×67.2mm | |
| 14 | 重量 | 189g | |
| 15 | 工作温度 | -10℃～+50℃ | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) | ||||
| 300mm | -0.12023 | 1.53 | 1.55 | ||||
| 350mm | -0.10255 | 2.09 | 2.11 | ||||
| 400mm | -0.08940 | 2.72 | 2.76 | ||||
| 450mm | -0.07923 | 3.44 | 3.50 | ||||
| 500mm | -0.07115 | 4.25 | 4.32 | ||||
| 550mm | -0.06456 | 5.14 | 5.24 | ||||
| 600mm | -0.05900 | 6.11 | 6.24 | ||||
| 650mm | -0.05447 | 7.16 | 7.32 | ||||
| 700mm | -0.05052 | 8.30 | 8.50 | ||||
| 750mm | -0.04710 | 9.52 | 9.77 | ||||
GA 1" SWIR lens is designed for 1" imaging sensor, imaging size diameter up to 16.4mm, F#1.4. Its working wavelength is from 700-1700nm, can match most of area scan SWIR cameras.
