Focal Length25mm 1
Price Option
Product No. 680003
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 25mm
- F/# 1.4
- Max. sensor size 1”
- Mount C
- Working Distance 0.3m～∞
- Working Wavelength 700-1700nm
- FOV 36.66°×29.35°×22.04°
- Distrotion -3.09%@y=8mm
- Weight ＜200g
| No. | Item | Specifications | |
| 1 | Max. Sensor size | 1"(16.2mm) | |
| 2 | Focal Length | 25mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F1.4-F22 | |
| 5 | Focusing Range | 0.3m~∞ | |
| 6 | FOV(Diagonal x H×V) | 1" | 36.46°×29.24°×21.97° |
| 2/3" | 25.15°×20.15°×15.13° | ||
| 1/2'' | 18.32°×14.67°×11.01° | ||
| 7 | Object Size (at the minimum focus distance) | 1" | 198.59×156.1×116.22mm |
| 2/3" | 133.56x106.37x79.51mm | ||
| 1/2'' | 96.57×77.08×57.71mm | ||
| 8 | BFL（in air） | 20.73mm | |
| 9 | Operation | Focus | Manual |
| Aperture | M-Iris | ||

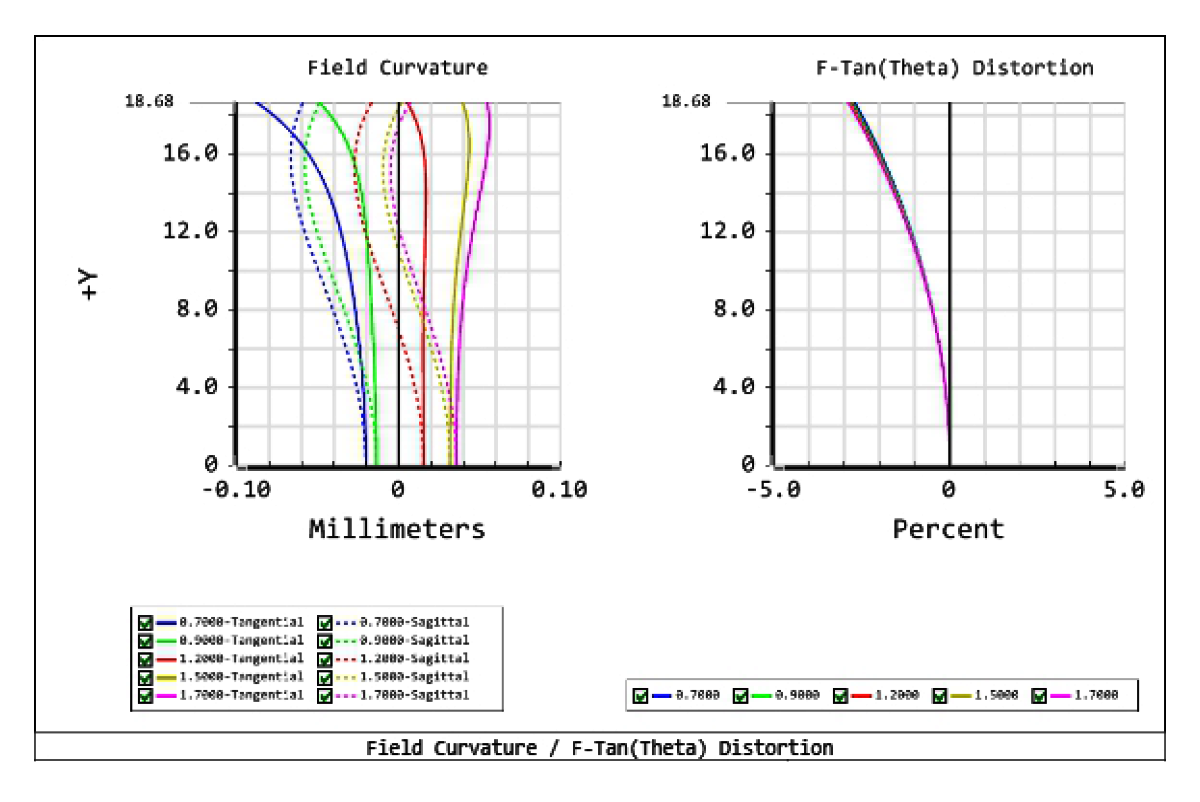

| 10 | Distortion | 1" | -2.69%@y=8mm |
| 2/3" | -1.24%@y=5.5mm | ||
| 1/2'' | -0.65%@y=4.0mm | ||
| 11 | Working Distance | 700~1700nm | |

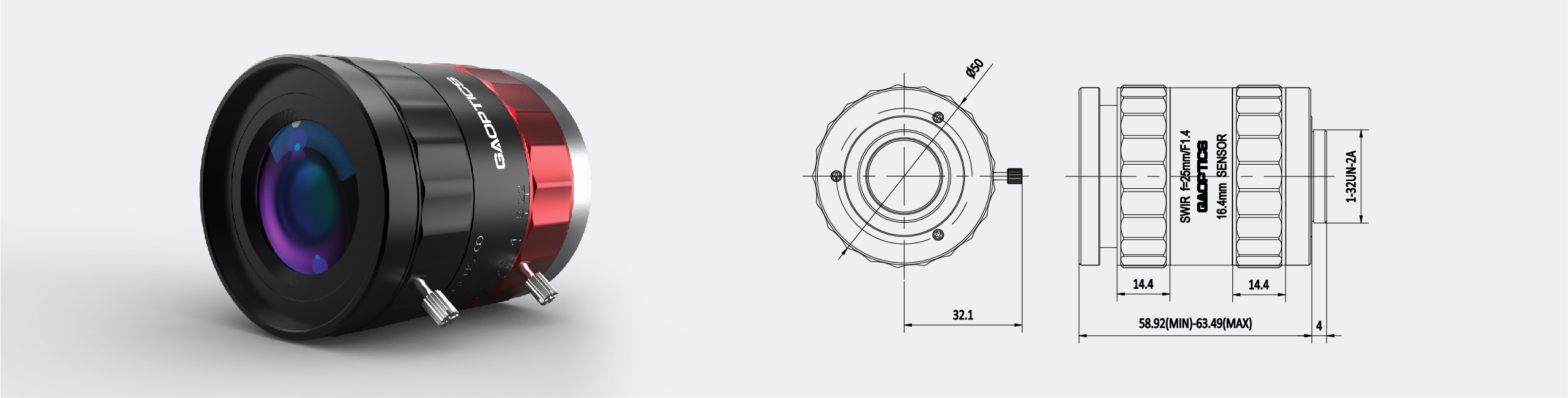

| 12 | Lens Size(W x L) | 57.1×67.49mm | |
| 13 | Weight | <200g | |
| 14 | Work Temperature | -10℃～+50℃ | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) | ||||
| 300mm | -0.08340 | 2.99 | 3.05 | ||||
| 350mm | -0.07146 | 4.07 | 4.16 | ||||
| 400mm | -0.06252 | 5.30 | 5.45 | ||||
| 450mm | -0.05556 | 6.70 | 6.91 | ||||
| 500mm | -0.05000 | 8.26 | 8.54 | ||||
| 550mm | -0.04545 | 9.98 | 10.36 | ||||
| 600mm | -0.04166 | 11.86 | 12.34 | ||||
| 650mm | -0.03845 | 13.89 | 14.51 | ||||
| 700mm | -0.03570 | 16.09 | 16.86 | ||||
| 750mm | -0.03332 | 18.44 | 19.39 | ||||

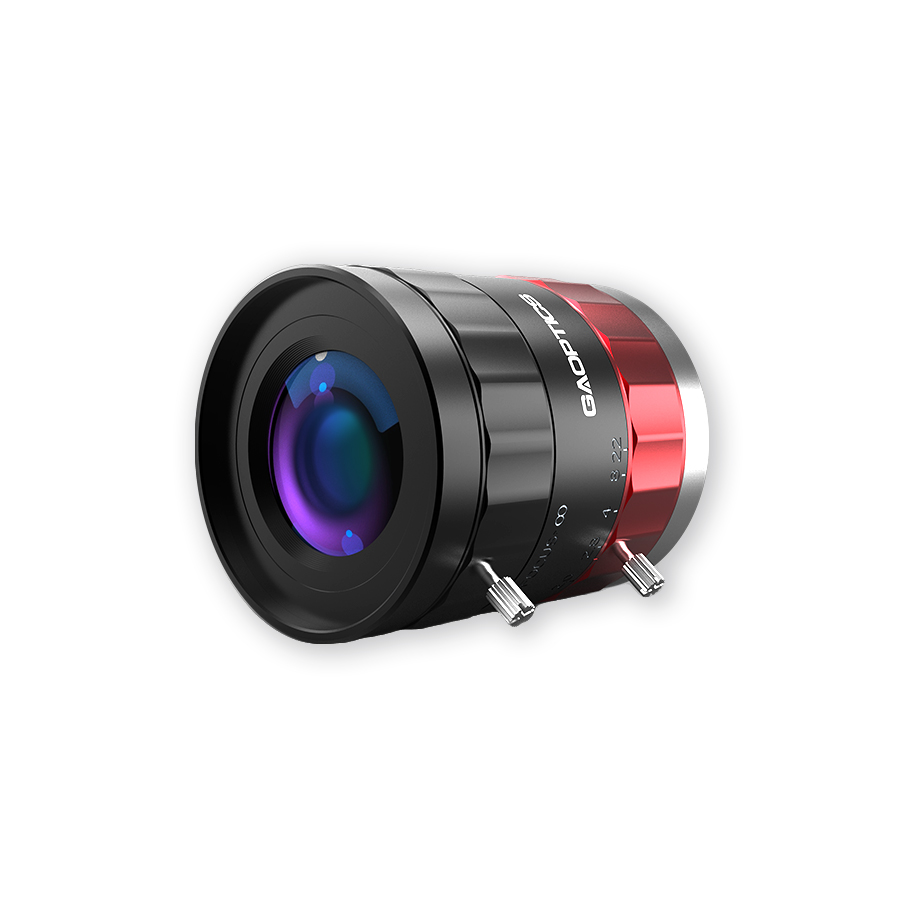

GA 1" SWIR lens is designed for 1" imaging sensor, imaging size diameter up to 16.4mm, F#1.4. Its working wavelength is from 700-1700nm, can match most of area scan SWIR cameras.
