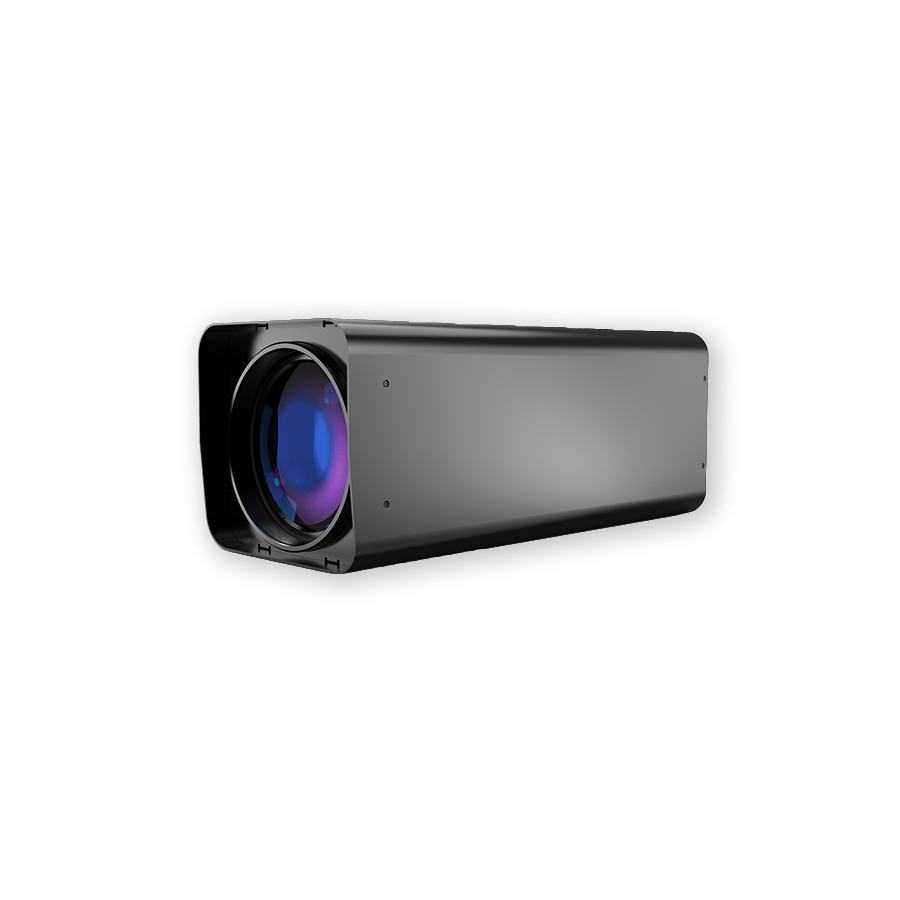

12.5-750.0mm 1/1.8" 60X Auto-Focus Zoom Lens
Price Option
Product No. 640006
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 12.5～750.0mm
- F/# 3.5～360C
- CCD 1/1.8
- Mount C
- Resolution 3MP
- Working Distance W：5m~∞T：5m~∞
- Filter Thread M114×0.75mm
- FOV W：38.80°×33.82°×19.02°T：0.71°×0.62°×0.35°
- Distrotion W：-1.64%@y=4.5mmT：1.36%@y=4.5mm
- Weight 5.79kg
| W | |||
| No. | 项目 | 规格 | |
| 1 | 最大传感器尺寸 | 1/1.8"(9mm) | |
| 2 | 焦距 | 12.5-750.0mm | |
| 3 | 接口 | C-Mount | |
| 4 | F/# | F3.5-F360C | |
| 5 | 工作距离 | 5m~∞ | |
| 6 | 视场角 (对角×水平×垂直) |
1/1.8" | 38.80°×33.82°×19.02° |
| 1/2" | 34.70°×30.24°×17.01° | ||
| 1/3" | 26.30°×22.92°×12.89° | ||
| 7 | 后焦距（in air） | 29.17㎜ | |
| 8 | 操作方式 | 聚焦 | 电动 |
| 对焦 | 电动 | ||
| 光圈 | DC自动 | ||
| 9 | 畸变率 |
1/1.8" | -1.64%@y=4.5㎜ |
| 1/2" | -1.50%@y=4.0㎜ | ||
| 1/3" | -1.01%@y=3.0mm | ||
| 10 | 滤镜尺寸 | M114×0.75 | |

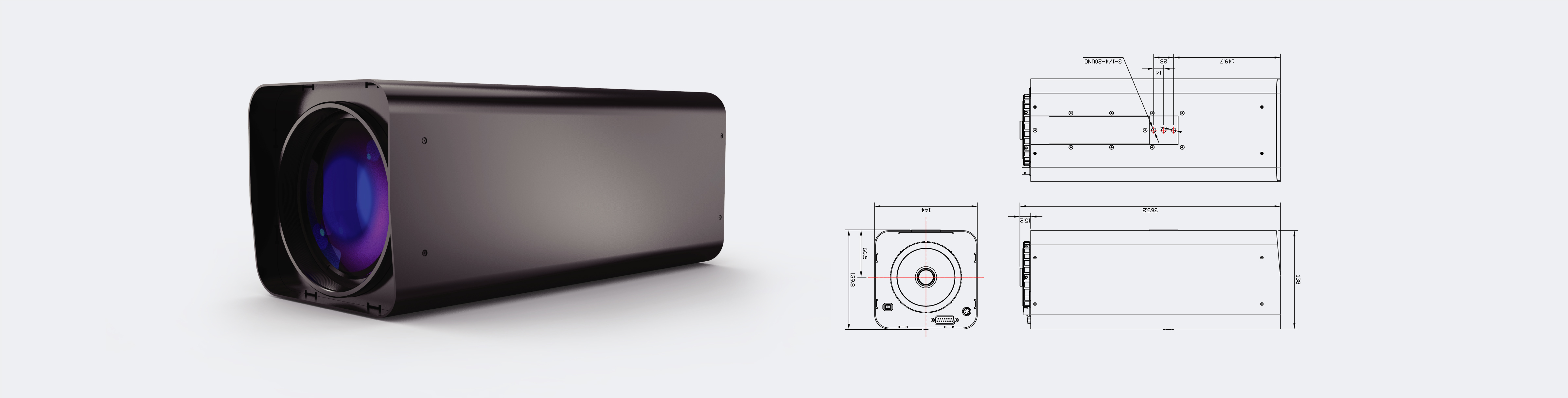

| 11 | 镜头尺寸（W×H×L） | 144.0×139.8×361.2mm | |
| 12 | ND滤光镜 | 1/8,1/64 | |
| 13 | 重量 | 5.79kg | |
| 14 | 工作温度 | -10℃～+50℃ | |
| T | |||
| No. | 项目 | 规格 | |
| 1 | 最大传感器尺寸 | 1/1.8"(9mm) | |
| 2 | 焦距 | 12.5-750.0mm | |
| 3 | 接口 | C-Mount | |
| 4 | F/# | F3.5-F360C | |
| 5 | 工作距离 | 5m~∞ | |
| 6 | 视场角 (对角×水平×垂直) |
1/1.8" | 0.71°×0.62°×0.35° |
| 1/2" | 0.63°×0.55°×0.31° | ||
| 1/3" | 0.47°×0.41°×0.23° | ||
| 7 | 后焦距（in air） | 29.17㎜ | |
| 8 | 操作方式 | 聚焦 | 电动 |
| 对焦 | 电动 | ||
| 光圈 | DC自动 | ||
| 9 | 畸变率 |
1/1.8" | 1.36%@y=4.5㎜ |
| 1/2" | 1.14%@y=4.0㎜ | ||
| 1/3" | 0.68%@y=3.0㎜ | ||
| 10 | 滤镜尺寸 | M114×0.75 | |
| 11 | 镜头尺寸（W×H×L） | 144.0×139.8×361.2mm | |
| 12 | ND滤光镜 | 1/8,1/64 | |
| 13 | 重量 | 5.79kg | |
| 14 | 工作温度 | -10℃～+50℃ | |
| 15 | 控制插座 |
|
15针插头 | |||||||
| 1 | 聚焦+ | |||||||||
| 2 | 聚焦- | |||||||||
| 3 | 变焦+ | |||||||||
| 4 | 变焦- | |||||||||
| 5 | 滤镜+ | |||||||||
| 6 | 滤镜- | |||||||||
| 7 | 光圈﹢ | |||||||||
| 8 | 光圈﹣ | |||||||||
| 9 | PRESET_ VCC | |||||||||
| 10 | PRESET_FOCUS | |||||||||
| 11 | PRESET_ZOOM | |||||||||
| 12 | PRESET_GND | |||||||||
| 13 | NC | |||||||||
| 14 | RS485+ | |||||||||
| 15 | RS485- | |||||||||
| 16 | 滤镜控制方式 | 5 | 滤镜﹣ | 无滤光镜(上电位置)→透雾滤光镜→ND滤光镜1/8→ND滤光镜1/64 | ||||||
| 6 | 滤镜﹢ | |||||||||
| 5 | 滤镜﹢ | 无滤光镜(上电位置)←透雾滤光镜←ND滤光镜1/8←ND滤光镜1/64 | ||||||||
| 6 | 滤镜﹣ | |||||||||
| 17 | 电源插座 |
|
4孔插头 | |||||||
| 1 | NC | |||||||||
| 2 | GND | |||||||||
| 3 | NC | |||||||||
| 4 | DC12V+ | |||||||||
This series of motorized zoom lens’s working wavelength is between 420nm-1100nm . Auto-Focus and Large aperture design, fog penetration and simple operation.
