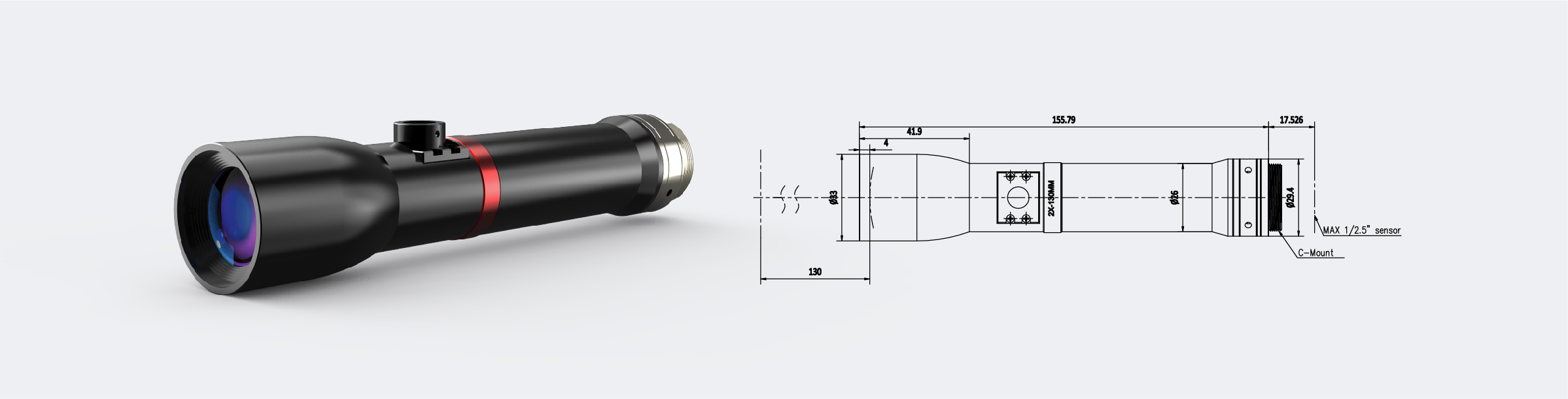

2X Working Distance 130mm 2/3

Price Option

Product No. 610034

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 11mm

FOV 5.5mm

Magnification 2X

Working Distance 130mm

Max. sensor size 2/3"

F/# 16

Distrotion ＜0.05%

Telecentricity ＜0.04°

DOV ±0.16mm

MTF ＞30%@55lp/mm

Illumination Port Φ8mm

Mount C-Mount coaxial

Length 155.79mm

Diameter 33mm

Weight 223g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		2.0X
3	Working Distance		130.00mm
4	Object Space DOV		±0.16mm
5	Telecentricity		＜0.04°
6	Distortion		＜0.05%
7	F/#		F16
8	Resolution/MTF @F16		＞30%@55lp/mm
9	Max Object Space FOV		Ф5.5mm
10	Max Sensor Size		Ф11mm
11	FOV （H×V）	2/3"	4.4×3.3mm
		1/2"	3.2×2.4mm
12	Filter Thread		M30.5×0.5mm
13	Lens Mount		C-Mount
14	Illumination Port		Ф8mm
15	Lens Size（Dia.×Length）		Ф33.0×155.79mm
16	The distance from the front end of imaging lens to the first surface of the first glass lens		4.0mm
