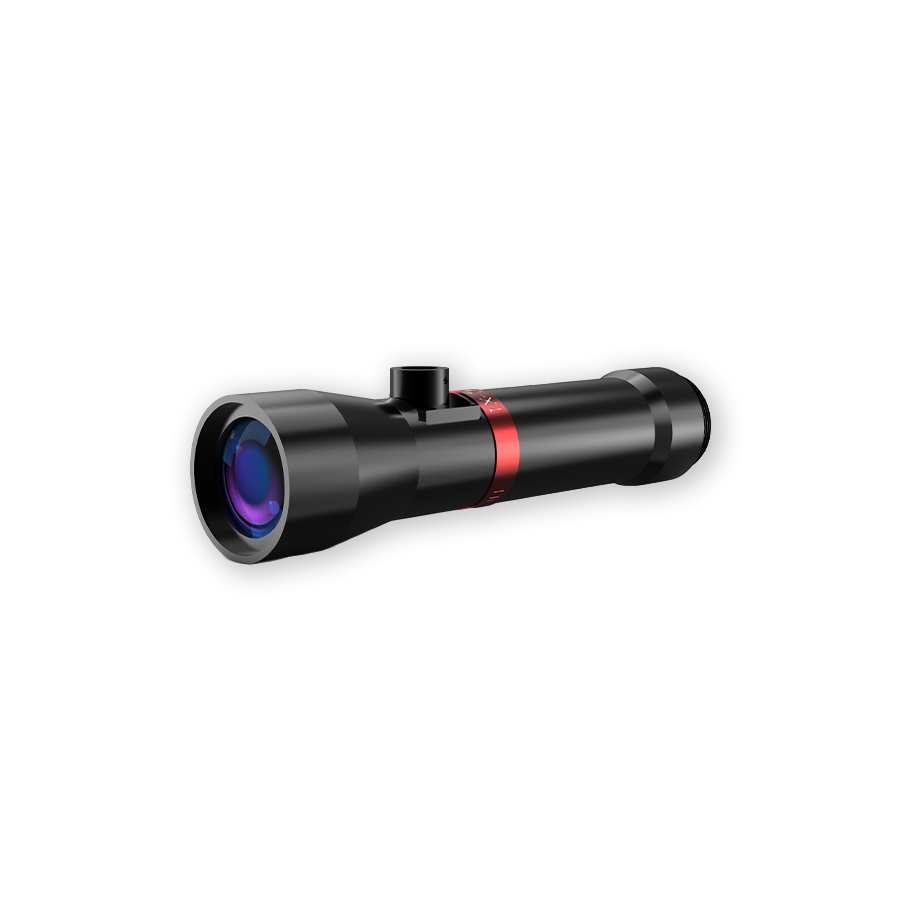

1X Working Distance 130mm 2/3

Price Option

Product No. 610032

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 11mm

FOV 11mm

Magnification 1X

Working Distance 130mm

Max. sensor size 2/3"

F/# 12

Distrotion ＜0.03%

Telecentricity ＜0.03°

DOV ±0.48mm

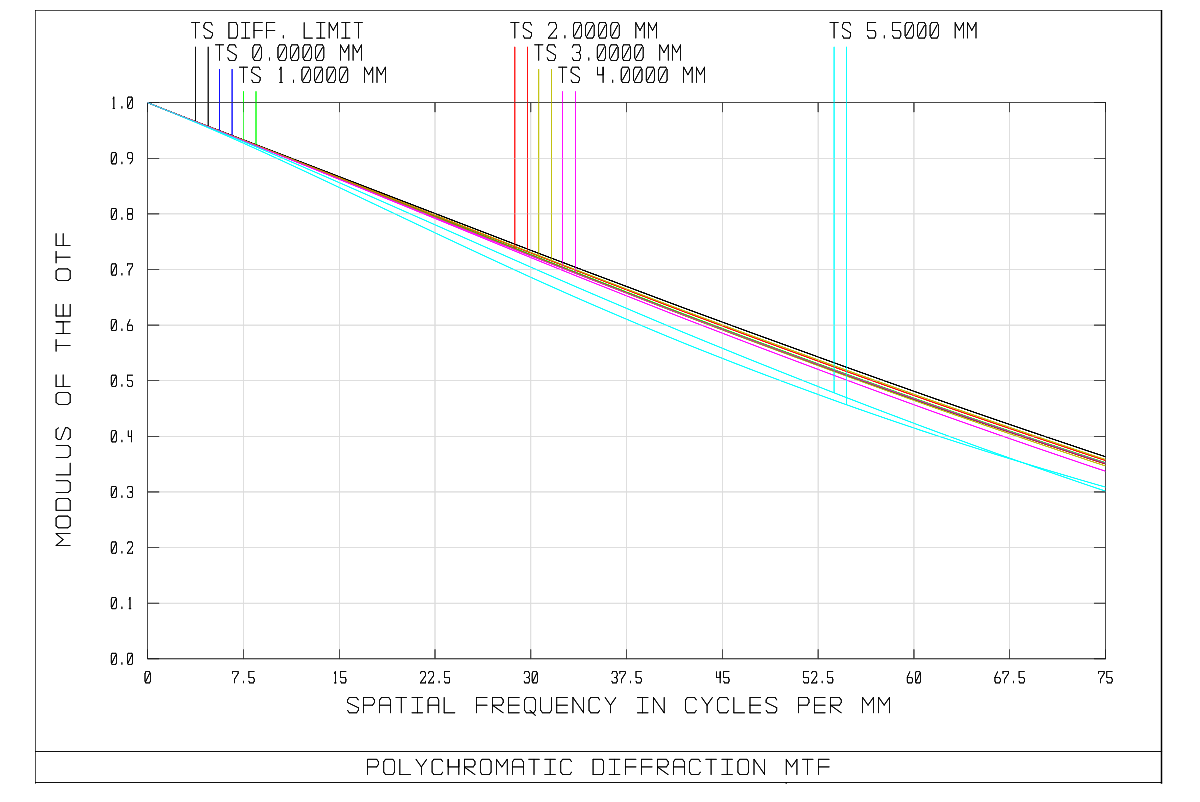

MTF ＞30%@75lp/mm

Illumination Port Φ8mm

Mount C-Mount coaxial

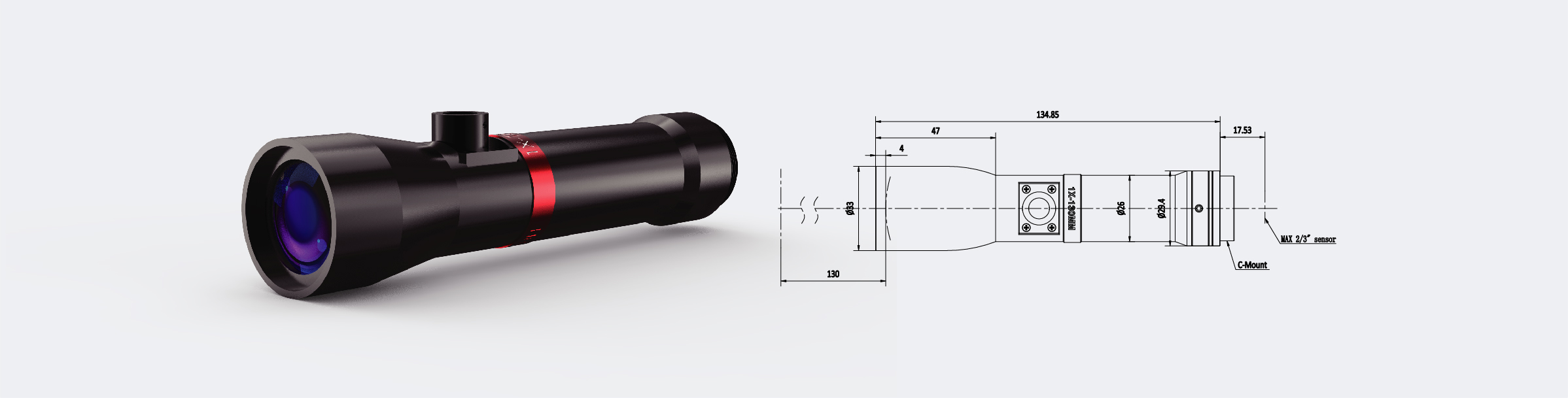

Length 134.85mm

Diameter 33mm

Weight 202g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		1.0X
3	Working Distance		130.00mm
4	Object Space DOV		±0.48mm
5	Telecentricity		＜0.03°
6	Distortion		＜0.03%
7	F/#		F12
8	Resolution/MTF @F12		>30%@75lp/mm
9	Max Object Space FOV		Φ11mm
10	Max Sensor Size		Ф11mm
11	FOV （H×V）	2/3"	8.8 × 6.6mm
		1/2"	6.4 × 4.8mm
12	Filter Thread		M30.5 × 0.5mm
13	Lens Mount		C-Mount
14	Illumination Port		Ф8mm
15	Lens Size（Dia.×Length）		Φ33.0 × 134.85mm
16	The distance from the front end of imaging lens to the first surface of the first glass lens		4.0mm
