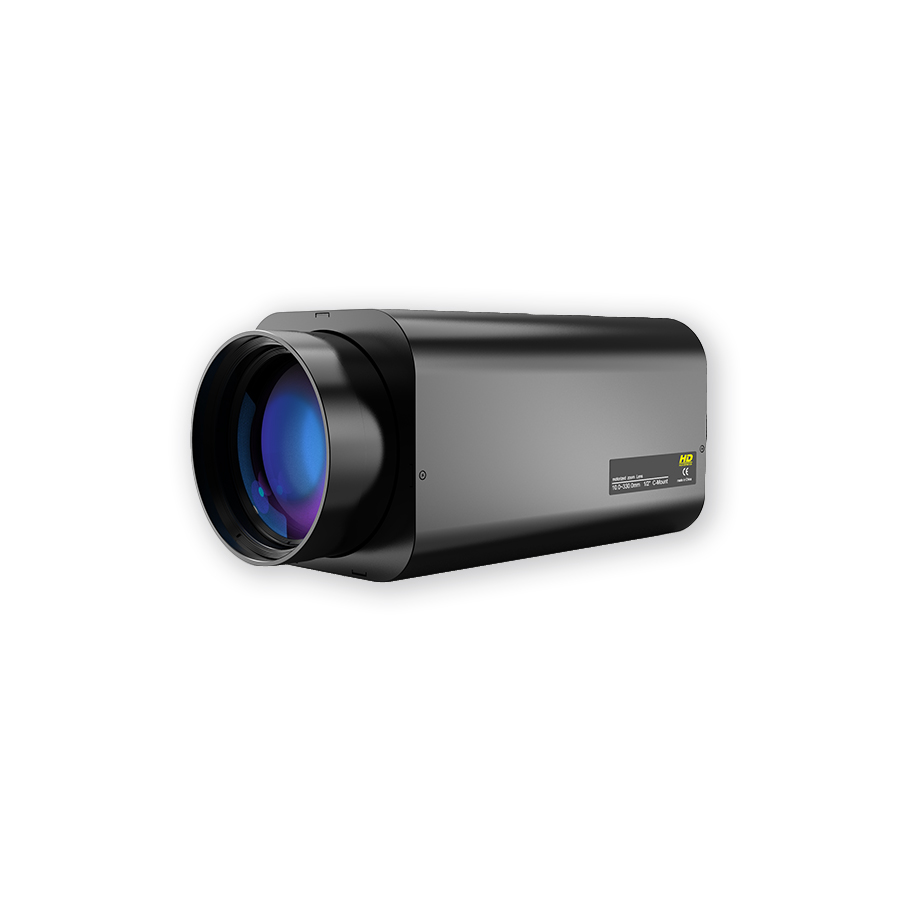

10-330mm 1/2" 33X Auto-Focus Zoom Lens

Price Option

Product No. 640004

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 10～330mm

F/# 1.5～360C

CCD 1/2

Mount C

Resolution 2MP

Working Distance W：2.8m~∞T：2.8m~∞

Filter Thread M100x1mm

FOV W:43.2°× 34.8°× 26.2 T:1.36°×1.10°×0.82°

Distrotion W:-3.33%@y=4.0mmT:2.2%@y=4.0mm

Weight 3.15kg

W
No.	item		Specification
1	Max. sensor size		1/2"(8mm)
2	Focal Length		10-330
3	Mount		C-Mount
4	F/#		F1.5-F360C
5	Working Distance		2.8m~∞
6	FOV (Diagonal x H xV)	1/2"	43.2°×34.8°×26.2°
		1/3"	32.6°×26.2°×19.7°
		1/4"	24.6°×19.7°×14.8°
7	BFL(in air）		14.67mm
8	Operation	Focus	Motorized
		Zoom	Motorized
		Iris	DC Auto
9	Distortion	1/2"	-3.33%@y=4.0mm
		1/3"	-2.0%@y=3.0mm
		1/4"	-1.16%@y=2.25mm
10	Filter thread		M100×1
11	Lens Size(W x H x L)		124×122.5×275.7mm
12	Weight		3.15kg
13	Ambient Temperature		-10℃～+50℃

T
No.	item		Specification
1	Max. sensor size		1/2"(8mm)
2	Focal Length		10-330
3	Mount		C-Mount
4	F/#		F1.5-F360C
5	Working Distance		2.8m~∞
6	FOV (Diagonal x H xV)	1/2"	1.36°×1.10°×0.82°
		1/3"	1.04°×0.82°×0.62°
		1/4"	0.78°×0.62°×0.46°
7	BFL(in air）		14.67㎜
8	Operation	Focus	Motorized
		Zoom	Motorized
		Iris	DC自动
9	Distortion	1/2"	2.20%@y=4.0㎜
		1/3"	1.22%@y=3.0㎜
		1/4"	0.68%@y=2.25㎜
10	Filter thread		M100×1
11	Lens Size(W x H x L)		124×122.5×275.7mm
12	Weight		3.15kg
13	Ambient Temperature		-10℃～+50℃

14	Control Connector	16 Pin Connector
		1	DC12V+
		2	GND
		3	Zoom	Wild+
				Tele-
		4		Voltage
		5	Focus	Far+
				Near-
		6		Voltage
		7	Potentiometer Power(input)
		8	Poteniometer GND
		9	Focus Potentiomete(output)
		10	Zoom Potentiomete(output)
		11	GND
		12	NC
		13	Manual B
		14	Manual A
		15	RS485B
		16	RS485A

Curve Download

0.5X Working Distance 130mm 2/3

1X Working Distance 130mm 2/3

2X Working Distance 130mm 2/3

This series of motorized zoom lens’s working wavelength is between 420nm-1100nm . Auto-Focus and Large aperture design, fog penetration and simple operation.
