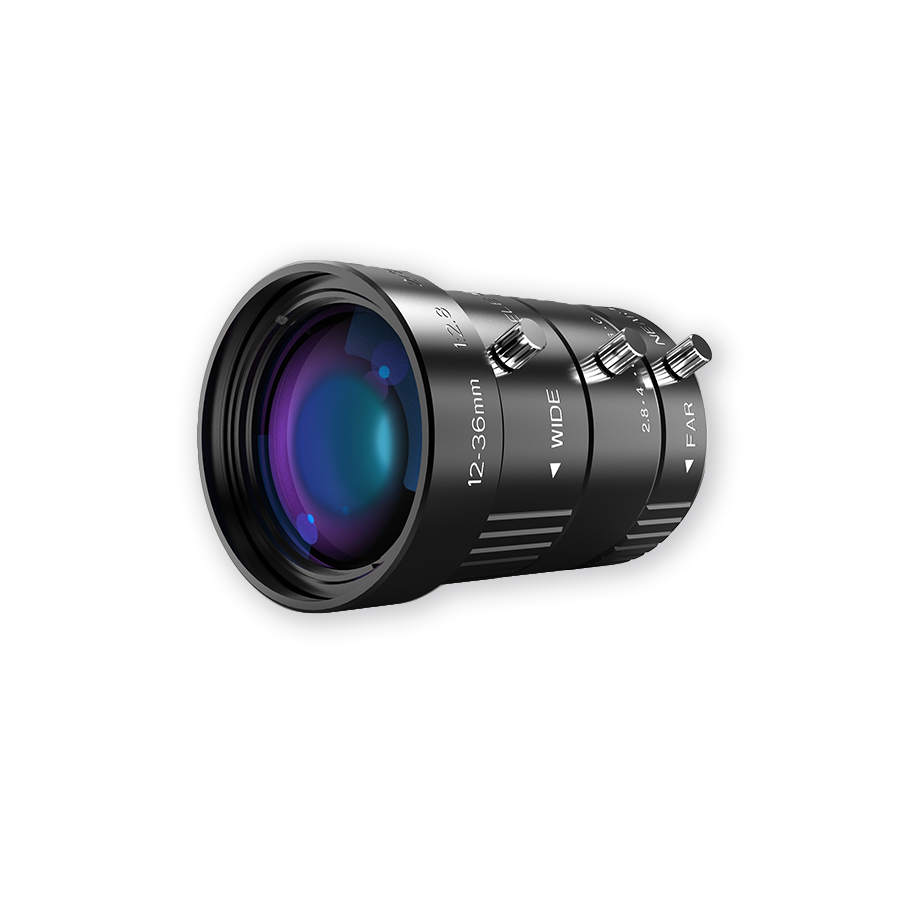

12-36mm 2/3" 2M Zoom Lens
Share
WeChat
Scan and add Wechat

12-36mm 2/3" 2M Zoom Lens

Price Option
 € 136.40 (EUR) ￡116.19 (GBP) ￥800.00 (RMB)

Product No. 640000

Stock In Stock

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 12～36mm
F/# 2.8～C
CCD 2/3
Mount C
Resolution 2MP
Working Distance W：0.15m～∞&T：0.45m～∞
Filter Thread M35.5×0.5
FOV W：50.8°×41.3°×31.2° T：17.0°×13.8°×10.4°
Distrotion W：-3.43%@y=5.5mm T：2.3%@y=5.5mm
Weight 105g
W（Wide）
No Item Specifications
1 Max. sensor size 2/3"(11mm）
2 Focal Length 12mm
3 Mount C-Mount
4 F/# F2.8-C
5 Working Distance 0.15m-∞
6 FOV(Diagonal x H xV) 2/3" 50.8°×41.3°×31.2°
1/2" 37.6°×30.3°×22.8°
1/3" 28.5°×22.8°×17.2°
7 Object Size (at the minimum focus distance) 2/3" 167.8×132.0×97.5mm
1/2" 119.3×94.4×70.1mm
1/3" 88.3×70.1×52.3mm
8 BFL(in air) 14.36mm
9 Operation Focus Manual
10 Operation Focus Manual
Aperture M-Iris
11 Distortion 2/3" -3.43%@y=5.5mm
1/2" -2.33%@y=4.0mm
1/3" -1.42%@y=3.0mm
12 Filter thread M35.5×0.5mm

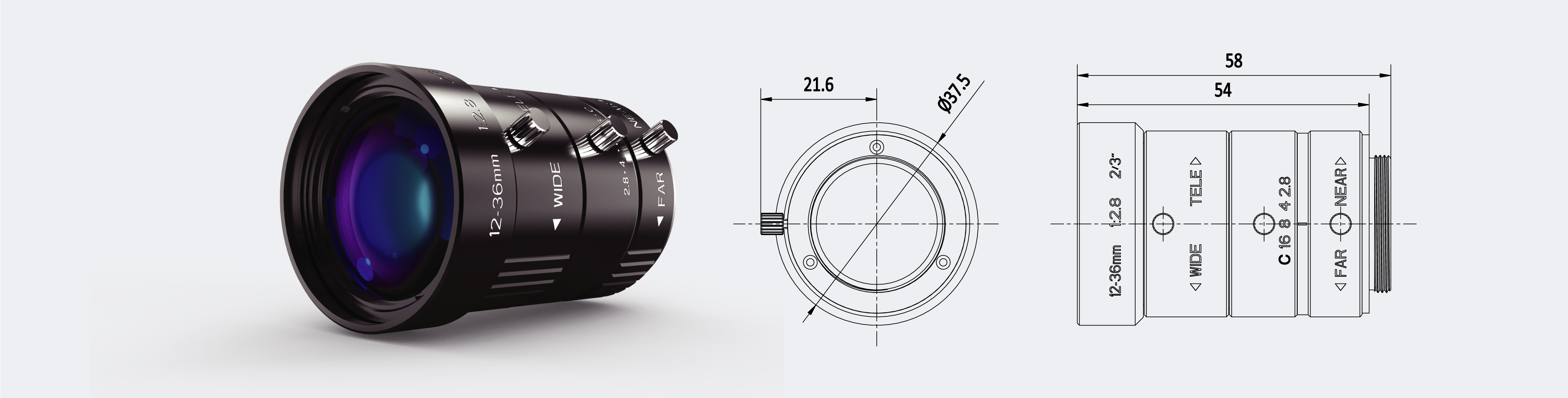

13 Lens Size(W x L) 40.35×58mm
14 Weight 105g
15 Work Temperature -10℃～+50℃
16 Distance of entrance pupil 25.35mm
17 Diameter of entrance pupil 4.30mm
18 Distance of exit pupil -84.90mm
19 Diameter of exit pupil 30.38mm
20 Total optical length 65.92mm
21 Magnification -0.0684

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
150mm -0.06840 4.8000 5.1282
200mm -0.05324 8.4433 9.2220
250mm -0.04359 13.0550 14.5770
300mm -0.03690 18.6050 21.2390
350mm -0.03199 25.0640 29.2540

T（Tele）
No Item Specifications
1 Max. sensor size 2/3"(11mm）
2 Focal Length 36mm
3 Mount C-Mount
4 F/# F2.8-C
5 Working Distance 0.45m～∞
6 FOV(Diagonal x H xV) 2/3" 17.0°×13.8°×10.4°
1/2" 12.6°×10.1°×7.6°
1/3" 9.5°×7.6°×5.7°
7 Object Size (at the minimum focus distance) 2/3" 168.3×135.3×101.8mm
1/2" 123.2×98.7×74.2mm
1/3" 92.6×74.2×55.7mm
8 BFL(in air) 12.62mm
9 Operation Focus Manual
10 Operation Focus Manual
Aperture M-Iris
11 Distortion 2/3" 2.30%@y=5.5mm
1/2" 1.14%@y=4.0mm
1/3" 0.62%@y=3.0mm
12 Filter thread M35.5×0.5mm
13 Lens Size(W x L) 40.35×58mm
14 Weight 105g
15 Work Temperature -10℃～+50℃
16 Distance of entrance pupil 67.7mm
17 Diameter of entrance pupil 12.67mm
18 Distance of exit pupil -121.24mm
19 Diameter of exit pupil 42.72mm
20 Total optical length 70.28mm
21 Magnification -0.0682

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
450mm -0.06820 5.0087 5.1227
500mm -0.06221 6.1760 6.3324
550mm -0.05720 7.4637 7.6719
600mm -0.05294 8.8715 9.1418
650mm -0.04917 10.3990 10.7430
Curve Download

0.5X Working Distance 130mm 2/3

1X Working Distance 130mm 2/3

1X Working Distance 130mm 2/3

2X Working Distance 130mm 2/3
The maximum imaging sensor of Manual Zoom lens is 11mm, focal lengths range from 12mm-36mm
