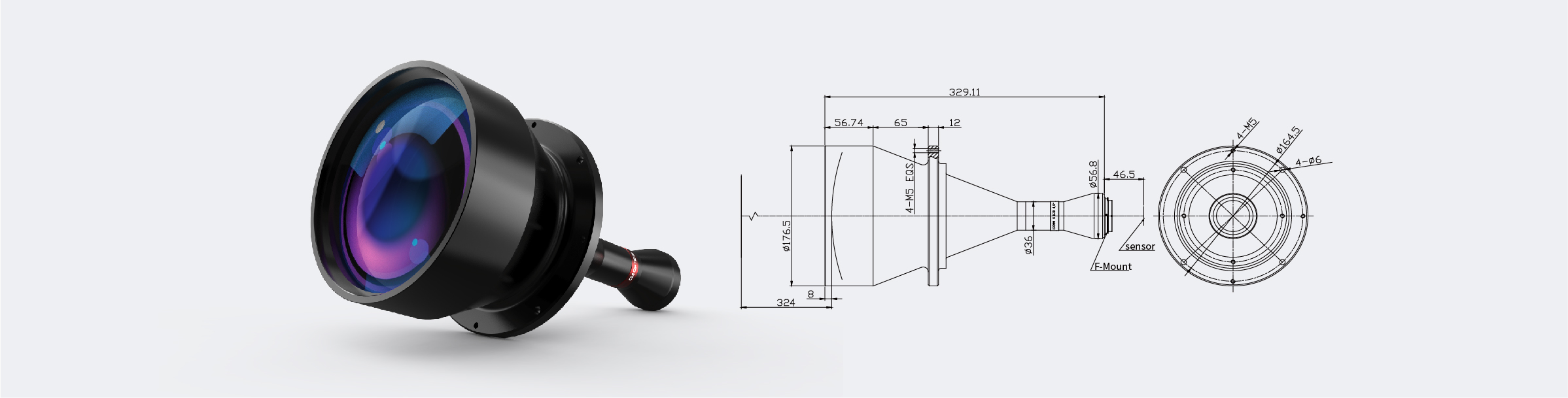

0.16X Working Distance 324mm 4/3

Price Option

Product No. 610042

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 24mm

FOV 150mm

Magnification 0.16X

Working Distance 324mm

Max. sensor size 4/3"

F/# 8

Distrotion ＜0.04%

Telecentricity ＜0.03°

DOV ±12.5mm

MTF ＞30%@110lp/mm

Illumination Port -

Mount F-Mount

Length 329.11mm

Diameter 176.5mm

Weight 5691g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.160X
3	Working Distance		324mm
4	DOV		±12.5mm
5	Telecentricity		＜0.03°
6	Distortion		＜0.04%
7	F/#		F8
8	Resolution/MTF @F8		>30%@110lp/mm
9	Max Object Space FOV		Φ24mm
10	Max Image Space FOV		Φ150mm
11	FOV （H×V）	4/3"	118×84mm
		1"	80×60mm
		2/3"	55×41mm
		1/1.8"	45×34mm
		1/2.5"	36.3×26.9mm
12	Lens Mount		F-Mount
13	Lens Size（Dia.×Length）		Φ176.5×329.1mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		8mm

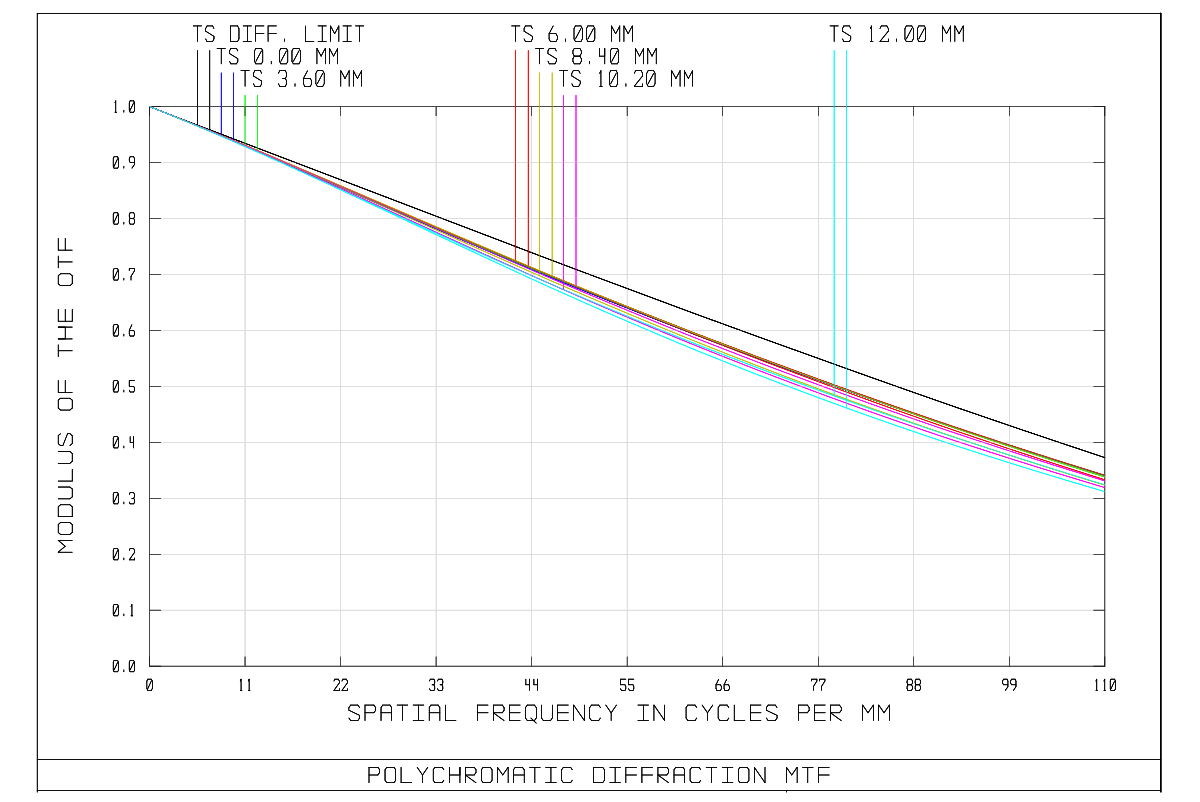

Curve Download

0.24X Working Distance 282mm 4/3

0.16X Working Distance 324mm 4/3

GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
