0.24X Working Distance 282mm 4/3

Price Option

Product No. 610026

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

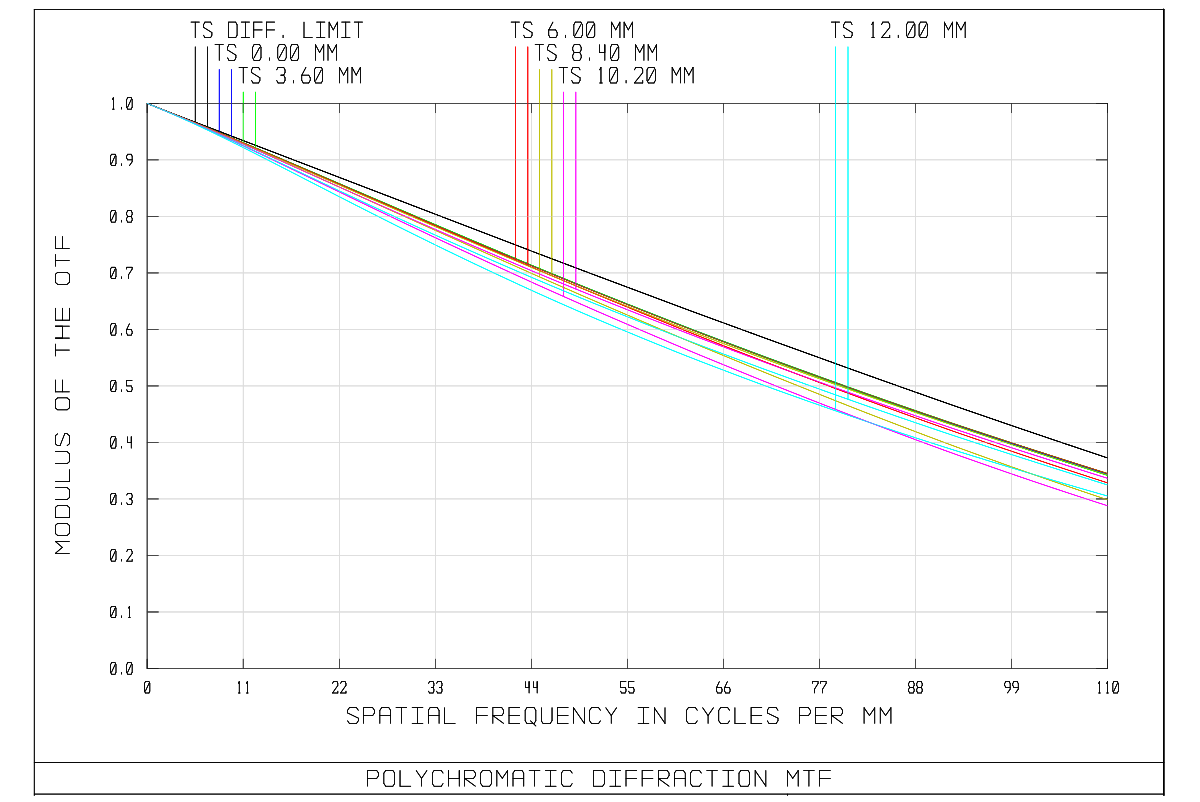

Parameters Specification Data curve Related Products Description

Image Plane(Max) 24mm

FOV 100mm

Magnification 0.24X

Working Distance 282mm

Max. sensor size 4/3"

F/# 8

Distrotion ＜0.05%

Telecentricity ＜0.05°

DOV ±5.56mm

MTF ＞30%@100lp/mm

Illumination Port -

Mount F-Mount

Length 259.55mm

Diameter 125mm

Weight 2471g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.240X
3	Working Distance		282.00mm
4	DOV		±5.56mm
5	Telecentricity		＜0.05°
6	Distortion		＜0.05%
7	F/#		F8
8	Resolution/MTF @F8		＞30%@100lp/mm
9	Max Object Space FOV		Ф100mm
10	Max Image Space FOV		Ф24mm
11	FOV （H×V）	4/3"	78×56mm
		1"	53×40.0mm
		2/3"	37×28mm
		1/1.8"	30×23mm
		1/2.5"	24.2×17.9mm
12	Lens Mount		F-Mount
13	Lens Size（Dia.×Length）		Ф125.0×259.55mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		8.0mm
