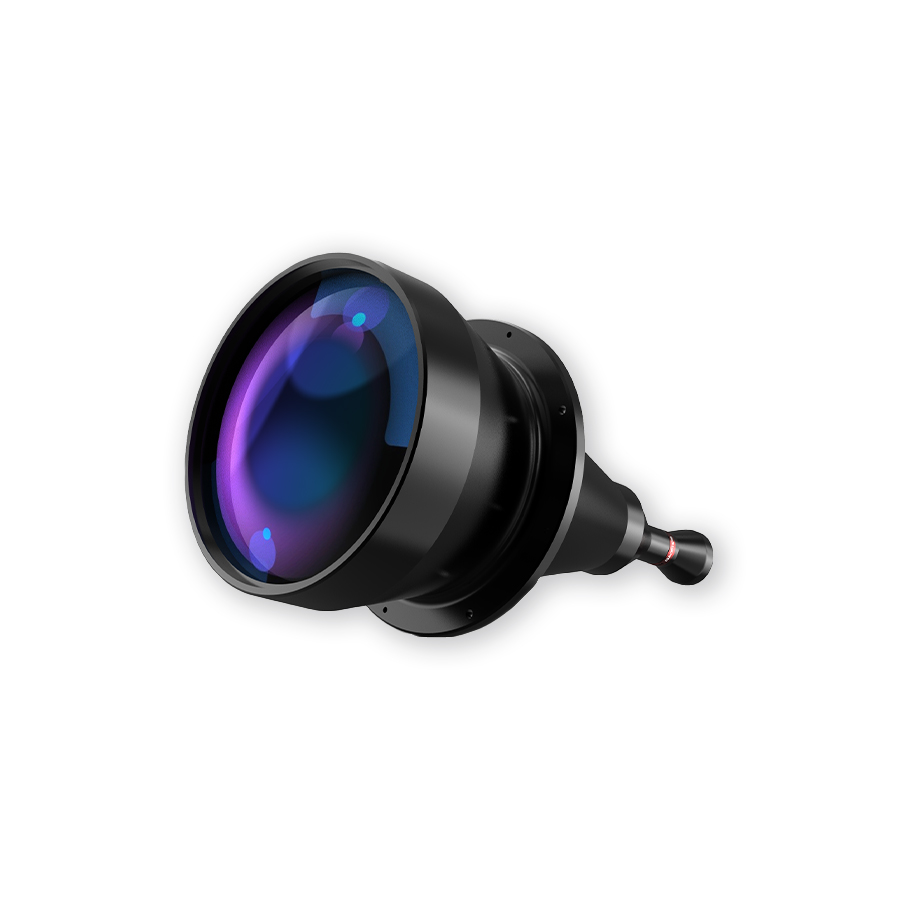

0.096X Working Distance 430mm 4/3

Price Option

Product No. 610028

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

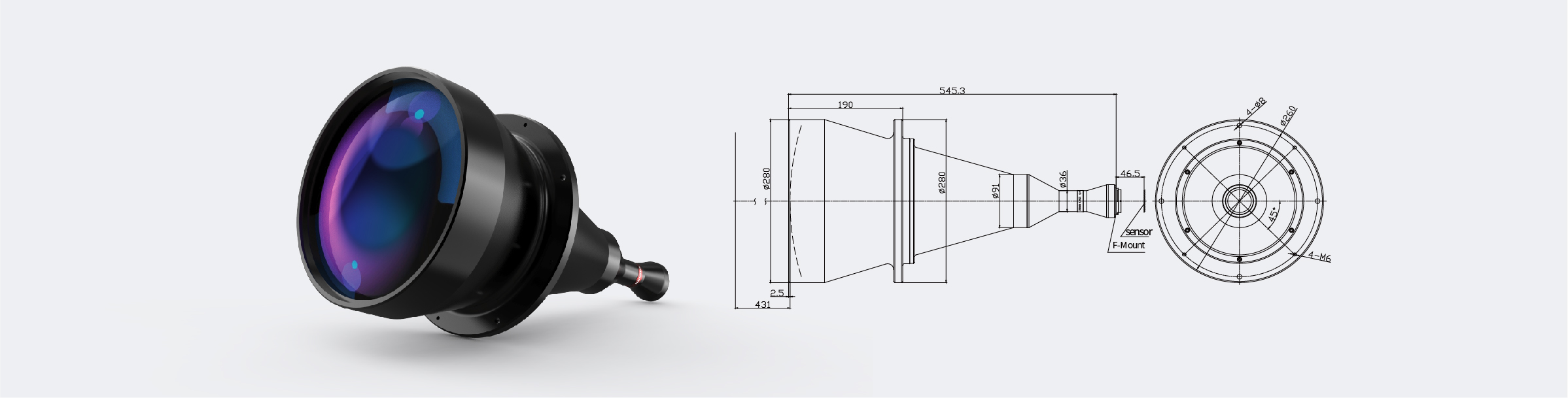

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 24mm

FOV 250mm

Magnification 0.096X

Working Distance 431mm

Max. sensor size 4/3"

F/# 8

Distrotion ＜0.02%

Telecentricity ＜0.02°

DOV ±34.72mm

MTF ＞30%@110lp/mm

Illumination Port -

Mount F-Mount

Length 545.3mm

Diameter 280mm

Weight /

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.096X
3	Working Distance		431mm
4	DOV		±34.72mm
5	Telecentricity		＜0.02°
6	Distortion		＜0.02%
7	F/#		F8
8	Resolution/MTF @F8		>30%@110lp/mm
9	Max Object Space FOV		Φ24mm
10	Max Image Space FOV		Φ250mm
11	FOV （H×V）	4/3"	196×141mm
		1"	133×100.0mm
		2/3"	92×69mm
		1/1.8"	75×56mm
		1/2.5"	60.4×44.8mm
12	Lens Mount		F-Mount
13	Lens Size（Dia.×Length）		Φ280×545.3mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		2.5mm

Curve Download

0.096X Working Distance 430mm 4/3

0.16X Working Distance 324mm 4/3

GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
