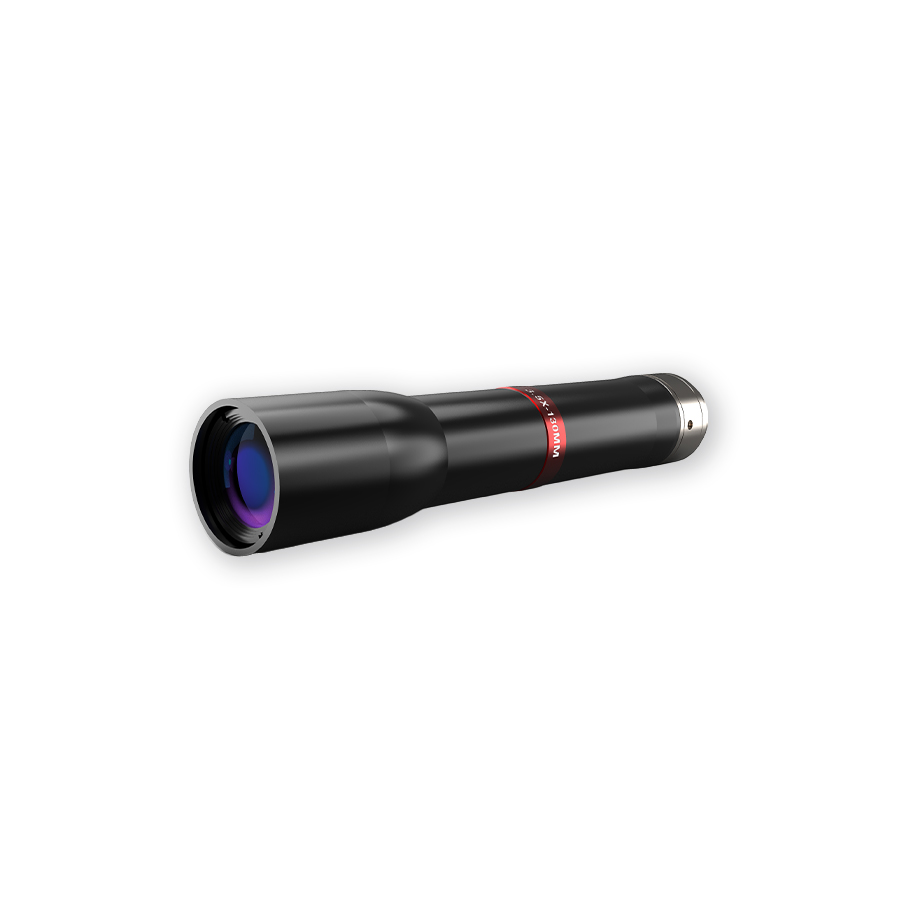

3.5X Working Distance 130mm 2/3

Price Option

Product No. 610037

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

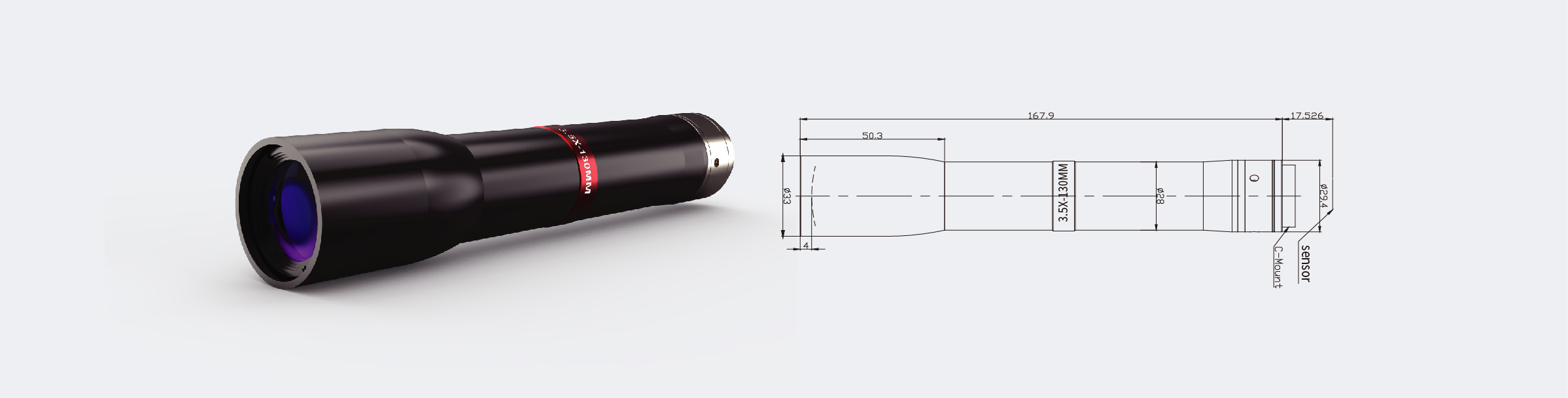

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 11mm

FOV 3.14mm

Magnification 3.5X

Working Distance 130mm

Max. sensor size 2/3"

F/# 24

Distrotion ＜0.05%

Telecentricity ＜0.06°

DOV ±0.08mm

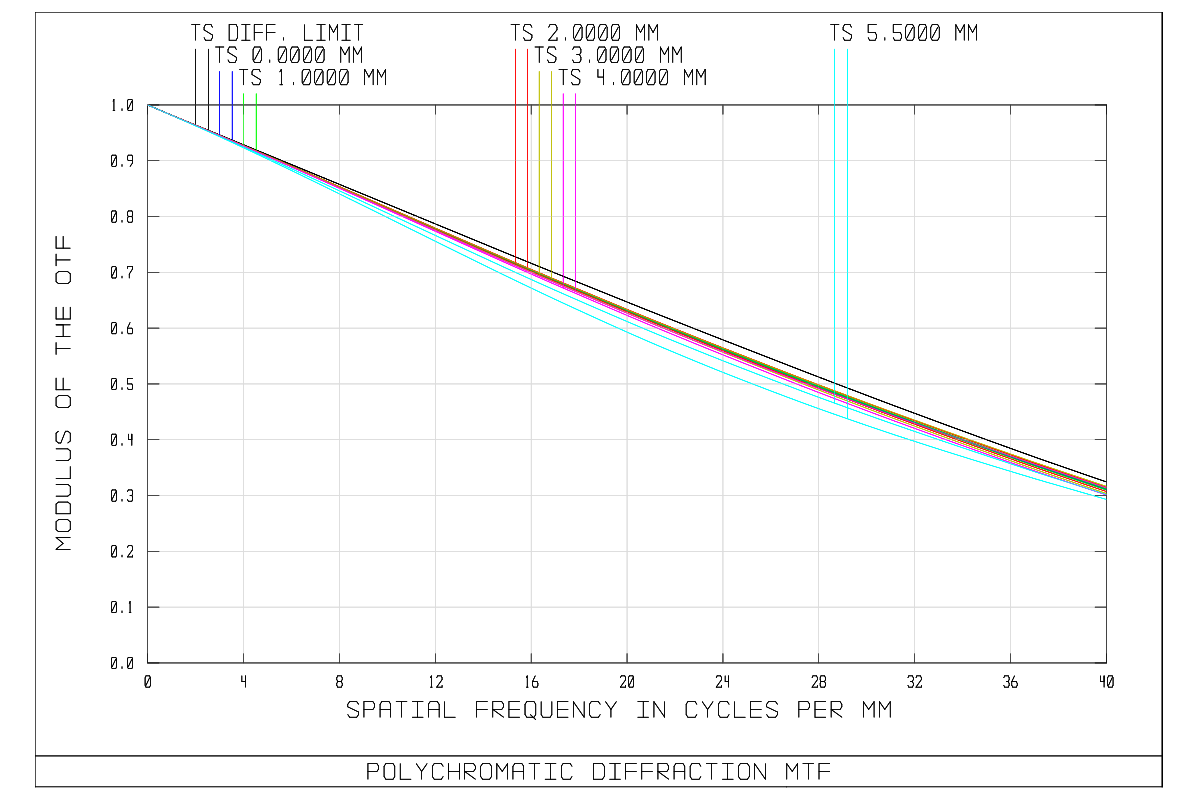

MTF ＞30%@40lp/mm

Illumination Port -

Mount C-Mount

Length 167.9mm

Diameter 33mm

Weight 268g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		3.5X
3	Working Distance		130.00mm
4	Object Space DOV		±0.08mm
5	Telecentricity		＜0.06°
6	Distortion		＜0.05%
7	F/#		F24
8	Resolution/MTF @F24		＞30%@40lp/mm
9	Max Object Space FOV		Ф3.1mm
10	Max Sensor Size		Ф11mm
11	FOV （H×V）	2/3"	2.5×1.8mm
		1/2"	1.8×1.3mm
12	Filter Thread		M30.5×0.5mm
13	Lens Mount		C-Mount
14	Illumination Port		/
15	Lens Size（Dia.×Length）		Ф33.0×167.9mm
