Home  Products  GA Large FOV Double Telecentric Lenses  610016





  Likes

Share

WeChat

Scan and add Wechat

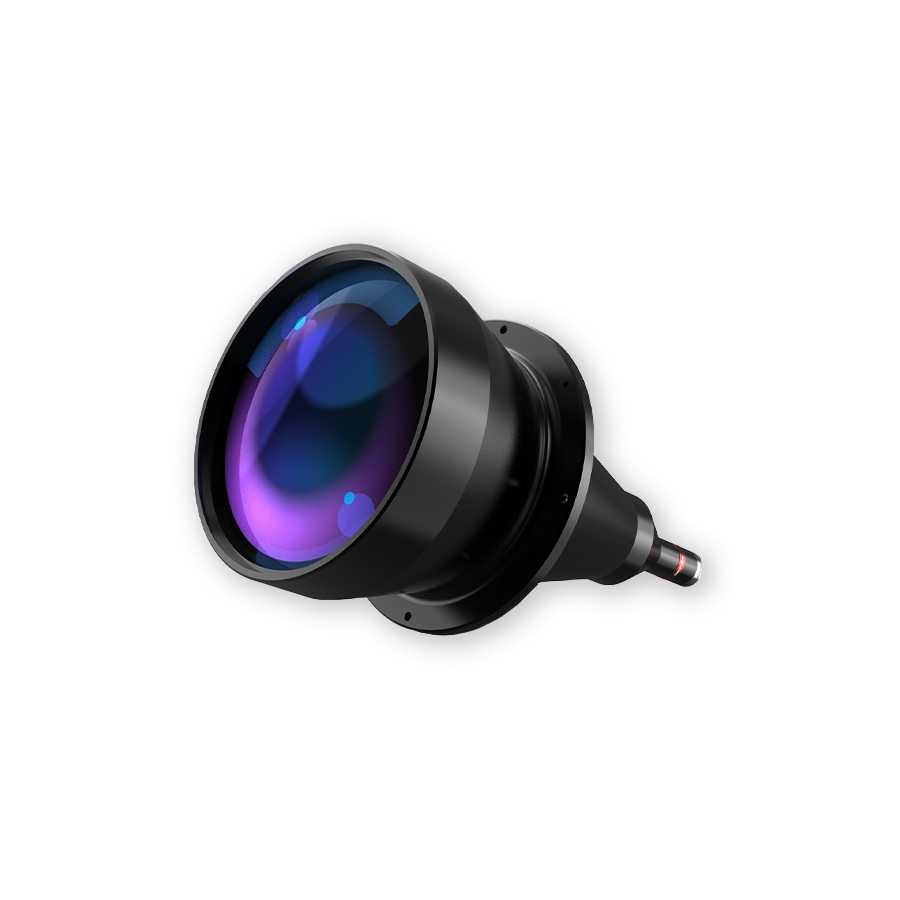

0.0456X Working Distance 430mm 2/3

Price Option

Product No. 610016

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

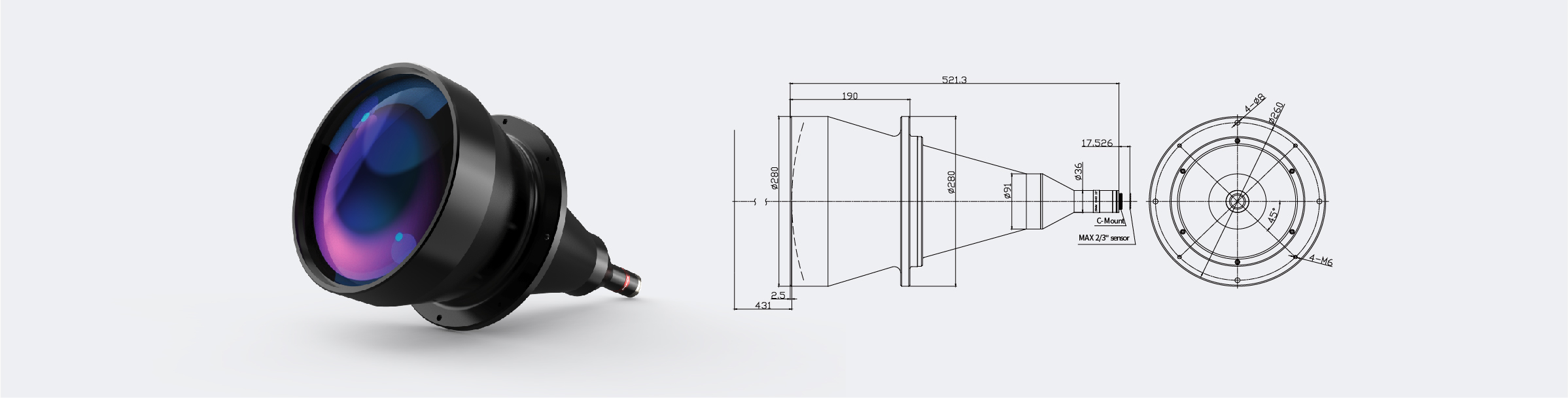

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 11mm

FOV 241.2mm

Magnification 0.0456X

Working Distance 431mm

Max. sensor size 2/3

F/# 5.3

Distrotion ＜0.02%

Telecentricity ＜0.02°

DOV ±101.96mm

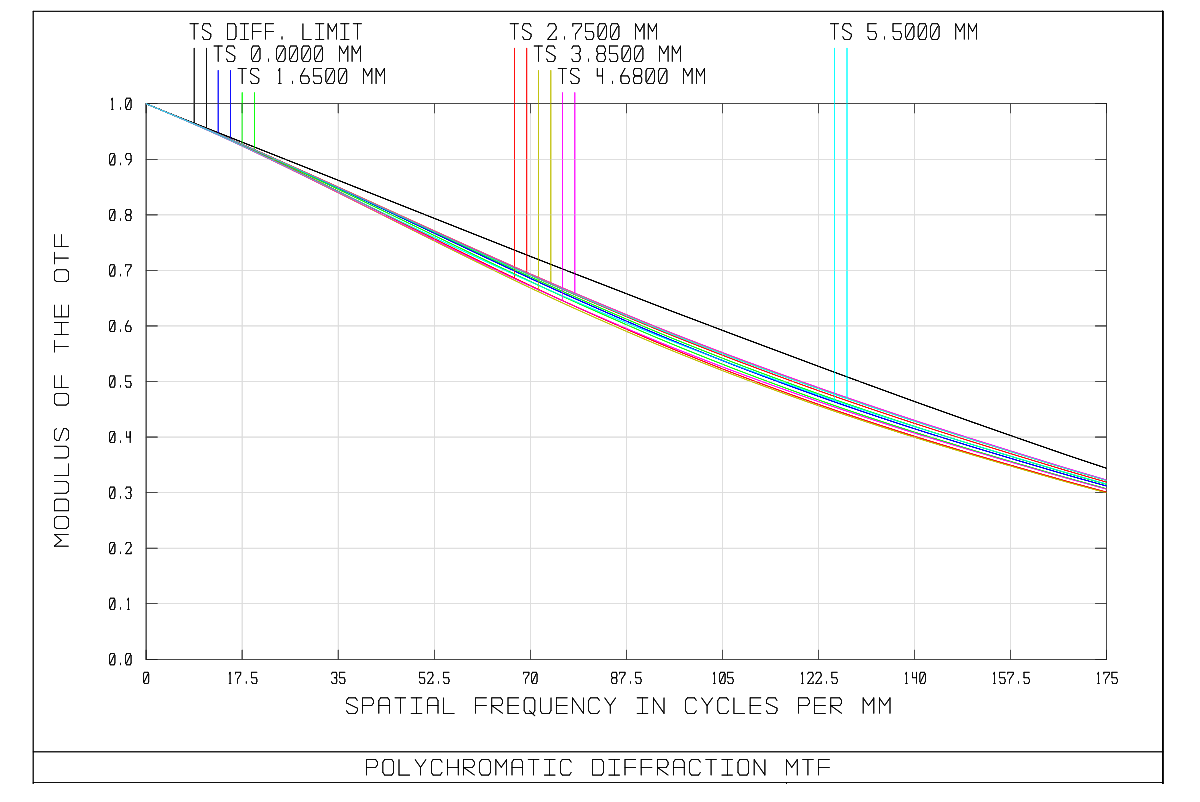

MTF ＞30%@170lp/mm

Illumination Port -

Mount C-Mount

Length 521.3mm

Diameter 280mm

Weight /

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.0456X
3	Working Distance		431mm
4	DOV		±101.96mm
5	Telecentricity		＜0.02°
6	Distortion		＜0.02%
7	F/#		F5.3
8	Resolution/MTF @F5.3		>30%@170lp/mm
9	Max Object Space FOV		Φ11mm
10	Max Image Space FOV		Φ241.2mm
11	FOV （H×V）	2/3"	193×145mm
		1/1.8"	158×118mm
		1/2.5"	127.2×94.3mm
12	Lens Mount		C-Mount
13	Lens Size（Dia.×Length）		Φ280×521.3mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		2.5mm
