0.166X Working Distance 282mm 1

Price Option

Product No. 610020

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 16mm

FOV 96.38mm

Magnification 0.166X

Working Distance 282mm

Max. sensor size 1

F/# 6.4

Distrotion ＜0.05%

Telecentricity ＜0.05°

DOV ±9.29mm

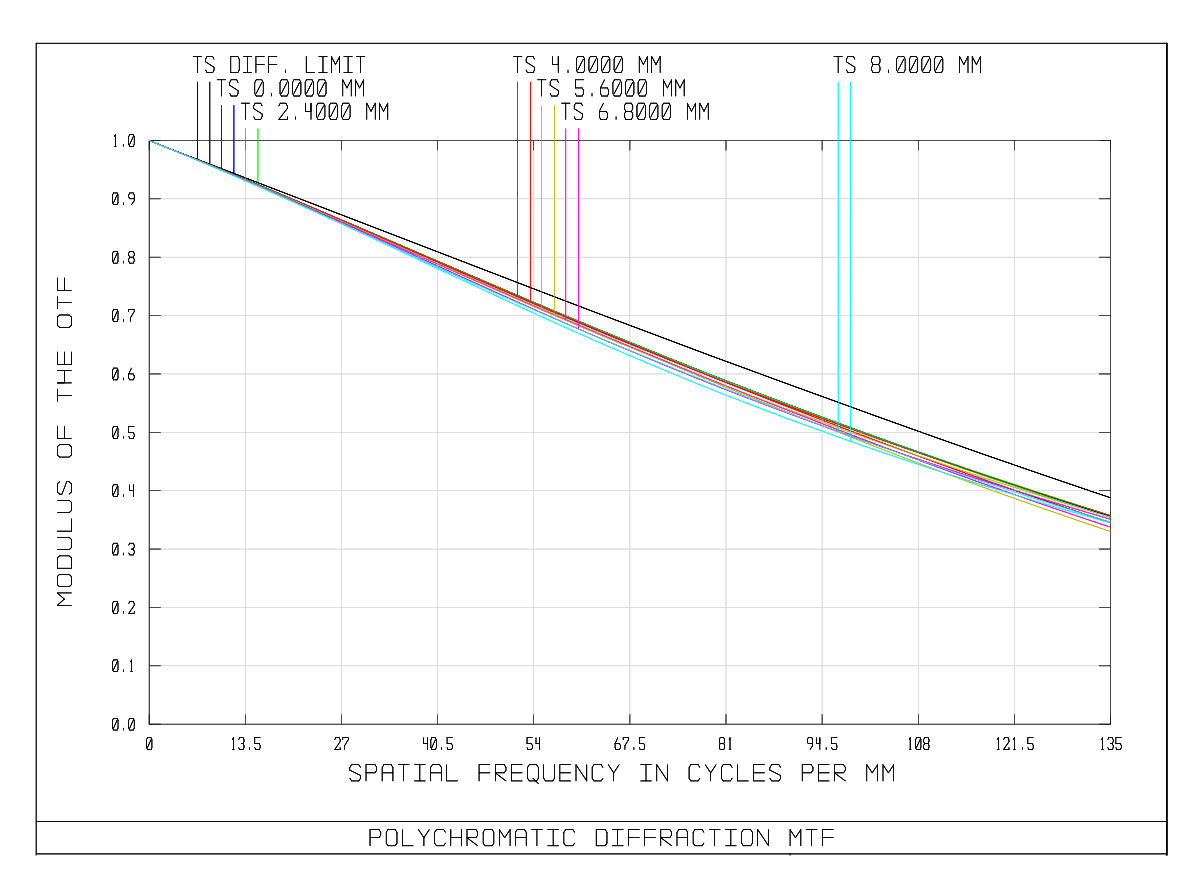

MTF ＞30%@135lp/mm

Illumination Port -

Mount C-Mount

Length 257.5mm

Diameter 125mm

Weight 2314

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.166X
3	Working Distance		282.00mm
4	DOV		±9.29mm
5	Telecentricity		＜0.05°
6	Distortion		＜0.05%
7	F/#		F6.4
8	Resolution/MTF @F6.4		＞30%@135lp/mm
9	Max Object Space FOV		Ф96.38mm
10	Max Image Space FOV		Ф16mm
11	FOV （H×V）	1"	77×58mm
		2/3"	53×40mm
		1/1.8"	43×33mm
		1/2.5"	34.9×25.9mm
12	Lens Mount		C-Mount
13	Lens Size（Dia.×Length）		Ф125.0×257.5mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		8.0mm
