Home  Products  GA Large FOV Double Telecentric Lenses  610018





  Likes

Share

WeChat

Scan and add Wechat

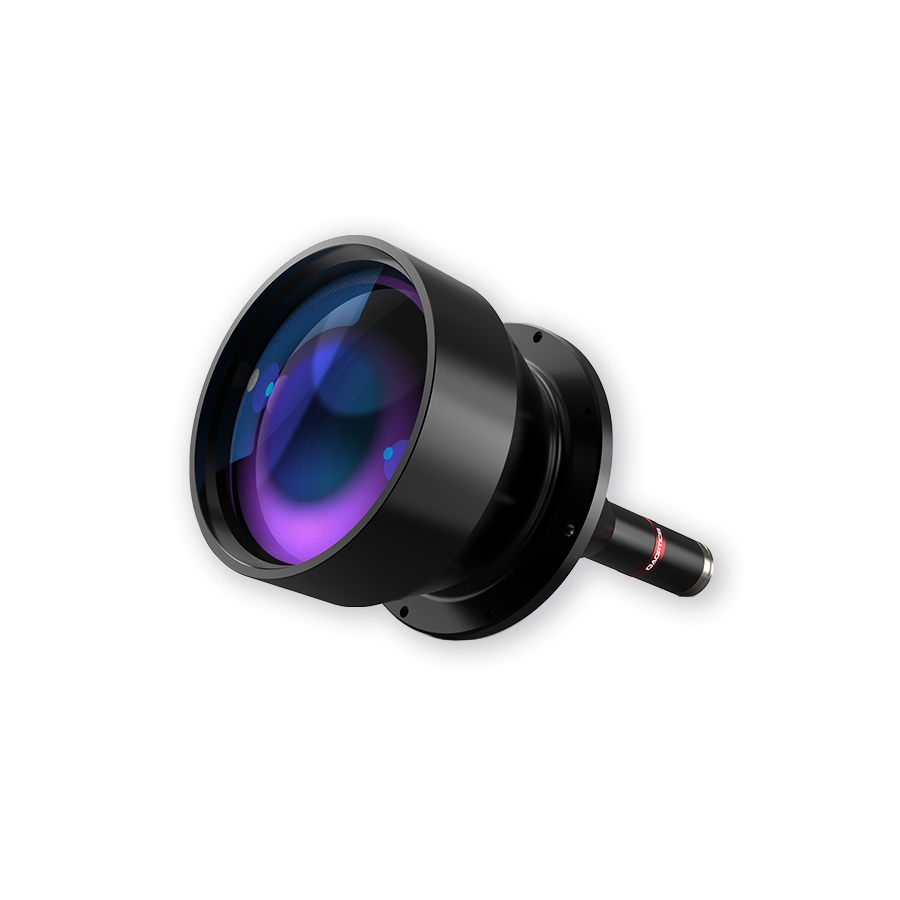

0.255X Working Distance 210mm 1

Price Option

Product No. 610018

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 16mm

FOV 62.7mm

Magnification 0.255X

Working Distance 211mm

Max. sensor size 1

F/# 6.4

Distrotion ＜0.03%

Telecentricity ＜0.06°

DOV ±3.94mm

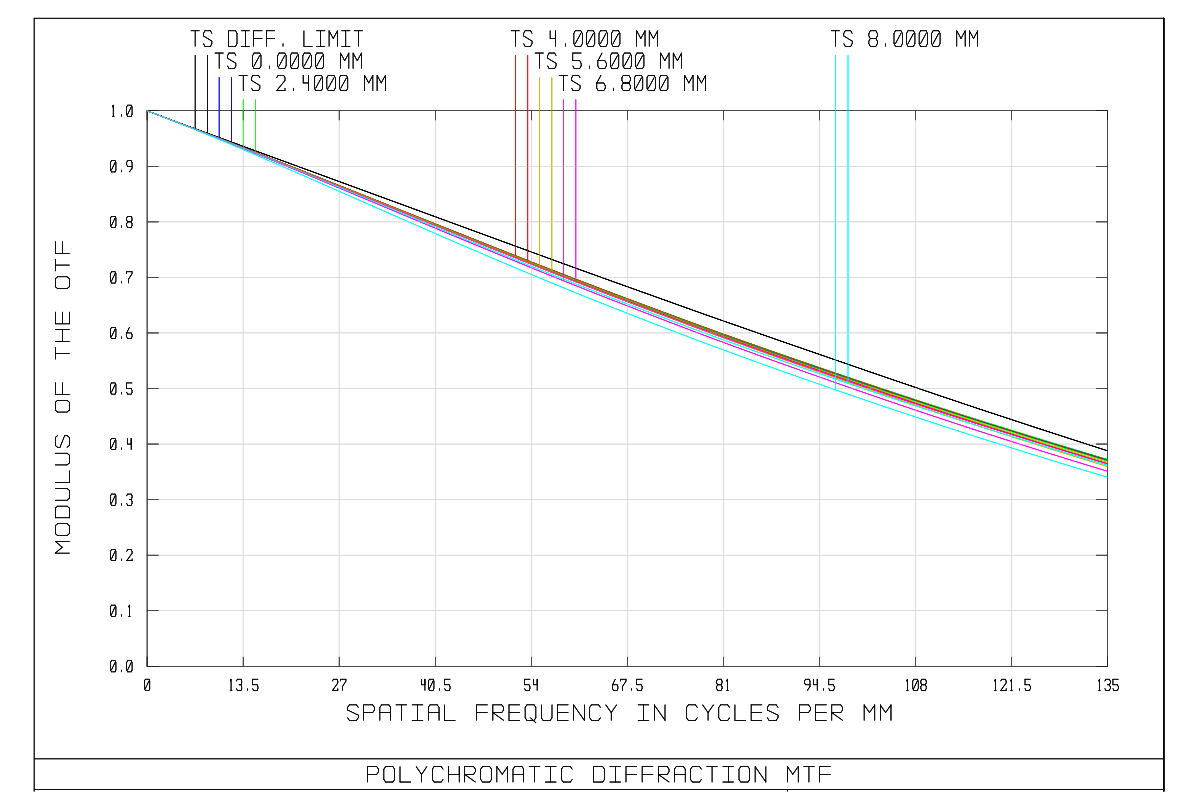

MTF ＞30%@135lp/mm

Illumination Port -

Mount C-Mount

Length 181.9mm

Diameter 87.4mm

Weight 817

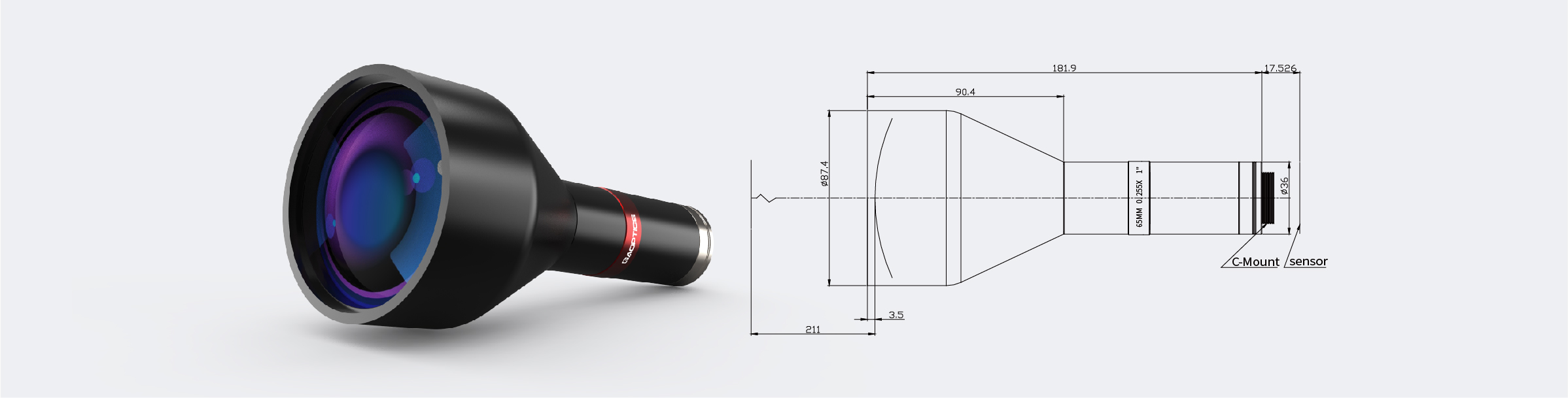

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.255X
3	Working Distance		211.00mm
4	DOV		±3.94mm
5	Telecentricity		＜0.06°
6	Distortion		＜0.03%
7	F/#		F6.4
8	Resolution/MTF @F6.4		＞30%@135lp/mm
9	Max Object Space FOV		Ф62.7mm
10	Max Image Space FOV		Ф16mm
11	FOV （H×V）	1"	50×38mm
		2/3"	35×26mm
		1/1.8"	28×21mm
		1/2.5"	22.7×16.9mm
12	Lens Mount		C-Mount
13	Lens Size（Dia.×Length）		Ф87.4×181.9mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		3.5mm
