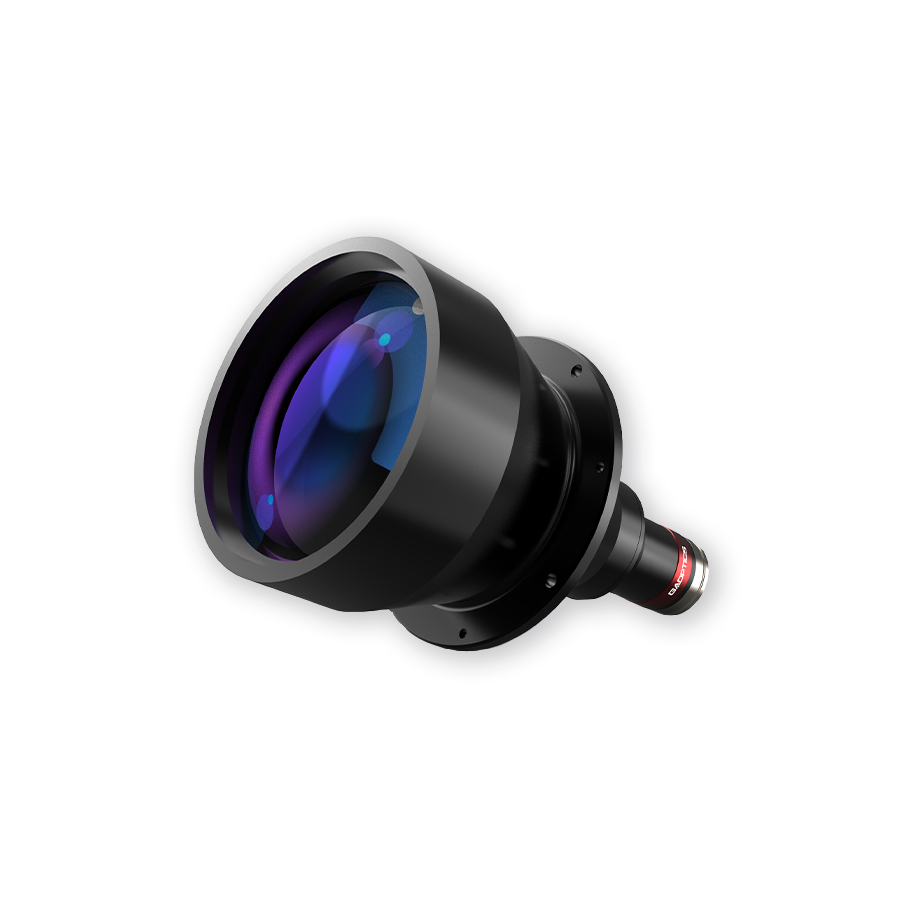

0.072X Working Distance 282mm 1/2.5

Price Option

Product No. 610002

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

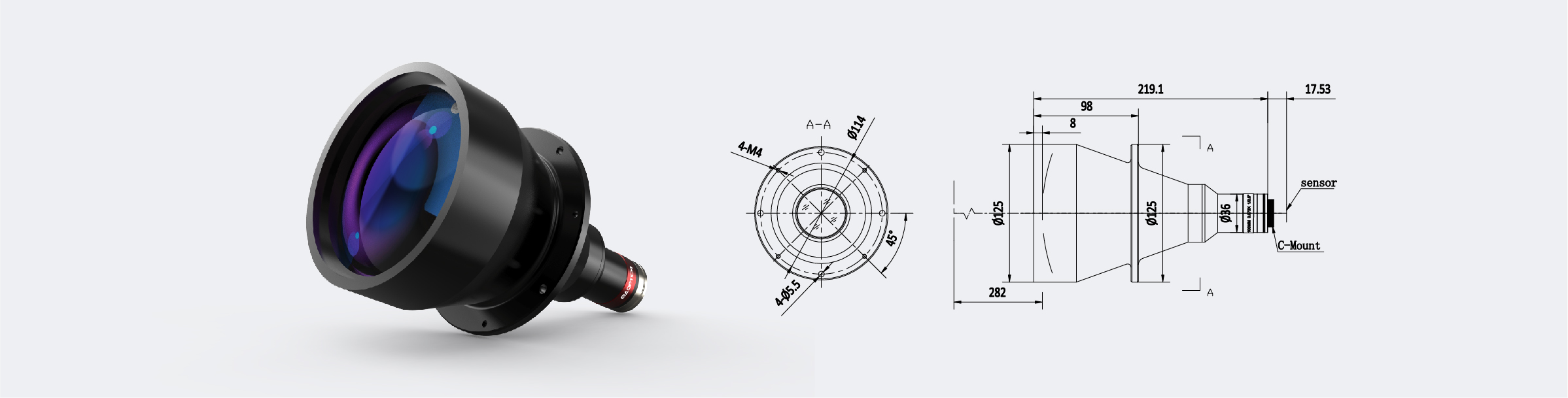

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 7.2mm

FOV 100mm

Magnification 0.072X

Working Distance 282mm

Max. sensor size 1/2.5"

F/# 4.1

Distrotion ＜0.06%

Telecentricity ＜0.05°

DOV ±31.64mm

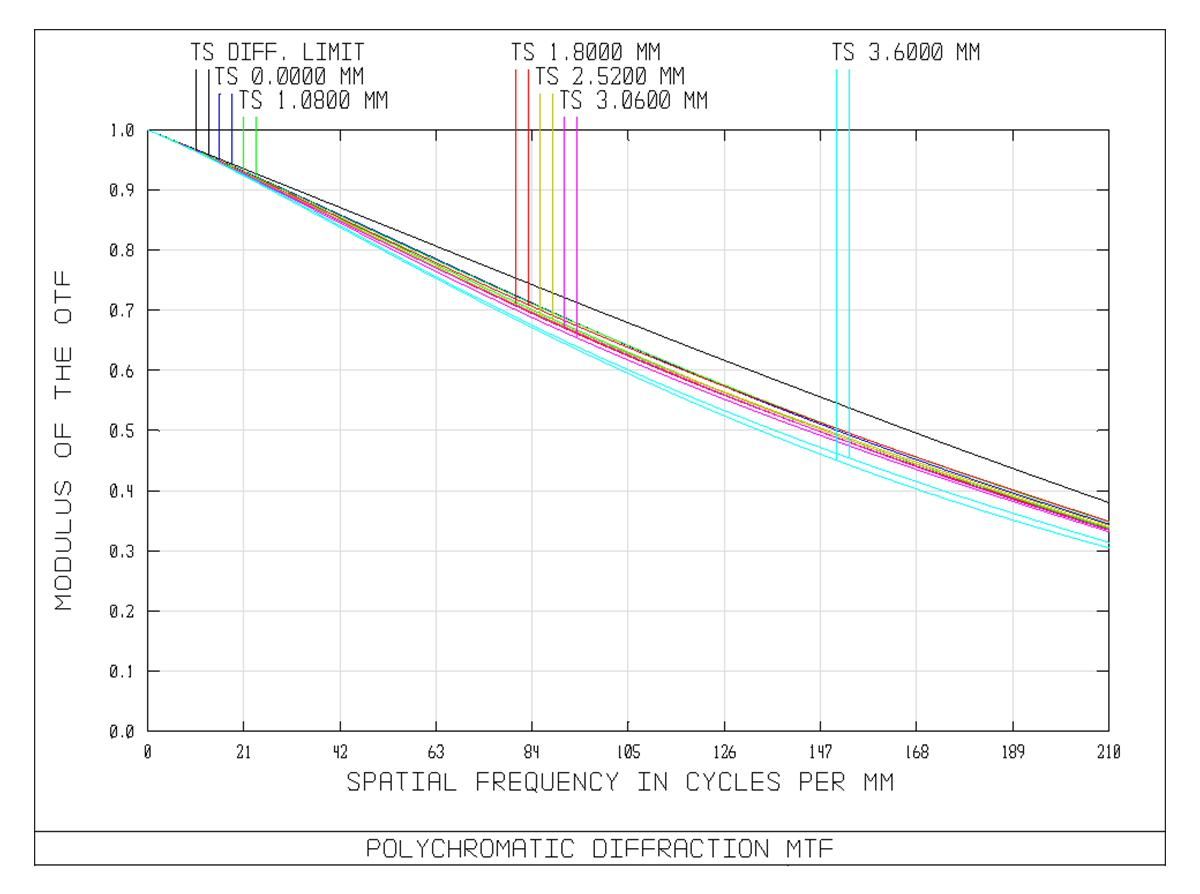

MTF ＞30%@210lp/mm

Illumination Port -

Mount C-Mount

Length 219.1mm

Diameter 125mm

Weight 2256g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.072X
3	Working Distance		282.00mm
4	DOV		±31.64mm
5	Telecentricity		＜0.05°
6	Distortion		＜0.06%
7	F/#		F4.1
8	Resolution/MTF @F4.1		＞30%@210lp/mm
9	Max Object Space FOV		Ф100mm
10	Max Image Space FOV		Ф7.2mm
11	FOV（H×V）	1/2.5"	80.6×59.7mm
12	Lens Mount		C-Mount
13	Lens Size（Dia.×Length）		Ф125.0×219.0mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		8.0mm
